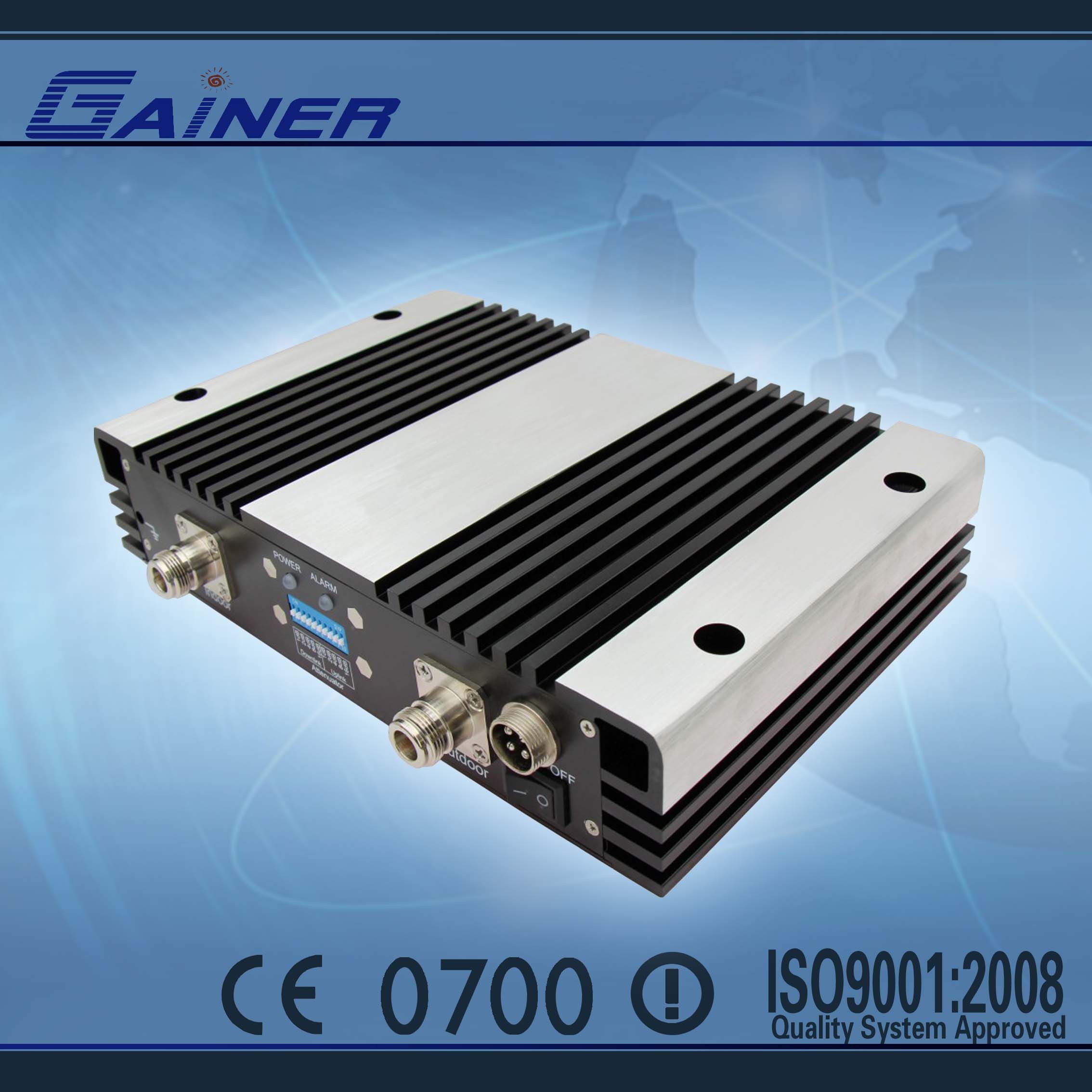

High Quality 30dBm Dcs Single Band Mobile Signal Repeater

Name: High Quality 30dBm Dcs Single Band Mobile Signal Repeater
Brand: china-manufacturer-directory.com
SKU: 726035345
Availability: InStock
Rating: 4.8 (146 reviews)

Supplier:	Gainer International (China) Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	GCPR-D30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Type:	Indoor, Small Size
Technic Advantage:	Alc&Agc
Certificate:	CE RoHS ISO
Lightning Protection:	With Lightning Protection
Certification:	CE
Type:	Wireless Repeater
Transmission Medium:	CAT-5
Condition:	New
Standard:	Standard

Product Description

Features:

1. Elegant and Compact design

2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

3.31dB MGC(Manual gain control) 1dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.

5. Low power consumption - 6W only.

We can make all kinds of frequencies:

Such as for indoor single band intelligent repeater: GSM900, GSM1800, GSM1900M, CDMA, LTE, IDEN, WCDMA2100 etc.

For dualband and tri-band intelligent repeater: GSM900+GSM1800 dualband, GSM900+3G2100M dualband, 900+1800+2100 triband etc.

Outdoor series: Fullband repeater, band selective repeater, frequency selective repeater, frequency shifting repeater etc.

Model Number		GCPR-D30
Electrical specification		Uplink	Downlink
Frequency Range		1710 ~ 1785 MHz	1805 ~ 1880 MHz
Max .Gain		≥ 80dB	≥ 85dB
Max .Output Power		≥ 20dBm	≥ 30dBm
Band width (-3dB)		Wide Band
MGC ( Step Attenuation )		≥ 31dB / 1dB step
Automatic Level Control		≥ 15dB,auto shut off 31dB after 15dB
Gain Flatness		Tpy ≤ 6dB(P-P);
Noise Figure		≤ 6dB
VSWR		≤ 1.8
Group Delay		≤ 1μs
Frequency stability		≤ 0.01ppm
Spurious Emission & Output inter-modulation		GSM Meet ETSI TS 151 026 V6.1.0
		WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
		CDMA Meet IS95 & CDMA2000
CDMA System	Rho	ρ > 0.980
	ACPR	Meet IS95 & CDMA2000
LED Alarm		Standard
Power LED		Green light when power on.
ALC LED		Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB, LED off after 5 second red color
Mechanical Specifications		Standard
I /O Port		N-Female
Impedance		50 ohm
Operating Temperature		-25ºC~+55ºC
Environment Conditions		IP40
Dimensions		250x220x52mm
Weight		≤ 5Kg
Power Supply		Input AC90~264V,output DC12V / 5A
I /O Port		N-Female
Impedance		50 ohm
Operating Temperature		-25ºC~+55ºC
Environment Conditions		IP40
Dimensions		250x125x52mm
Weight		≤ 3Kg
Power Supply		Input AC90~264V,output DC12V / 3A
