High Quality CNC Router Engraving Carving Machine

Product Specifications

Prod Model:	FM-1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Speed:	8000~12000mm/Min
Working Form:	Full-Automatic
Mechanical Accuracy:	<0.03/300mm
Data Transmission:	PC Connect
Spindle Power:	0~24000rpm
Controlling Mode:	CNC
Feed Mode:	Manual
Spindle Number:	Single-Spindle
Spindle Layout:	Spindle Over
Certification:	SGS

Product Description

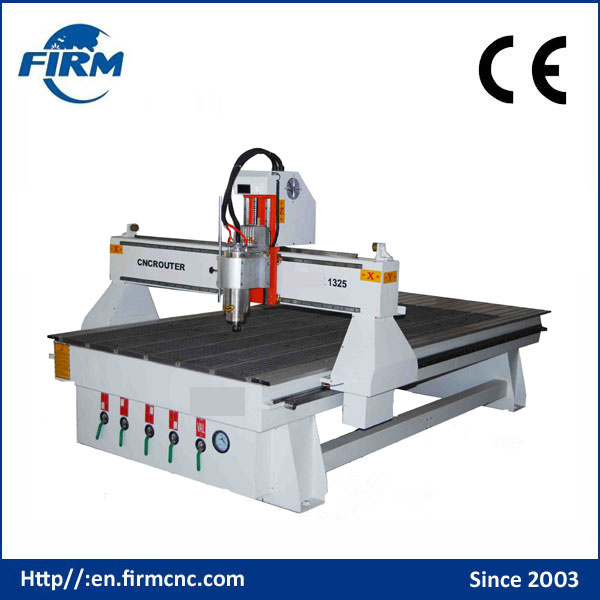

High quality Aluminum Profile Wood CNC Engraving Working Cutting carving Machine

This is one type of wood working machine of Jinan Firm CNC Equipment Co., Ltd. This machine working size is: 1300x2500x200mm, aluminium profile table, has the T-solt, using the material holders to fasten the mould on the table. It can working on the MDF, wood to make the cabinet door, soild wooden door, computer desk, assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting, 3D embossment...

3.0KW Chinese water cooling spindle, we aslo have the HSD air cooling spindle. As your choice. XY gear transmission, Z Taiwan ball screw transmission. Weihong NK105 DSP control system, leadshine stepper motor, or Servo motor driving system, Fuling inverter.
We have vacuum table wood cnc router, 8 pieces of head wood cnc router, ATC cnc router...All kinds of machines are one goal is to service and convenience for the users.

So welcome to contact us when you need wood working machines on the wooden, MDF doors or the furniture...

Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor...So don't hesitate contact us!

Number	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx200mm
2	Table Size	1450mm×2940mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	3KW(Without Spindle)
10	Max. Rapid Travel Rate	33000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3.0/4.5/6/7KW
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60Hz,3Phs (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP System(Options: Ncstudio/Syntec Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25/ER32
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3 Software, (Option: Artcam Software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3300mmX2100mmX2300mm
26	N.W.	1750KG
27	G.W.	1980KG
28	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Dust Collector
		Vacuum Pump
		Rotary System
		Mist-cooling System
		850W Yaskawa/750W Panasonic Servo Motors
