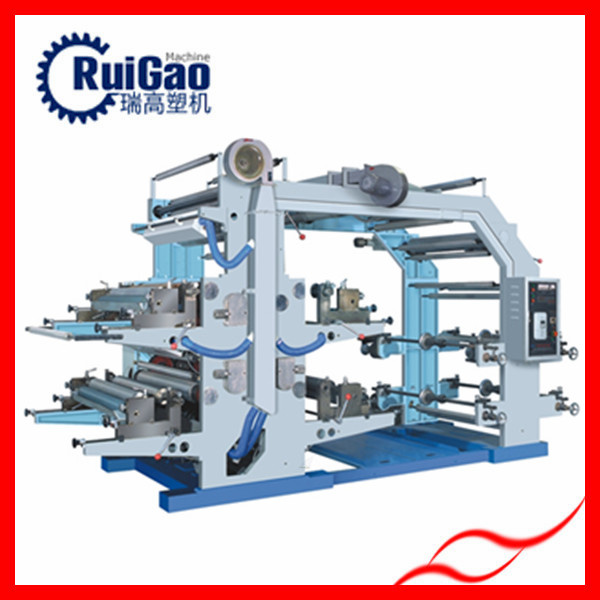

High Quality Four Color Flexo Printing Machine

Name: High Quality Four Color Flexo Printing Machine
Brand: china-manufacturer-directory.com
SKU: 769961105
Availability: InStock
Rating: 4.8 (136 reviews)

Supplier:	Ruigao Machinery Factory
Price:	US $ 10500-13500/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YT4600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Effective Printing Width:	960mm
Max. Web Width:	1000mm
Max. Printing Speed:	80m/Min
Max. Diameter Of Roll Material:	450mm
Accuracy Of Registration:	± 0.5mm
Plate Thickness(Bothside Adhesive Includ:	2.38mm
Total Power:	18kw
Weight Of Machine:	5000kg
Overall Dimension:	5900× 2060× 2950mm
Embossing Structure:	Rotary Letterpress
System Supported:	Vista
Type:	Ink
Plate:	Flexo
Color & Page:	4colors
Printing Interface:	Manual
Printing Speed:	60m/Min

Product Description

1. Machine Introduction

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass

paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,

supermarket handbag, vest bag and clothes bag, etc.

2. Machine Advantages

1. We use stronger steel plate for machine body, which make machine more stable.

2. Helical gear for whole machines, which make the printing quality more accurate and precise.

3. EPC, which adjust the edge of film or paper.

4. Automatic tension controlling, easy to operate.

5. Longer heating oven, improve the printing speed.

6. Doctor blade, which make the ink more equal. Double doctor blade is optional.

7. Separate ink motor to control the ink roller.

8. Ink pump is optional.

3. Machine Parameters

Type	YTH4600	YTH4800	YTH41000	YTH41200
Max.Effective Printing Width	560mm	760mm	960mm	1160mm
Max.Web Width	600mm	800mm	1000mm	1200mm
Max.Printing Speed	50m/min	50m/min	50m/min	50m/min
Max.Mechanical Speed	60 m/min	60 m/min	60 m/min	60 m/min
Max. Diameter of Roll Material	450mm	450mm	450mm	450mm
Internal Diameter of Roll Core	76mm	76mm	76mm	76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm	191-914mm
Accuracy of Registration	±0.5mm	±0.5mm	±0.5mm	±0.5mm
Plate Thickness(Both side adhesive included)	2.38mm	2.38mm	2.38mm	2.38mm
Heating Power	8Kw	9Kw	10Kw	12Kw
Total Power	11.5Kw	15Kw	18.5Kw	22Kw
Weight of Machine	3000kg	3500kg	4000kg	4500kg
Overall Dimension	L4300×W1700×H2500mm	L4300×W1900×H2500mm	L4300×W2100×H2500mm	L4300×W2300×H2500mm

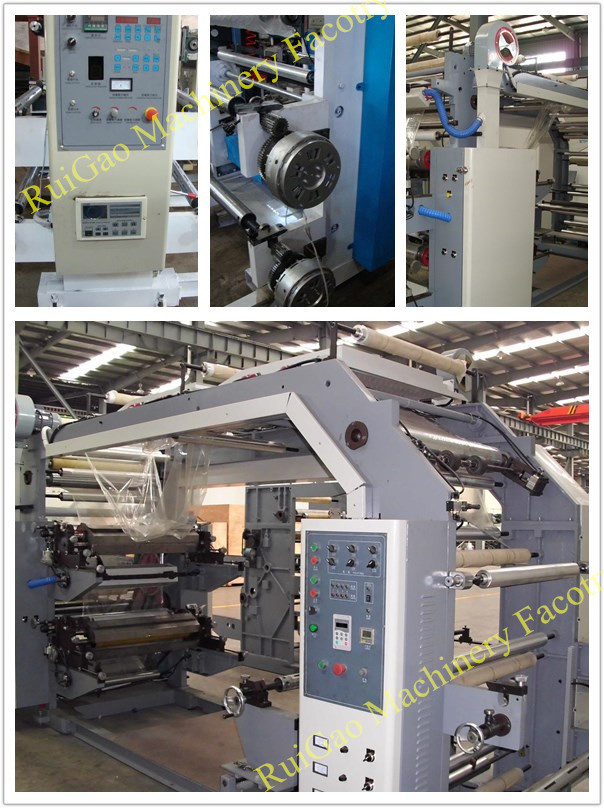

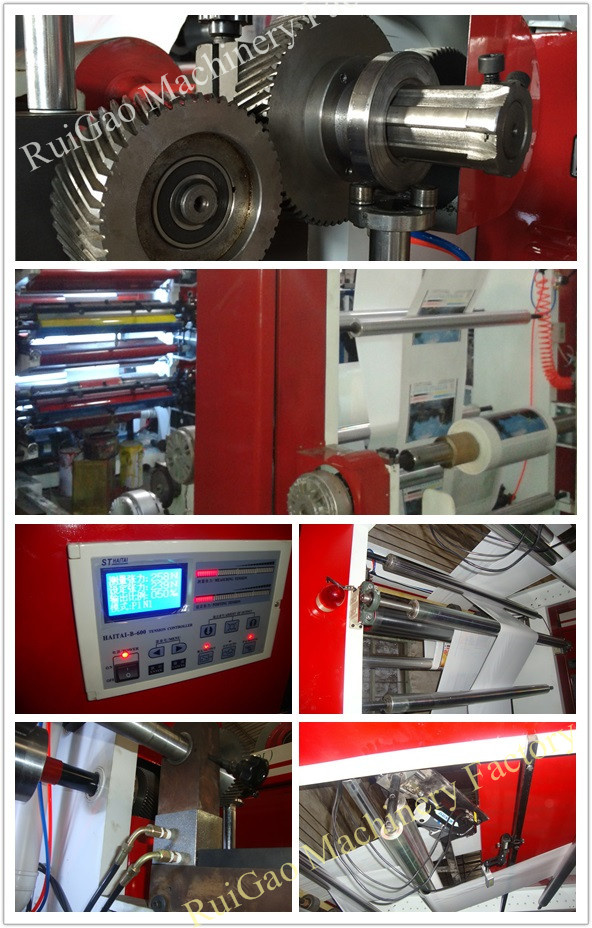

4. Machine Details

Welcome to contact with us. We will provide Excellent Price and High Quality Machine.

Contact: Mr. Deng Tim
Phone : +86-135 8758 1245

Ruian Ruigao Machinery Factory is located in the south of zhejiang. We are a professional producer of film blowing machines, bag making machines, printing machines, Plastic recycling machine and other plastic machines.

We have a good work-team integrating R&D, design and sale. Our engineers have more ten years of experience in plastic industry. The entire staff members work hard under the mission of "quality, innovation and development". Through our effort, we have won a good reputation among clients.

Our markets are America, Africa, the Middle East and southeast Asia. More than 98% of our products are exported to overseas markets. We also provide good after-sales service. We have a professional service team.

We have more than 9 years exporting experience for our plastic film blowing machine, shopping bag making machine, printing machine and plastic recycling machine. These experiences help us to improve our machine quality, and produce better quality machines for our customer. It keep very good relationship.

Each years, we exported about $1, 580, 000 amout. We believe we can do bigger and better.

Good Quality, Excellent Service is our advantage. We improved our machines quality each year with customer together, Especically with our agents. For us we provide professional service to help customer deal with the problems of machines. We have professional engineer can go abroad to install machine and operate machines.

Welcome all over world customer visit our factory. And keep good memory for machines
