Supplier: | Ruigao Machinery Factory |
---|---|
Price: | US $ 14500-16500/Set |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | YTH4600 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Effective Printing Width: | 960mm |
Max. Web Width: | 1000mm |
Max. Printing Speed: | 80m/Min |
Max. Diameter Of Roll Material: | 450mm |
Accuracy Of Registration: | ± 0.5mm |
Plate Thickness(Bothside Adhesive Includ: | 2.38mm |
Total Power: | 18kw |
Weight Of Machine: | 5000kg |
Overall Dimension: | 5900× 2060× 2950mm |
Embossing Structure: | Rotary Letterpress |
System Supported: | Vista |
Type: | Ink |
Plate: | Flexo |
Color & Page: | 4colors |
Printing Interface: | Manual |
Printing Speed: | 80m/Min |

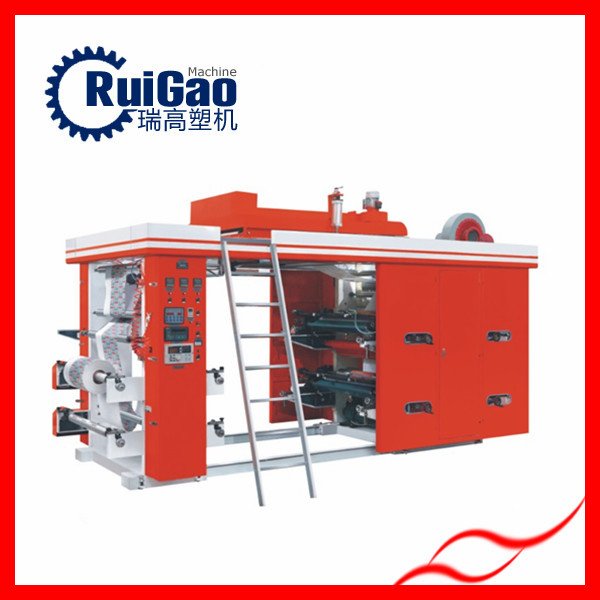

1. Machine Introduction
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
2. Machine Advantages
1. We use stronger steel plate for machine body, which make machine more stable.
2. Helical gear for whole machines, which make the printing quality more accurate and precise.
3. EPC, which adjust the edge of film or paper.
4. Automatic tension controlling, easy to operate.
5. Longer heating oven, improve the printing speed.
6. Doctor blade, which make the ink more equal. Double doctor blade is optional.
7. Separate ink motor to control the ink roller.
8. Ink pump is optional.
3. Machine Parameters
Type | YTH4600 | YTH4800 | YTH41000 | YTH41200 |
Max.Effective Printing Width | 560mm | 760mm | 960mm | 1160mm |
Max.Web Width | 600mm | 800mm | 1000mm | 1200mm |
Max.Printing Speed | 50m/min | 50m/min | 50m/min | 50m/min |
Max.Mechanical Speed | 80 m/min | 80 m/min | 80 m/min | 80 m/min |
Max. Diameter of Roll Material | 450mm | 450mm | 450mm | 450mm |
Internal Diameter of Roll Core | 76mm | 76mm | 76mm | 76mm |
Rang of Repeat Printing Length | 191-914mm | 191-914mm | 191-914mm | 191-914mm |
Accuracy of Registration | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
Plate Thickness(Both side adhesive included) | 2.38mm | 2.38mm | 2.38mm | 2.38mm |
Heating Power | 8Kw | 9Kw | 10Kw | 12Kw |
Total Power | 11.5Kw | 15Kw | 18.5Kw | 22Kw |
Weight of Machine | 3000kg | 3500kg | 4000kg | 4500kg |
Overall Dimension | L4300×W1700×H2500mm | L4300×W1900×H2500mm | L4300×W2100×H2500mm | L4300×W2300×H2500mm |

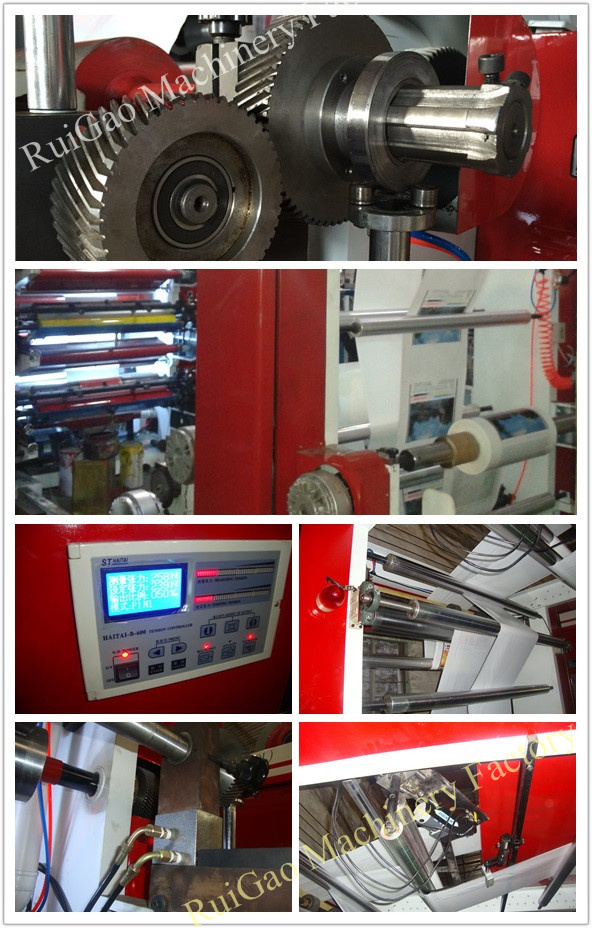

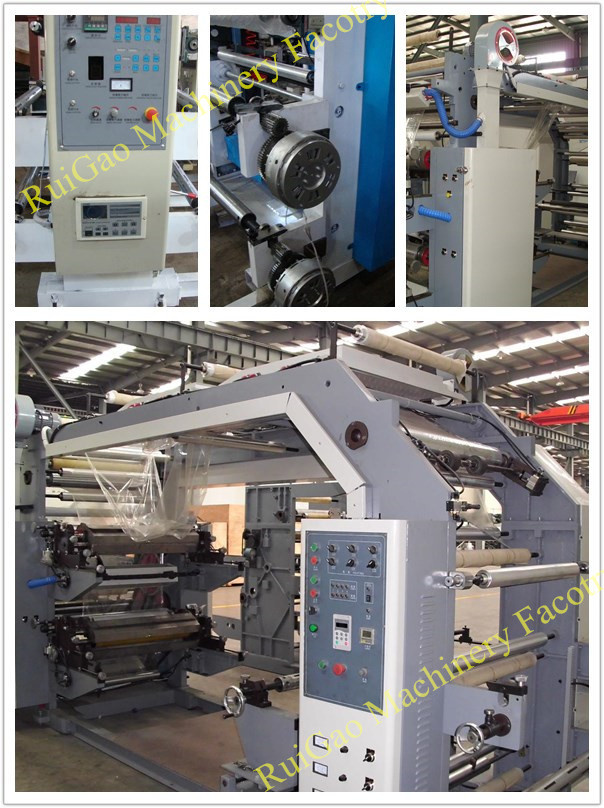

4. Machine Details
Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
Contact: Mr. Deng Tim
Phone : +86-135 8758 1245
