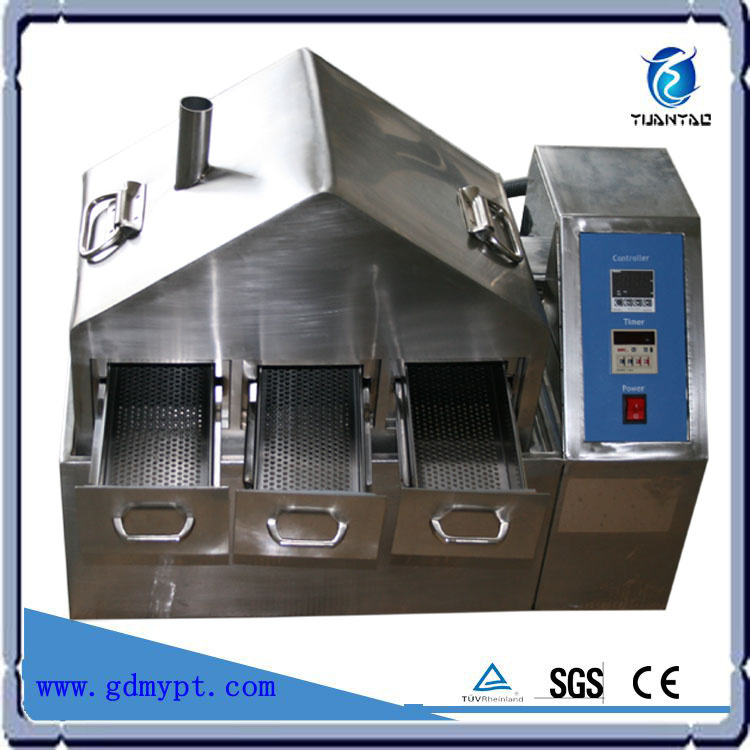

High quality good price YSA-4 steam aging test instrument
Specification
1 Mircocomputer controller
2 Reverse osmosis water purifier
3 SUS#304 stainless steel
4 Heat-up time: 45min
5 Controller: SSR+PID
6 Insulation: PU&fiberglass wool
Description
Steam aging test instrument is used to test and determine the parameters, performance of electrical, electronics, other products and materials for high temperature, low temperature, or the temperature of the thermostat test environmental changes. It is also used in electronic connector, semiconductor IC, transistors, diodes, LCD LCD, chip resistance capacitance and components industry electronic components metal pin wetting resistance test before the aging accelerated life time test; Semiconductor and passive components, parts pin oxidation test.
Feature
1 Made of SUS#304 stainless steel plate.
2 Controlled by microcomputer digital LED.
3 Having time planning function.
4 Having safety device, including multi over-temperature protection and power off when out of water.
5 Testing high temperature/high humidity to spare pares, components.
6 Digital electronic indicators + S. S. R with PID automatic calaulation capabilitty.
7 Have time planning function, the maximum setting is 9990 minutes
| Model | YSA-3 | YSA-4 |
| Test basket.W×H×D(mm) | 100×540×260,3Sets | 100×540×260,4Sets |
| External Dim.W×H×D(mm) | 610×540×340 | 760×540×340 |
| Performance | Temp.Range | R.T+10°C ~ +98°C |
| Temp.Constancy | ±0.3°C |
| Temp.Resolution | ±0.1°C |
| Heat-up(min) | 45 |
| Material | Exterior | SUS#304 stainless steel piate |
| Interior | SUS#304 stainless steel piate |
| Insulation | PU & Fiberglass wool |
| Systems | Heating | Chrome Steel Strip Wire Heater |
| Controller | Digital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990mins |
| Safety Devices | Overheating prevention pretector,
Water shortage protector, steam outlet hole, no fuse breaker |
|
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz |
| 1.1 | 2.5 |
Except steam aging test chamber, Dongguan YuanYao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Vibration Tester, Tensile Tester, Drop Tester and so on
If you want to konw more about the product, please feel free to contact me soon.
