It is widely applied to many industries,such as rubber machinery,mine machinery, textile machinery,chemical machinery ,automobile manufacturing, tire mould machinery and so on.
Our main products: heavy duty face lathes, horizontal lathes ,combination lathes, CNC lathes, vertical machines, face milling machines, milling machines ,etc.

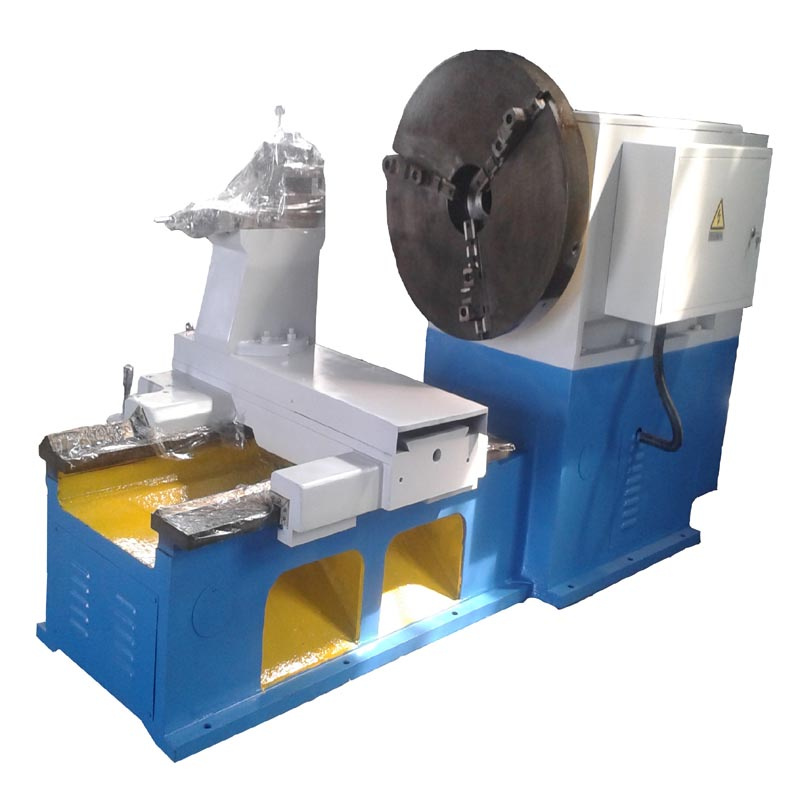

This lathe is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
This lathe is reasonable in structure and strong in rigidity with large power and good stability, and what's more, it's beautiful in appearance and easy for operation, really the ideal product for processing all kinds of large-diameter workpieces.
The feed system of this lathe adopts frequency control motor to realize the stepless speed regulation. This makes the choice of feed rate more convenient.
Specifications:
| Item | ST-CW61125 | Unit |
| Max. swing diameter of workpiece | 1250 | mm |
| Max.swing diameter over slide carriage | 1000 | mm |
| Max.the travel of tool post (cross) | 650 | mm |
| Max. travel of tool post(longitudinal) | 2000 | mm |
| Max. length of workpiece | 550 | mm |
| Max. weight of workpiece | 2000 | kg |
| Chuck diameter | 800 | mm |
| Giudeway width | 760 | mm |
| Spindle diameter | 190 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 23~180 | r/min |
| Power of main motor | 11 | KW |
| Taper type of tailstock quill | morse taper 6 |
|
| Automatic tool post | 240 | mm |
| Safety cover | 1 | set |
| Machine power supply | 380v,50HZ,3P |
| Overall dimensions | 3500×1650×1700 | mm |
| Lathe weight | about 5 | t |
Standard configuration:1 headstock,1 bed and 1slide carriage, 1 piece of chuckΦ800mm equip with 4 steel jaws,
1 tailstock, 2 chuck wrenches.1 main motor. |
| Optional Configuration:1 piece of chuck Φ1000mm,1 main motor(6 level 11kw),1 lengthening bed. |
| Specific Notice: Customers can customize the lathes according to their workpieces.(Based on changing configuration). |
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
