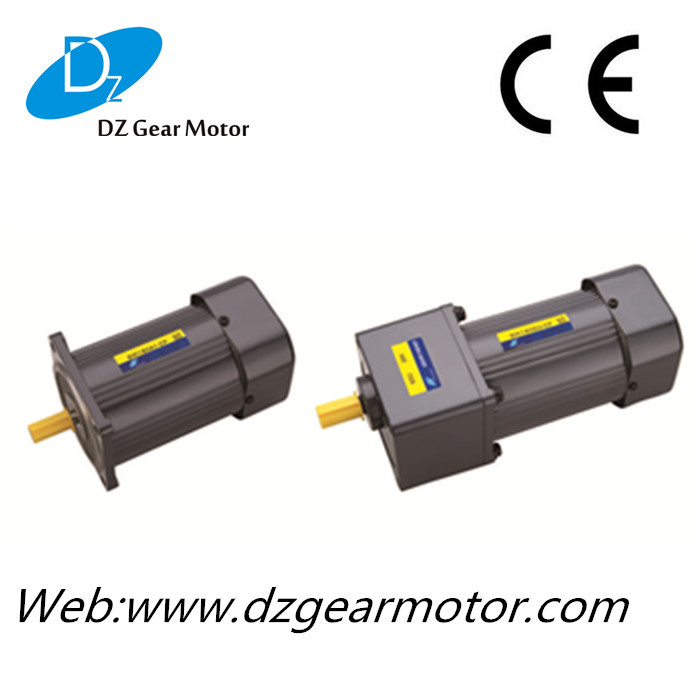

Fetures:
Motor power: 180w, Single-phase,three phase, 110V,220V,380V, 50/60HZ, 4Poles, 2Poles, continuous running, with fan .
Reduction ratio 1:60, Output shaft speed: 16rpm(50hz), 20rpm(60hz), Allowable torque : 400kgf.cm(50hz), 400kgf.cm(60hz) .
Specification :
Model | Output | Voltage | Frequency | Poles | Duty | Rated | Starting torque | Capacitor/Ve |
Speed | Current | Torque |
Motor | Motor with gear shaft | w | v | hz | P |
| RPM | A | N.m | kgf.cm | N.m | kgf.cm | uf/VAC |
6IK180A-AF | 6IK180GU-AF | 180 | 1ph,110v | 50 | 4 | CONT | 1350 | 2.3 | 1.25 | 12.5 | 1.2 | 12 | 35.0/250 |
6IK180A-CF | 6IK180GU-CF | 180 | 1ph,220v | 50 | 4 | CONT | 1350 | 1.17 | 1.25 | 12.5 | 1.2 | 12 | 12.0/500 |
6IK180A-SF | 6IK180GU-SF | 180 | 3ph,220v | 50 | 4 | CONT | 1350 | 0.95 | 1.25 | 12.5 | 4.6 | 46 | / |
6IK180A-S3F | 6IK180GU-S3F | 180 | 3ph,380v | 50 | 4 | CONT | 1350 | 0.55 | 1.25 | 12.5 | 4.6 | 46 | / |
6IK180A-DF |
| 180 | 1ph,220v | 50 | 2 | CONT | 2800 | 0.88 | 0.45 | 4.5 | 0.44 | 4.4 | 12.0/500 |
These are our standard design, the special design can be customized .
Packing and delivery:
1) Packing : 1PC/Plastic Bag/Innbox Box, Several Boxes/Carton
2) Delivery : Within 15 working days upon receipt of downpayment
Service:
Warranty period for one year, we have the professional technical team to give you the suggestions and help you to solve any trouble.
If you have any demand, please feel free to contact us .
Application :
Widely used in packing machine, food machine, textile machine, transportation machine, printing machine and so on .
Shanghai Dongzhan Drive Industry Co., Ltd., is a professional manufacturer of Micro AC/DC gear motor, Small-size AC gear motor and Gear reducer, company have professional R & D team and experienced production-related sectors and can provide high accuracy product to meet the needs from different customer. Product be used in tool machines, industrial robots, semiconductor devices, aircraft industrial, medical and rehabilitation equipment, green energy-related industries, testing equipment, food machinery, packaging machinery and agricultural equipment.
At present, we have more than 80 workers with annual production capacity of 400, 000PCS for all kinds of gear motor, products has shipped to Switzerland, Italy, Spain, Poland, Czech, Korea, India, Thailand, Iran, Brazil and Colombia etc., they were well accepted by local market and keeps repeat order every year.
Company adhere to "QUALITY FIRST, FASTEST DELIVERY AND BEST SALE SERVICE", welcome OEM order and hope we can work with you in future.
