Product Specifications
| Prod Model: |
GTAT-1006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product description

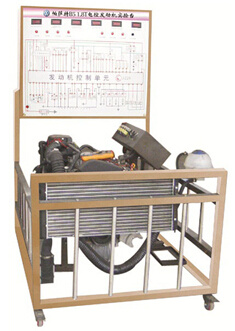

The Passat B5 1.8T electronically controlled engine system trainer for vocational schools uses Toyota 8A electronically controlled engine, and dynamically displays the different working conditions of the engine. It can be applied to the automotive engine construction and maintenance training in vocational and technical schools and automotive training institutions practice teaching. It can also meet the needs of teaching in the structure of the electronically controlled gasoline engine, the working principle, and the fault setting and diagnosis.
Structure and composition
Toyota 8A engine assembly, engine control unit, combination of the instruments, battery, fuel tank, Diagnosis seat, fuel pressure gauge, vacuum pressure gauge, cooling system, engine computer pin corresponding signal detection zone, fault set and troubleshooting system, removable stand, computer high-precision inkjet color principle Figure panel, operation manual and experiment guide books.
Features:
1. The engine is working properly and smoothly. It can truly show the structure and the working process of the EFI gasoline engine.
2. The pressure gauge installed on the laboratory bench panel shows the fuel gauge
3. The digital meter shows the voltage change of each sensor.
4. The vacuum pressure gauge installed on the laboratory bench panel shows the intake vacuum pressure
5. The injector pulse and a throttle opening degree of change value are displayed clearly by the LED lamps.
6. Laboratory bench panel is inkjet complete electronic control system schematics and detection terminal. Various sensors, actuators, and other signal parameters, voltage, resistance, frequency, etc. Can be detected by instruments
7. Diagnostic block installed on the bench can be connected to a dedicated or universal auto decoder. And engine self-diagnostic functions like reading fault codes from the engine electronic control system, clearing fault code and reading data stream.
8. Fault setting function: Multifunction switch, intelligent integration system or intelligent fault set appraisal system can be set according to the user optional manual fault to test the equipment. ( equipped with a communication interface and network interface )
9. After setting the fault, the participant can use the dedicated instrumentation to check out the location and content of the set point of failure through the fault troubleshooting exercises.
10. Optional functions
This optional feature is the use of PLC or microcontroller program control to form a network system, can achieve a master control multiple simultaneous connections students test terminal (The student machine is made with an experimental box. ) Each student terminal has the same control circuit diagram and the same detection point with the experimental station control panel. When the master laboratory bench set fault, the student end can also detect the same fault.
11. Other models can be made according to customer's requirement.
Production technology
1. Nylon casters: Diameter of 75mm, width 35mm, with locking casters to mobile devices, and it moves freely, and facilitates teaching
2. Panel process: Aluminum panel with surface oxidation painting and UV Flatbed high true color schematic. It is durable and nice.
3. Quality steel; 40x80x3.0 steel
4. Safety fence: 3.0 stainless steel , 6CM punching board
5. Stainless steel rails with square and round
6. The whole experiment station is divided into two parts, easy to transportation and device migration.
7. Supporting material 50x50x3mm
8. Detection terminal 6mm stainless steel terminal.
9.6mm LED indicator
10. Dimensions: 1500x1000x1800mm
11. Maintenance intervals: 90 days
