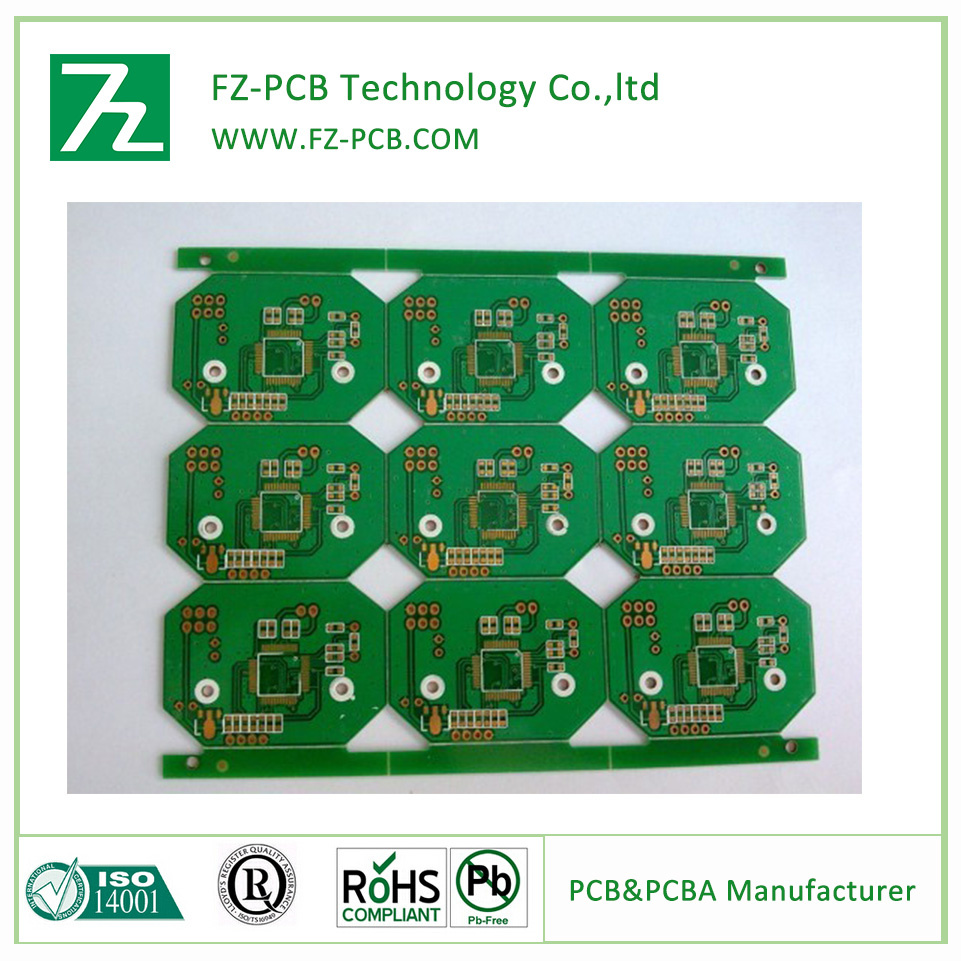

Product Specifications
Prod Model: |
pcb, pcbs, pcb board, circuit board |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Surface Finish: |
Enig, Immersion Silver, HASL, OSP, Gold Finger |
Special Process: |
Epoxy Resin, Laser Drill, Blind/Bury Holes |
Board Thickness: |
0.2~3.2mm |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V0 |
Product Description
FZ-PCB Company Profile
Prototypes to mass production, help review gerber, design stackup and provide technology support
High technology 1~16layers PCBs from 0.2~3.2mm thickness with 0.3~4.0oz copper thickness
FR4, FR4(TG130, 150, 170), FR1, CEM-1, CEM3, Aluminum based, HF (Rogers, Teflon)
HDI and Sequential Lamination
Flexible, Flex-rigid and Rigid PCBs
RoHS/UL, ISO9001: 2008 & ISO/TS16949: 2009
Turnover USD$60 Million (2012-2013)
Established in 2002
Privately owned company
32000 Square meter Facility
Nearly 1000 Employees
62500 Square meter Monthly output
What will you get from FZ-PCB
Reliable and stable quality with more than 12 years pcb manufacturing experience.
Quick response & 24 hours available service.
Professional sales service & advice.
Fulfillment of our promises, NO lies.
Protecting your Intellectual property. All our staff of trained professionals are working under a strict confidential contract.
Assisting in reviewing design gerber, provide technology support, improve work efficiency.
Delivery Timescales
Sample
Single layer 4days
Double Side 4-6days
4 ~ 6 layers 8-10days
Above 8 layers 10-14days
Aluminum PCB 7-10days
Flexible PCB 10-14days
* Urgent Routing sample could be pushed 2-3 days earlier with premium.
Mass Production
Single layer standard 10 days
Double Side standard 12days
4~6 layers standard 15days
Above 8 layers standard 18days
Aluminum PCB standard 15days
Flexible PCB standard 18days
L Material availability dependant.
Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
Payment method
1. T/T
2. Paypal
3. Western Union
Files |
Gerber, Protel, Powerpcb, Autocad, Orcad, etc |
Material |
FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide. |
Layer No. |
1 - 16 Layers |
Board thickness |
0.0075"(0.2mm)-0.125"(3.2mm) |
Board Thickness Tolerance |
±10% |
Copper thickness |
0.3OZ - 6OZ |
Impedance Control |
±10% |
Warp and Twist |
≤0.075% |
Peel Strength |
≥61B/in(≥107g/mm) |
Min Trace Width (a) |
3mil |
Min Space Width (b) |
3mil |
Min Annular Ring |
0.004"(0.1mm) |
SMD Pitch (a) |
0.012"(0.3mm) |
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) |
0.027"(0.675mm) |
Register tolerance |
0.05mm |
Min Solder Mask Dam (a) |
0.005"(0.125mm) |
Solder mask Clearance (b) |
0.005"(0.125mm) |
Min SMT Pad spacing (c) |
0.004"(0.1mm) |
Solder Mask Thickness |
0.0007"(0.018mm) |
Hole size |
0.008"(0.20mm)-- 0.257"(6.5mm) |
Hole Size Tol (+/-) |
±0.003"(±0.0762mm) |
Max PTH Aspect Ratio |
10:1 |
Hole Registration |
0.003"(0.075mm) |
HASL |
2.5um |
Lead free HASL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-3u'' |
OSP |
0.2-0.5um |
Panel Outline Tol (+/-) |
±0.004''(±0.1mm) |
Beveling |
30°45° |
V-cut |
15° 30° 45° 60° |
Surface finish |
HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
Certificate |
ROHS ISO9001 TS16949 SGS UL |
Special requirements |
Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger |
FZ-PCB is one of Asia' S leading full-service PCB to PCBA solution providers. Established in the year 2002, mainly provide the high-level quality PCB board and PCB assembly service to our customer which are the leading companies in the telecommunication, LED, medical treatment, aviation, instrumentation, micro-electronics and automated-control area. Our achievements are recognized through our customers' Success, industry and customer recognition, and continuous quality improvement.
