High Quality Temperature Controlled Solder Stations Soldering Station Fx-888d

Name: High Quality Temperature Controlled Solder Stations Soldering Station Fx-888d
Brand: china-manufacturer-directory.com
SKU: 762227855
Availability: InStock
Rating: 4.3 (66 reviews)

Supplier:	Shenzhen Kingsom Technology Co., Ltd.
Price:	US $ 100-120/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	FX-888D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	4.9kg
Opitional Tips:	500 Series

Product Description

Performance

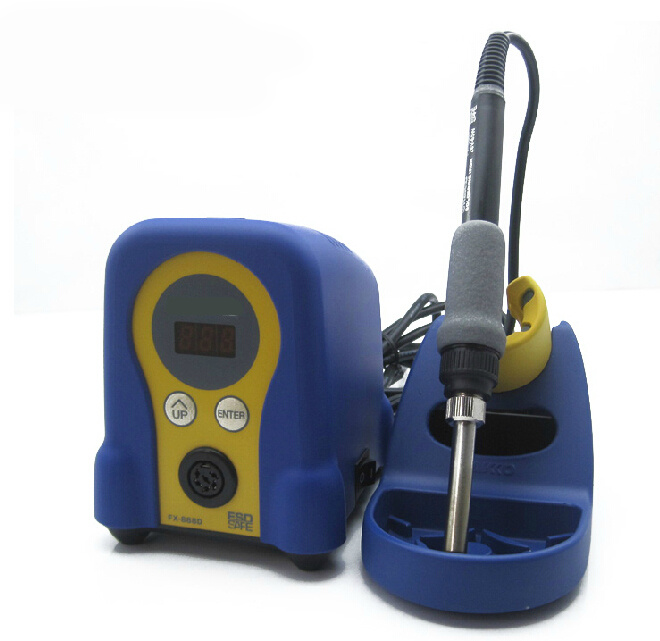

FX-888D Soldering Station is an inexpensive yet durable temperature adjustable soldering station that provides more power and takes up less bench space than its predecessor (936).

The added power of the FX-888 provides up to a 30% increase in operator productivity due to the increased thermal performance and faster thermal recovery time. Today, workbench space is at a premium, and the FX-888 uses approximately 35% less surface area compared to the936.

Other features for FX-888D Soldering Station include:

？ adjustable temperature control with lock/set screw

？ temperature range 392°-896°F (200°- 480°C)

？ maintains idle temperature within 1.8°F (1°C)

？ ceramic heating element and sensor ensures rapid heat-up temperature and fast thermal recovery

？ Celsius and Fahrenheit temperature display

？ temperature adjusted by simply turning the dial

？ slender iron handles are padded and have an ergonomic design for comfort and ease of use

？ wide selection of tips available for soldering SMD and through-hole applications

Specification for FX-888D Soldering Station

Model Name	FX-888D
Part Number	FX888-23BY
Power Consumption	70W / (120V,220V)

STATION

Temperature	200°C - 480°C (392°F - 896°F)
Temperature Stability	±1.0°C (1.8°F)
Temperature Control	Closed-loop sensor
Outer Dimensions	100(W) x 120(H) x 130(D) mm 3.9(W) x 4.7(H) x 5.1(D) in.
Weight (w/o cord)	Approx. 1.3 kg (2.9 lbs)
ESD Safe	Yes
APPROVED

SOLDERING IRON

Model Name	FX-888D
Part Number	FX888D
Power Consumption	65W / 26VAC
Standard Tip	T18-D16
Tip-to-Ground Resistance	< 2 ohms
Tip-to-Ground Potential	< 2mV
Heating Element	Ceramic
Hand piece Length	190mm (7.5 in.)
Cord Length	1.2m (4 ft.)
Weight (w/o cord)	44g (0.09 lb)
