Product Specifications
| Prod Model: |
FX-888D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Name: |
Fx-888d |
| Power Consumption: |
70W / (120V, 220V) |
| Temperature: |
200°c - 480°c (392°f - 896°f) |
| Temperature Stability: |
±1.0°c (1.8°f) |
| Temperature Control: |
Closed-Loop Sensor |
| Tip-to-Ground Resistance: |
< 2 Ohms |
| Tip-to-Ground Potential: |
< 2mv |
| Heating Element: |
Ceramic |
Product Description
Performance

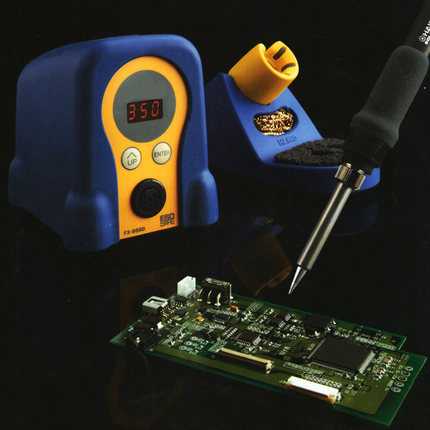

FX-888D Soldering Station is an inexpensive yet durable temperature adjustable soldering station that provides more power and takes up less bench space than its predecessor (936).
The added power of the FX-888 provides up to a 30% increase in operator productivity due to the increased thermal performance and faster thermal recovery time. Today, workbench space is at a premium, and the FX-888 uses approximately 35% less surface area compared to the936.
Other features for FX-888D Soldering Station include:
? adjustable temperature control with lock/set screw
? temperature range 392°-896°F (200°- 480°C)
? maintains idle temperature within 1.8°F (1°C)
? ceramic heating element and sensor ensures rapid heat-up temperature and fast thermal recovery
? Celsius and Fahrenheit temperature display
? temperature adjusted by simply turning the dial
? slender iron handles are padded and have an ergonomic design for comfort and ease of use
? wide selection of tips available for soldering SMD and through-hole applications
Specification for FX-888D Soldering Station
Model Name |
FX-888D |
Part Number |
FX888-23BY |
Power Consumption |
70W / (120V,220V) |
| Temperature | 200°C - 480°C (392°F - 896°F) |
| Temperature Stability | ±1.0°C (1.8°F) |
| Temperature Control | Closed-loop sensor |
Outer Dimensions |
100(W) x 120(H) x 130(D) mm
3.9(W) x 4.7(H) x 5.1(D) in. |
| Weight (w/o cord) | Approx. 1.3 kg (2.9 lbs) |
| ESD Safe | Yes |
| APPROVED | |
| Model Name | FX-888D |
| Part Number | FX888D |
| Power Consumption | 65W / 26VAC |
| Standard Tip | T18-D16 |
| Tip-to-Ground Resistance | < 2 ohms |
| Tip-to-Ground Potential | < 2mV |
| Heating Element | Ceramic |
| Hand piece Length | 190mm (7.5 in.) |
| Cord Length | 1.2m (4 ft.) |
| Weight (w/o cord) | 44g (0.09 lb)
|
How to order?
1. Please let us know what kind of model,colour and quantity you need via trademanager/email/skype
Attn:Ada
Phone number:86(0)15013227914
2. We make invoice and packing list for you.
3. Please check and confirm the Invoice.
4.Once we confirmed the order,please pay it soon.
5. After payment , all goods will be sent to you within 7 working days as usual.
