High Quality Touch Screen Computer

Product Specifications

Prod Model:	HV65K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	65 Inch
USB:	2 USB Hub
LED Brand:	Cmo Import From Taiwan
Resolution:	1920*1080P
Touch Objects:	Finger, Pen, Mouse and Other Opaque Object
Touch Frame:	Detachable
Touch Point:	Multi Touch, 10 Touch
Operation Systerm:	Windows 8, Windows 7, XP, Mac, Linux, Android
Sound Output:	2X10W
USB System Upgrading Online:	Support USB Online Upgrading Function
Screen Size:	>60 Inches
Aspect Ratio:	16:9
Application:	Education and Training System
Screen Type:	Infrared
Customized:	Customized

Product Description

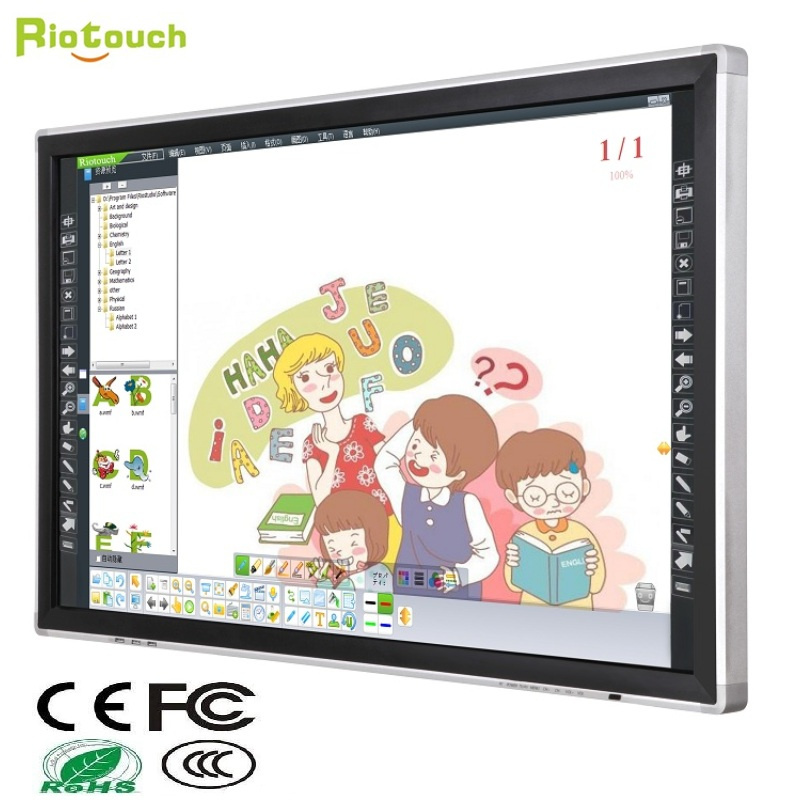

high quality touch screen computer


65" multi touch monitor is an interactive TV, it built-in with LED and touch screen (and PC for optional). We use the most popular technology infrared touch and the most popular PC -OPS to meet different demands , make the goods more convient . We also use the front touch screen frame ,easy for maintain and after-sales .



Specifications
Infrared Touch Technology
Interactive Whiteboard Solution
Finger or pen touch and write by other opaque object
Multi touch  (1-32 points touch )
Without projector all in one touch monitor
Win7&8 32bit and 64bit multi-touch, Mac system
Support Microsoft surface
Sumsung or LG or Sharp LED
OPS (PC)

Riotouch 65" LED Touch Monitor Specification
Model		Rio-HV65
Image:
LCD Parameters	Size	65"
	LCD Brand	AUO
Packing Parameters	External Size	1558*928*95.9mm
	Touch Size	1428.5*803.5mm
	Plywood Carton Size	1690*270*1180mm
	Net Weight	95kg
	Gross Weight	116kg
Power Parameters	Power	< 250W
	Standby Power	<1W
Display Parameters	Active Display Area	1428.48 (H) x 803.52 (V)mm
	Pixel Pitch	0.744mm
	Display Colors	1.07 billion colors
	Number of Pixels	1920x1080 pixels
	Brightness	360cd/m2
	Viewing Angle	178 Degree
TV Parameters	TV Standard	NTSC M/N,PAL BG/DK/I/H,SECAM L/L
	Multimedia Formats	MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG
	USB2.0 Multimedia Playback	Vido/Audio/Picture
	USB System Upgrading Online	Support USB online upgrading function
	Resolution	Max. 1080P format
	HDMI	V1.3, 720P/1080P
	HDCP	V1.1
	Scanning Format	Support 1080i Video crisscross DAS (Dynamic Adaptive Scan )
	Sound Control	Automatic sound standard detection, support for balance adjustment and surround Sound
	Sound Output	2X10W
Input and output ports	USB Multimedia Input ports	2-line
	Touchscreen port	1-line USB2.0
	HDMI Input port	2-line (HDMI1 keep for Inside OPS)
	VGA Input port	1-line
	PC Audio port	1-line
	UPBRP audio and video input port	2-line
	AV Input port	2-line
Touch parameters	Touch Technology	Infrared touch technology
	Touch mode	Single, multipoint,Mouse click
	Inductive objects	Finger,pen or any other opaque objects
	Inductive size	Diameter≥5mm
	Resolution	4096*4096
	Response time	1) First dot(click):8ms, continuously(writing):3ms 2) multipoint click:first dot(click):8ms,continuously(writing):8ms 3) Mouse click:first dot(click):8ms,continuously(writing):8ms
	Cursor speed	UP to 300 dots/s     Multipoint,mouse click:125 dot/s
	Operating life	≥60,000,000 times to click
	Power	USB power supply (4.6-5V, DC)
	Power consumption	≤1w
	Operation Systerm	Windows 8, windows 7, XP, Mac, Linux
	Calibration	HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration.
	Anti-light decay function	Anti-light decay circuits to prevent the performance degradation caused by long working hours
	LED Test Software	Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions
	Antilight interference function	can work properly in direct sunlight condition
Standard configuration	Interactive all-in-one touch monitor	1set
	Remote Control	TV Remote control
	USB cable	1.5m USB cable for touch monitor, USB2.0
	VGA cable	1.5m VGA cable
	Audio cable	1.5m audio cable
	CD	1 pcs
	Pens without ink	2 pcs
	User manul	1 pcs
	Wall brackets	Screws, wall mount kits
Optional Configuration	Three types of OPS PC for choice
		Version 1(Standard PC)
	Motherboard	Intel NM70
	CPU	Intel 1037U  1.80GHz
	RAM	DDR II 2G
	Hard Disk	500G
		Version 2 (Medium configuration PC)
	Motherboard	Intel Hm76
	CPU	Intel i3-3227U
	RAM	DDR II 4G
	Hard Disk	500G
		Version 3 (High configuration PC)
	Motherboard	Intel Hm77
	CPU	Intel i5-3337U
	RAM	DDR II 4G
	Hard Disk	500G

Application :

    1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store, etc.
    2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
    3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
    4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, HR Market, Lottery Center, etc.
    5. Real Eatates: Apartment, Villa, Business Building, etc.
    6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.



Packing details:

Package : 1 Set / carton ( carton Inside +wooden carton outside )
Delivery time :3-20 working days after the payment is checked

Company information:


Dong Guan Riotouch Techonology Co., Ltd (Riotouch) was founded in 2009, covering an area of 2500 square meters. We are a high-tech enterprise of human-machine interaction technology, manufacturing interactive whiteboard, infrared touch screen, touch all in one monitor and touch advertising kiosk, which have been widely used in education, business, military, Government and service industry.

We have R&D and an enthusiastic team strives to provide you with solutions in many fields like home theater, education, corporation, training and games. Our Advantage is proving SKD, CKD and Touch PCB for all our interactive products, supplying Software OEM & ODM services.

RioTouch purpose: Think, Do, Use. We strive to create a more valuable employee development platform, and respect the "happy work, work happily" working environment.

Riotouch products:
1. 50"-158" interactive whiteboard
2. 42"-84" touch screen monitor
3. 32" -150" touch screen kit
4. Riostudio teaching software.

FAQ
1. What is the infrared technology ?
Infrared technology is most popular now ,it's stable than other technology ,like CCD ,EM board

2. How many touch does the infrared technology support ?
Infrared technology support 1-32 touch points, support 1-10 points touch

3. Why I didn't sound you brand " RIOTOUCH '' before ?
We often OEM for good brand , If you want to OEM ,we also can support . We supply PCB, SKD, CKD for all our products.

4. If you can support the teaching software ?
Yes ,We can support the teaching software freely or OEM software . It's including math ,English ,Physic ,Chemistry subject resource . Over 28 language and also support you local language .


Please contact me

Mobile: 0086 18124598500
