Product Specifications
| Prod Model: |
C2000D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Cutting Width: |
1830*2440 |
| Control System: |
Industrial Computer |
Product Description
1, Moke guarantees the machine durability in use and increased knife's stability (especially when carving thin lines the precision can be 0.1 mm )with high-quality double giude rail

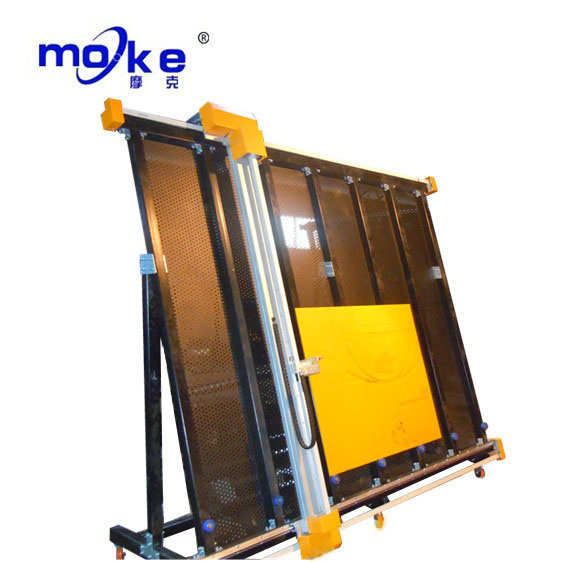

2. The MOKE Vertical Glass Engraving Machine adopt new wire belt and 90° Right angle. Not only guarantee the life but also improve the accuracy of machine carving.
3. Pausing, scramming, acceleration and deceleration of the speed, and adjusting cutting presure at any time
4. High performance driver improve the cutting precision and speed greatly, working at a stable speed of 16 m/min
5. Tipping platform, rolling support wheel, eccentric wheel structure, self-regular horizon line, it can be further improve the engraving accuracy. The inclined rolling tug can place the glass more convent and can further improve the engraving accuracy.
6. General connection mode includes HP-GL, G-Code
Model
|
C1000D
|
C2000D
|
C3000D
|
C2000D/L
|
C3000D/L
|
Max. Cutting Size (mm)
|
1220*2440
|
1830*2440
|
1830*3300
|
1830*2440
|
1830*3300
|
Dimensions (mm)
|
3250*1800*1150
|
3250*2250*1150
|
3900*2250*1150
|
3250*2600*1150
|
3900*2600*1150
|
Weight (kg)
|
260
|
290
|
340
|
300
|
350
|
Cutting Tool
|
Blade
|
Laser + blade
|
Drawing Command
|
HP-GL,G-CODE
|
Max. Cutting Speed
|
12m/min
|
Mechanical Precision
|
0.025mm
|
Repeat Accuracy
|
0.1mm
|
Power supply
|
AC90_240V/50Hz_60Hz
|
Support Mode
|
Vertical
|
Opertating Environment
|
Temperature:-10°C_+45°C,Relative Humidity:30%_70%
|
Shijiazhuang Yuanjing Electronic Company is an enterprise which integrates the decelopment, production and sales of art glass equipment. We ar the world first company which reserch, manufacture the vertical platform cutting plotter with several independent patents. With solid technological strength, top-grade eqiupment, excellent afterservice and extensive customer foundation, our company has obtained proud achievement in expanding market and gained good reputation among the same trade.
Traditional cutting plotters have some problems, such as paper diverging, dislocation or disorder painting. What's worse, the finished coat maybe destroyed due to unsuitable operation in the process of transfer sticker. Directing against above problems and with persevere effort of all staff, we developed the first "MOKE" vertical cutting plotter in March, 2007, and offered one-year trial term. Through continuous refinedment, we present the new type vertical cutting plotter which attracted wide attention in the 5th international exhibition (Shanghai in 2008) on glass industry in China. With special designed drop-kinfe structure and high-speed and high-precision motion system, it attracted customer's attention and got credit. After being designed, improved tested for many times, the vertical leveling block cutting plooter with all-steel stable structure has formly access to the market. Through numerous experiments and improvement, we launched to new products: Horizontal cutting plloter (knife &laser )and cutting machine, which has charateristic of handiness and durability. After four years of marketing experience, we have set up Beijing, Guangzhou, and Hangzhou as the center 's sale network. Our business has extended to all cities through out the country to satisfy our customers' demands. Meanwhile, we can provide more efficient and high-quaility after-service. We believe our products can bring you greater retuerns!
Our aim is to creat practical wealth for our customers with our high quality and cost performance products.
