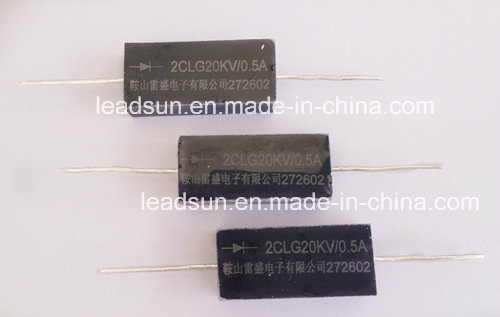

High Reliability 20kv/0.5A Hv Diode Unit

Name: High Reliability 20kv/0.5A Hv Diode Unit
Brand: china-manufacturer-directory.com
SKU: 701119322
Availability: InStock
Rating: 4.4 (24 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 3.66-8.66/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	2CLG20KV/0.5A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trr:	100ns
LHB:	9025018
Tj:	-45oc~+125oc
Features:	Supersmall Size
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2clg20kv/0.5A
Brand:	Leadsun

Product Description

2CLG20KV0.5A High voltage rectifier block adopts high reliable mesa structure and diffusion craftwork, epoxy resin molded in a compact structure.
Product features
1. Supersmall size
2. High reliability
Application
Rectification for high coltage power
Limiting Values(Absolute Maximum Rating)

Item	Symbol	Unit	Condition	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25ºC IR=0.5μA	20
Non-Repetitive Peak ReverseVoltage	VRsM	KV	Ta=25ºC IR=0.5μA	20
Average Forward Current	IF(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50ºC	0.5
Surge Forward Current	IFSM	A	0.01S @Half-Sine wave 50Hz	20
Junction and Storage Temperature	T stg	ºC		-45~125
Virtual Junction Temperature	T(vj)	ºC		-45~125

Item	Symbol	Unit	Conditions	Voltage
Forward Peak Voltage	VFM	V	@ Ta=25ºC IF=0.5A	≤45
Reverse Recovery Time	trr	ns	IF=10mA IRM=20mA	≤100
Peak Reverse Current	IRRM1	μA	@ Ta=25ºC VRM=VRRM	≤2.0
Peak Reverse Current	IRRM2	μA	@ Ta=100ºC VRM=VRRM	≤50.0

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
