High Resolution P10 Full Color Outdoor LED Display (SMD 3535)
Product Specifications
| Prod Model: |
P10-outdoor SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |

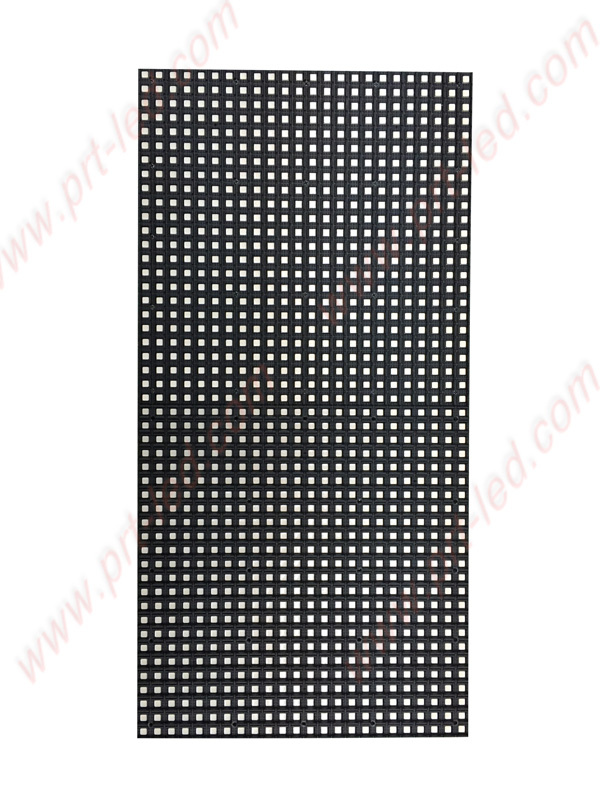

| Module Size: |
320X160mm |
| Moduel Resolution: |
32X16dots |
| Brightness: |
>=5500nits |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
P10 SMD3535 outdoor full color led display screen Product Features:1.SMD led encapsulation confirm wide view angle and low power consumption
2. Good waterproof IP65,long life span
3. High resolution,high brightness,Long view distance,Good uniformity

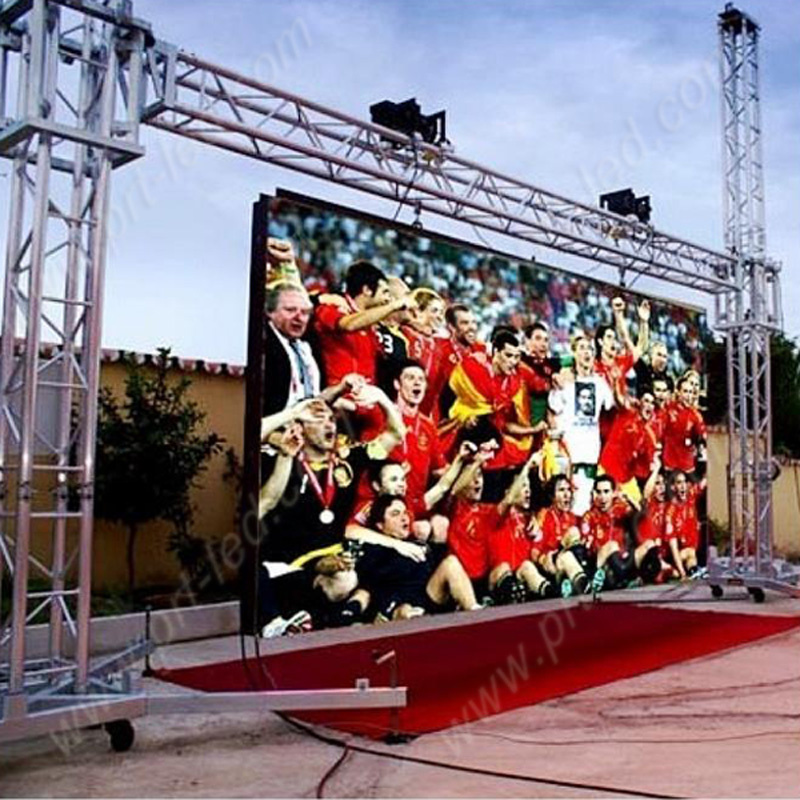

4. With Rental design Aluminum Cabinet,low lightweight,easy and quick to assemble without tools in short time,and can be fixed installation or hung for rental
5. Low noise created,good heat dissipation,low transportation costs
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

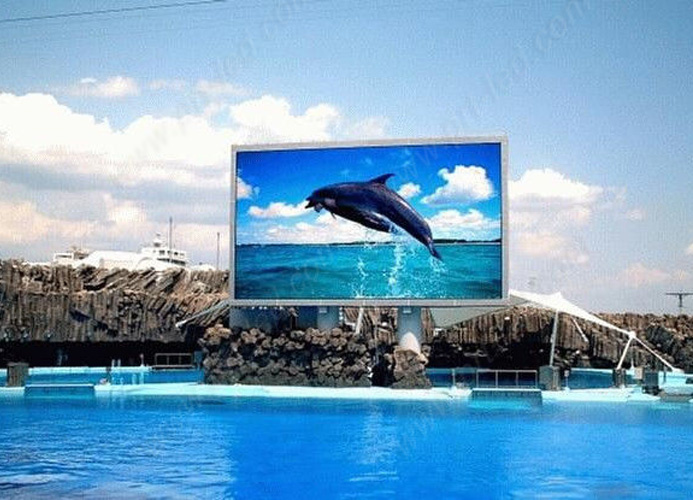

7. Widely used for commercial led display,advertising led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.
| Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 10.0 |
| Pixel Density | Dots/sq.m | 10000 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 64×96 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥5000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/400 |
| Input Voltage(AC) | V | 110~220 |
| Modular Characteristics |

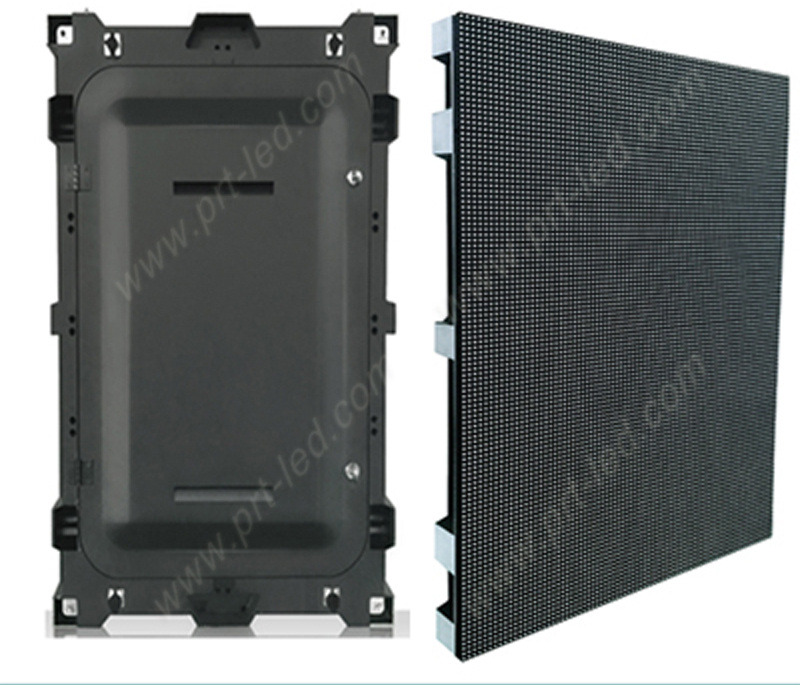

| Cabinet Size(W×H×D) | mm | 640×960 |
| Cabinet Material |
| Die-casting Aluminum |
| Cabinet Weight | Kg | 20 |
| Module Size(W×H) | mm | 320×160 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/4 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R& D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
Business Type: Manufacturer/Factory
International Commercial Terms: FOB, CFR, CIF, EXW
Terms of Payment: LC, T/T, PayPal, Western Union, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2011-02-20
Export Percentage: 71%~90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Exportation via agency
Factory Address: A5-A708,West Song Bai Road,Shiyan Town Bao'an District
R&D Capacity: OEM, Own Brand(PRT)
No. of R&D Staff: 5-10 People
No. of Production Lines: 5
Annual Output Value: US$10 Million - US$50 Million
