High Resolution P4.8 Indoor Rental LED Display with 576X576mm Panel
Product Specifications
| Prod Model: |
P4.8-576 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576X576 |
| Cabinet Material: |
Die-Casting Aluminum |
| Module Size: |
288X288mm |
| Module Resolution: |
60X60dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Density: |
23042dots/Sq.M |
| System Operating Platform: |
Win XP,Win 2000,98,Nt |
Product Description
Full Color P4.8 Indoor Rental LED Display with Die-Casting cabinet size 576x576mm, slim thickness and light weight, high resolution and good uniformity1.. Made with die-casting aluminum,strong profiles with beautiful outlooking and durable
2. Slim and small cabinet size of 576× 576× 60mm,only 10.5kgs,light weight and portable
3. No fans design, no noise created, low power consumption, energy-saving
4. Flight case package,convenient to transport and collect,can move to anywhere
5. Rental design, with fast locks and aviation plugs, easy to install and dismantle without any tools, save much time for installation and maintainance

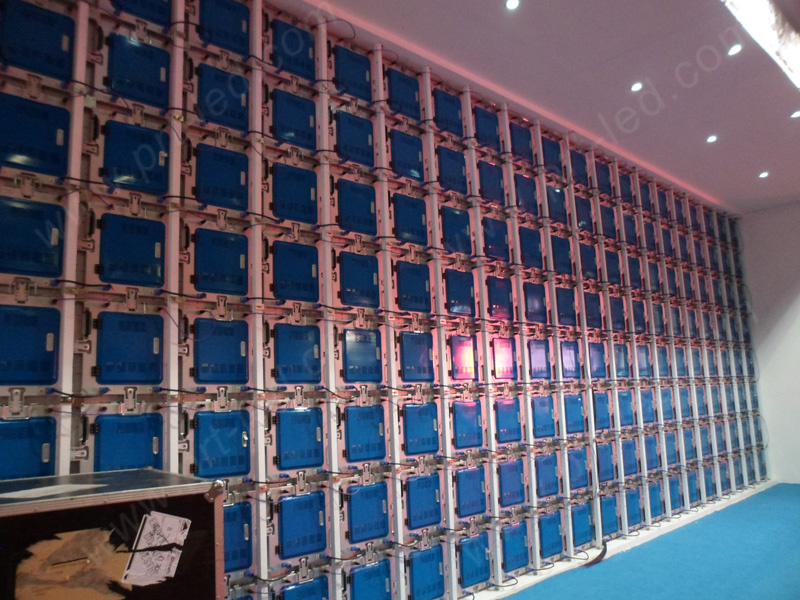

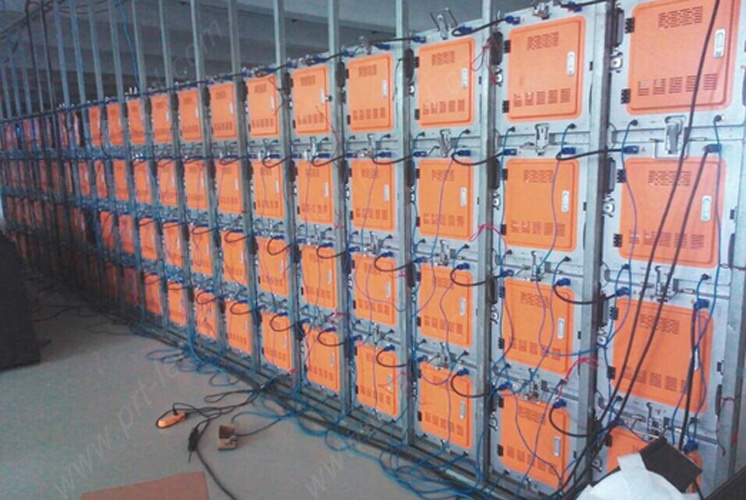

6. Can be suspend or fixed installation, Seamless splicing,perfect display effect

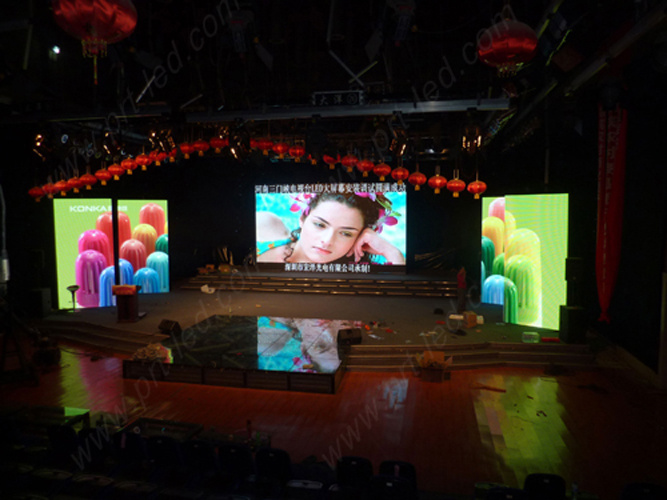

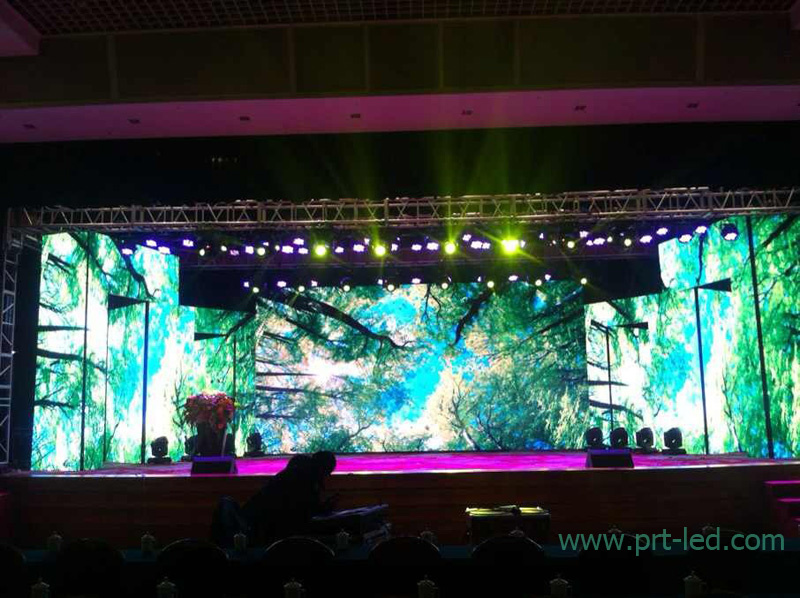

7. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
| P4.8 SMD3528 Indoor full Color LED Screen Specification |
| Pixel pitch | 4.8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 288mm*288mm |
| Resolution of module | 60x60 |
| Size of cabinet | 576mm x 576mm x 65mm |
| Resolution of cabinet | 120x120 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 10.50KGS |
| Brightness | >1500cd/ |
| Density | 43402dots/ |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/ |
| Average power consumption | 640W/ |
| Driving method | 1/15 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R& D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
Business Type: Manufacturer/Factory
International Commercial Terms: FOB, CFR, CIF, EXW
Terms of Payment: LC, T/T, PayPal, Western Union, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2011-02-20
Export Percentage: 71%~90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Exportation via agency
Factory Address: A5-A708,West Song Bai Road,Shiyan Town Bao'an District
R&D Capacity: OEM, Own Brand(PRT)
No. of R&D Staff: 5-10 People
No. of Production Lines: 5
Annual Output Value: US$10 Million - US$50 Million
