Guangzhou Jply Electronic Technology Co., Ltd >> High Speed 5.0 Megapixel USB3.0 CMOS Camera for Microscopy Imaging and Analysis

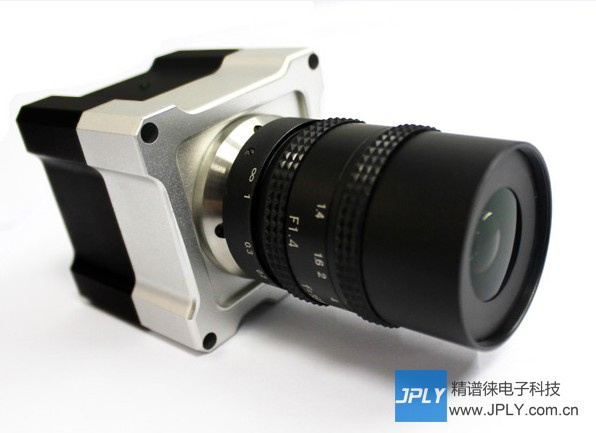

High Speed 5.0 Megapixel USB3.0 CMOS Camera for Microscopy Imaging and Analysis

Name: High Speed 5.0 Megapixel USB3.0 CMOS Camera for Microscopy Imaging and Analysis
Brand: China-Manufacturer-Directory.com
SKU: 713924955
Availability: InStock
Rating: 4.8 (50 reviews)

Supplier:	Guangzhou Jply Electronic Technology Co., Ltd
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	G1TD05C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixel Dimension:	2.2um X 2.2um
Scan Method:	Progressive
Sensitivity:	1.4V/Lux-Sec(550nm)
Frame Rate:	14fps@ 2592 X 1944, 30fps@ 1920 X 1080
Shutter:	Electronic Shutter
Snr:	44dB
Spectral Response:	400nm~1100nm
Data Interface:	USB3.0 Rate 5gbps, 18m Cable
Power:	DC 5V
Image Sensor:	CMOS
Megapixel:	5.0-9.9MP
Screen Size:	>3"
Optical Zoom:	Fixed Focus
Type:	SLR
Memory Card Type:	PC Memory

Product Description

USB 3.0 is not only possess the high usability and flexibility of USB 2.0, but also make a qualitative leap in data rate-480Mbps of USB 2.0 to 5Gbps. Considering this property, the JPLY engineers decided to adopt and developed this new technology in the field of industrial camera.

It's specially designed for professional clients who both use camera with 5Mega or above and have strict requirement in capturing rate at the same time.

Current:	About 500 mA
White balance:	One-time white balance/regional white balance
Auto exposure control	36us~300ms, auto/manual, regional exposure
Lens Mount:	C interface (Optional CS interface
Busy indicator:	LED
Working humidity:	0-85%
Camera weight:	About 115g
Software:	Spectrumsee image analysis software with modular designing, including image previewing, capturing, analyzing, processing, sharing function. The software function: image capturing, time lapse, measurement, data export etc.

As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.

The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
