Product Specifications
| Prod Model: |
VGA200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Megapixel: |
<5.0MP |
Product Description
VGA 200

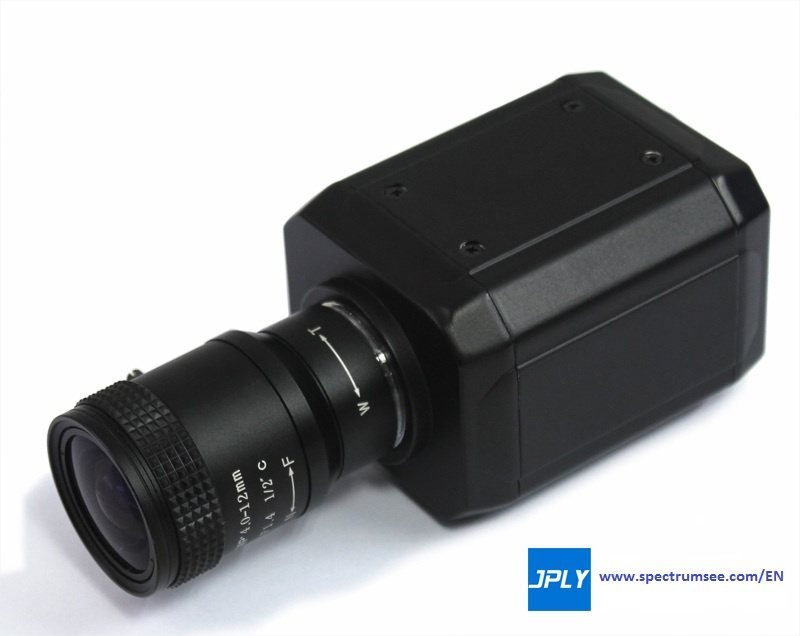

2.0MP CMOS Machine vision and Inspection VGA camera
Sensor 2.0M, 1/3INCH
Pixel 1600 × 1200
FPS 10-15
Clarity More than the highest 800 line (horizontal)
Case Standard iron case or customized case
Lens CS-Mount (according to customer)
White balance Automatic
Brightness Control Automatic
Color Color/Gray
Inverse Supported
Mirror Right /Left /Up/Down supported
Freeze Supported
OSD English/Chinese
Zoom lens 10*digital zoom supported
Image Comparison 1/2 screen static and dynamic image comparison supported
Edge Enhancement Supported
Contrast Supported
Calorimeter Supported
Cross cursor Multicolor supported
Horizontal &Vertical line Multicolor /each 2 lines /Location moved availabled supported
DNR Supported
AV(RGB) 720P/1024× 768/1280× 1024/1366× 768 @ 60HZ
USB Output USB2.0 (1600*1200\800*600) UVC
Lens C/CS
Interface of the Monitor VGA
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
