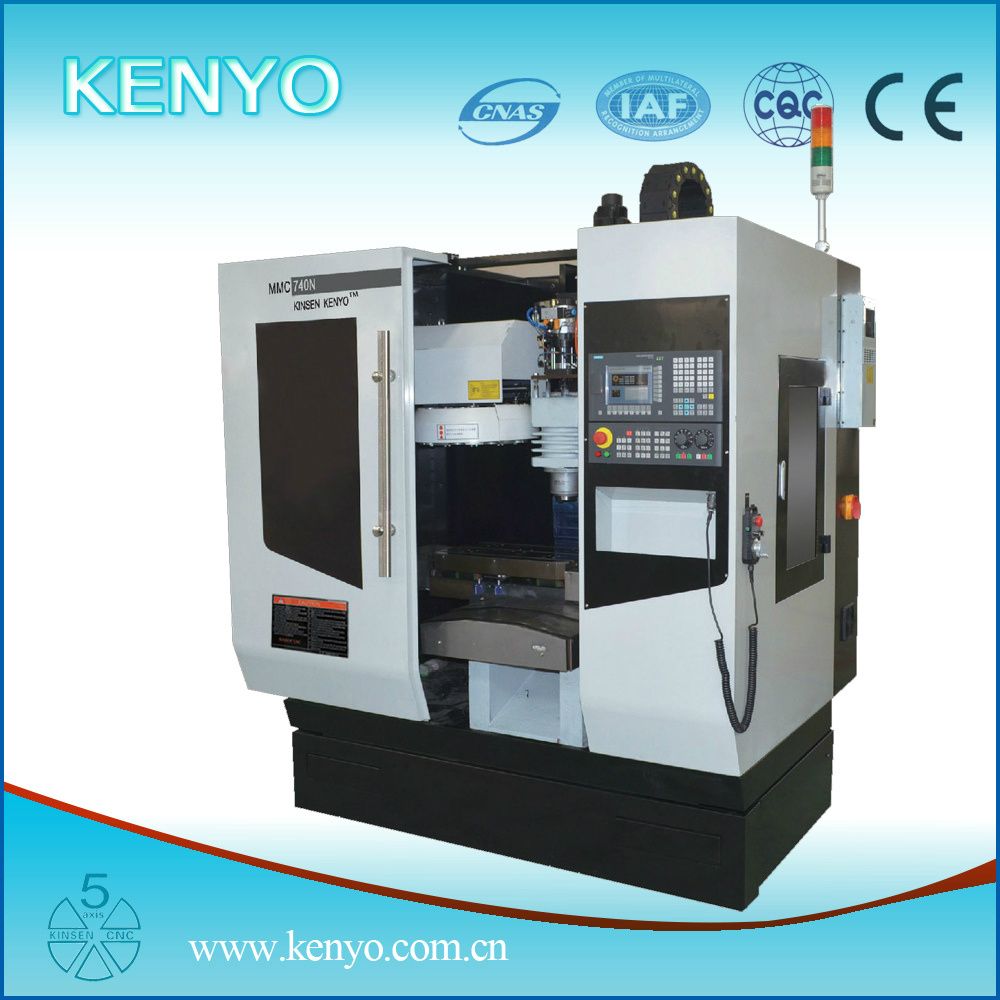

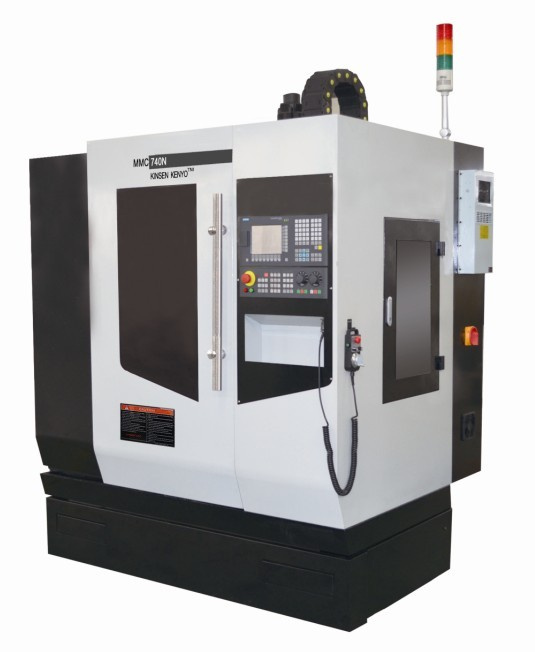

High Speed CNC Machine Center Machine Tool
| Price: |
US $ 1-21000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
MMC740N-K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Type: |
Bt40/Bt30 |
| CNC Controller: |
GSK/Siemens/Fanuc |
| Lubrication System: |
Automatic |
| Table Size: |
600(800)*400 |
| Package: |
Standard Wooden Case |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Processing Precision: |
±0.01 |
Product Description
FeaturesNew and smart high speedTable size: 600X400mmTravel: 600X280X400mmSpindle speed: 8000r/min| Model | MMC740N | MMC740H | unit |
| Table | table size | 600× 400 | 600× 400 | mm |
| Table load | 300 | 300 | kg |
| machining range | X axis travel | 600 | 600 | mm |
| Y axis travel | 280 | 280 | mm |
| Z Axis travel | 400 | 40 | mm |
| spindle nose to table | 100-550 | 100-550 | mm |
| Spindle | Spindle hole type | BT40 | BT40 |
|
| Rotation Speed | 8000 | 24000 | rpm |
| spindle power | 3.7/5.5 | 5.5/7.5 | kW |
| feed | cutting feed rate | 10-3000 | 10-3000 |
|
| X axis rapid feed rate | 16000 | 16000 |
|
| Y axis rapid feed rate | 16000 | 16000 | mm/min |
| Z axis rapid feed rate | 16000 | 16000 | mm/min |
| Tool(selection) | Tool changer capacity | 10 | 1 | mm/min |
| Tool type | BT40 Armless(Umbrella)Type ATC | BT40 Armless(Umbrella)Type ATC | mm/min |
| Lubrication system | auto | auto |
|
| Coolant system | coolant water | coolant water | |
| Guide ways | linear guide way | linear guide ways(XYZ) |
|
| Repeatability | 0.005 | 0.005 | mm |
| Positioning accuracy | 0.01 | 0.01 | mm |
| Overall dimension (L*W*H) | 1800x1430x2350 | 1800x1430x2350 | mm |
| cover style | full | full |
|
| Machine Weight | 2.0 | 2.0 | T |
About Us1. Company Introduction:We are one of the leading machinery group specializing in producing heavy duty machine tools, it have five factories in China which mainly produce Vertical Lathe, Boring & Milling Machine, Heavy-duty Horizontal Lathe, both conventional and CNC types.We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.2. Export Market:Our products have been exported to more than 60 countries such as Canada, the U. S. A., Italy, France, Brazil,Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U. A. E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on.3. Our Belief:We do believe we can create a winwin situation for both sides as long as we have come to a cooperation consensus. "Together we stand still, Divided we fall" this is what we treat our partners. Clients from all over the world are warmly welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.
Nanjing Kenyo Precision Machine Manufacture Co., Ltd is a high-tech enterprise, supplying high-end CNC machines in the last few years. The company locates in Guabu CNC industrial park, LUHE district, Nanjing City, Jiangsu Province, China, and consists of eco-friendly production workshops, R&D center, worker apartment buildings, and modern office buildings. The company occupies 45 acres land, including 16000 sqm for manufacturing area.
Nanjing Kenyo company being dedicated in innovative researches and development, specializes in manufacturing CNC Machine, CNC Milling Machine, CNC Machining Center, CNC Lathe, CNC Turning Machine, 5 Axis CNC Machining Center, Industrial Robot Arms...
In 2011, Nanjing Kenyo enterprise established engineering R&D center for Nanjing Municipal Vertical-Horizontal Hybrid Machining Center, as well as Jiangsu Province post-graduates' workstation in enterprises by cooperating with a very famous science and technology univerisity in Nanjing named "Nanjing Southeast University".
In 2012, the enterprise acquired ISO9001 issued by CQC, Jiangsu Province Export Product Quality Assurance Certificate, and CE certificate.
On January13, 2015, Nanjing Kenyo enterprise successfully listed in Beijing stock exchange"New Three Borad", and the security code is"831883".
Keeping building high-quality brand, Nanjing Kenyo enterprise owns a research team, who has core technology and independent knowledge. In the year of 2011, VS1580 five- axis machining center was awarded with the title "Jiangsu Province First key Product". In 2012, VS855 column-moving five-axis machining center was listed in "Nanjing Science and Technology Project".
Nanjing Kenyo enterprise sets sales offices in Beijing, Tianjin, Shanghai, Chongqing, Guangzhou these five very developed cities in China, and the CNC machines are used in military field, aviation field, aerospace field and wind energy field. In addition, Nanjing Kenyo enterprise has exported machines to foreign markets, such as America, Austrilia, Russia, Indonesia, Middle East countries, Dubai, Philippines, New Zealand, Africa, Turkey, and other countries in Europe.
Each year, we take part in "Beijing / Shanghai International Machine Tool Exhibition", which is the most important machine exhibition in China in the whole year. Moreover, we take part in certain global machine exhibitions, such as the machine exibition held in Indonesia, since we have office there, and we export our CNC machines mainly to markets in Indonesia.
Since eatablished, Nanjing Kenyo enterprise adheres to the scientific development concept, and gains its own concept "Business-first, people-oriented, credit-based" during its development. For the time being, Nanjing Kenyo Precision Machine Manufacture Co., Ltd owns 29 patents and 2 software copyrights. We keeps supplying high quality CNC machines, and we offer very competitive factory. More and more, we have a very efficient after service group, who will answer your questions promptly and help solve your problems in 48 hours. If our customers need very professional technicial support, we can send our engineers to help them solve problems.
If you have more questions, please feel free to ask. We would be very glad to serve you.
