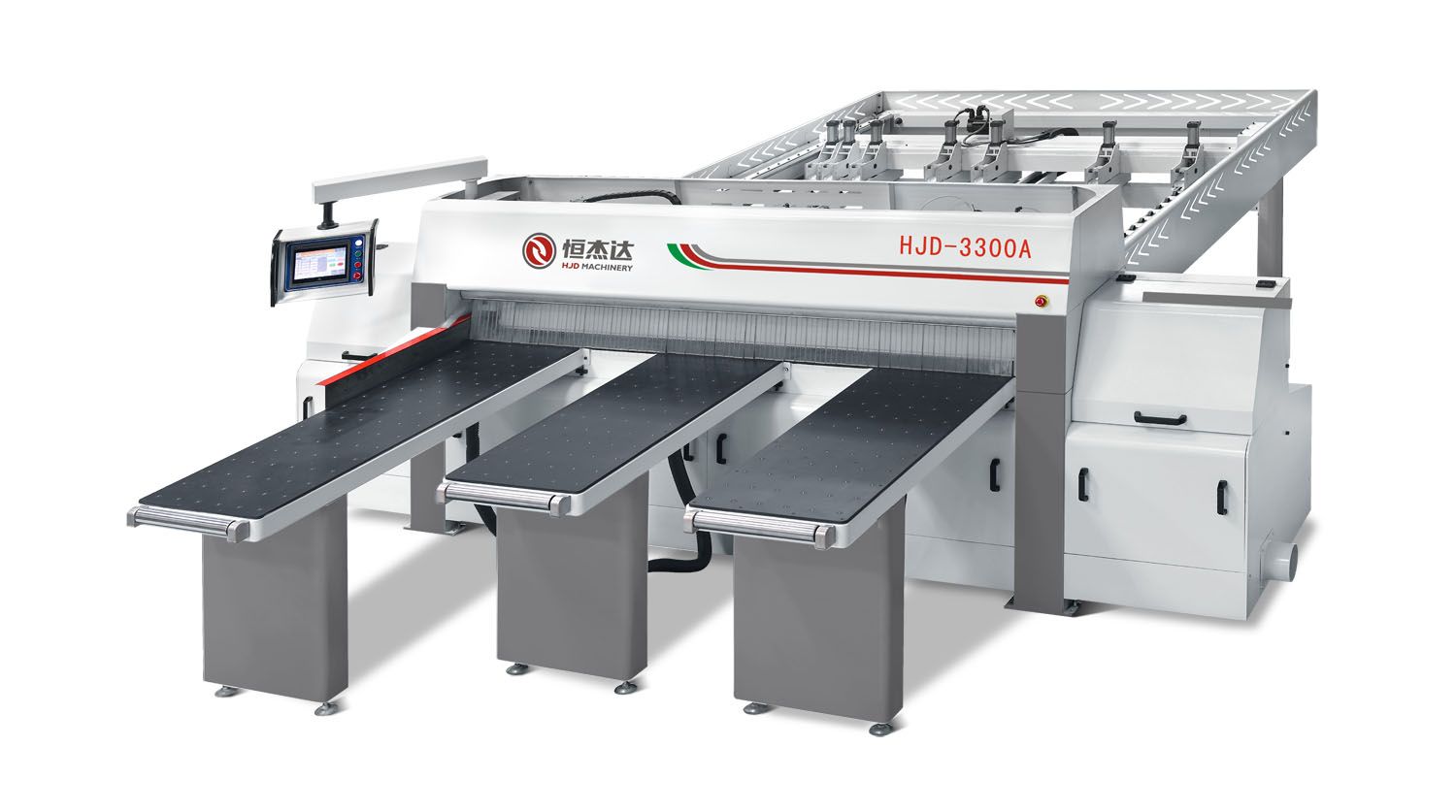

High Speed Computer Panel Saw Woodworking Machinery (HJD-MJ3300A)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
HJD-MJ3300A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic: |
Automatic |
| Original Place: |
Shunde Foshan, China |
| Color: |
Red and Siliver |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Controlling Mode: |
CNC |
| Layout: |
Horizontal |
| Certification: |
ISO |
| Type: |
Furniture Manufacture Equipment |
Product Description
High Speed Computer Panel Saw Woodworking Machinery (HJD-MJ3300A)1. Rigid Heavy Duty Machine Frame.
2. High Speed Saw Carringe Runs up to 120m/Min or 150m/Min.
3. Nc Panel Pusher Driven up to 100m/Min by AC Servo Motor.
4. Saw Blade Projection 0-125mm Programable.
5. Double-Side Push Device Ensures Preciseness of Cutting for Narrow Board.
6. Chain Drive Prevents Cutting From Slipping Away Under Heavy Load.
7. Imported Control and Driving Parts Are Precise and Durable.
8. Floating Clamp-Hand Structure Prevents Pieces From Being Damaged.
|
working length |
3280mm |
Working thickness |
120mm |
|
main saw rotation |
3280rpm |
Main saw diameter |
75mm |
|
Main saw diameter |
440mm |
Scoring saw diameter |
160mm |
|
Scoring saw shaftdiameter |
45mm |
Net weight |
6100kg |
|
Scoring saw rotation |
6800rpm |
Bench height from the ground |
930mm |
|
|
|
Major seat back speed |
120m/min |
|
Major drive motor |
15hp |
Tank major motor |
1.5km |
|
Major seat drive motor |
1.5km |
Operation pressure |
6-8kg/cm |
|
Automatic feed speed |
15m/min |
Total power |
20km |
|
Major drive motor |
15km |
Physical dimensional(L×W×H) |
600cm×680cm×180cm |
