Wuxi Poshstar Industry Co., Ltd. >> High Speed Injection Molding Machine Poshstar (PS-700-2500M(3C))

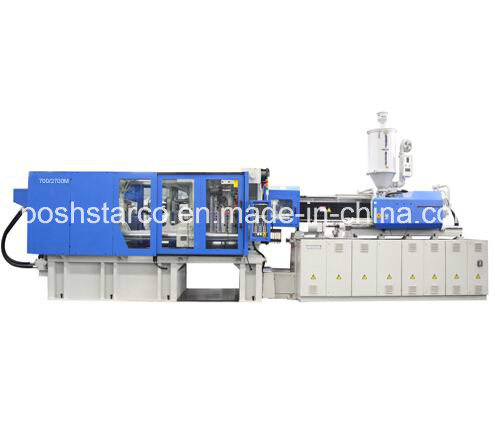

High Speed Injection Molding Machine Poshstar (PS-700-2500M(3C))

Name: High Speed Injection Molding Machine Poshstar (PS-700-2500M(3C))
Brand: china-manufacturer-directory.com
SKU: 749714625
Availability: InStock
Rating: 4.3 (141 reviews)

Supplier:	Wuxi Poshstar Industry Co., Ltd.
Price:	US $ 20000-40000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PS-700-2500M(3C)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force:	7000kn
Type:	Preform Injection
Structure:	Horizontal
Plastic Type:	Thermosetting
Plasticizing Way:	Plunger Type
Certification:	ISO9001:2008
Automation:	Automatic
Computerized:	Computerized

Product Description

Guarantee : 1 year.

Installation:
We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels.

Remark:
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB Shanghai.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine.

			(unit)	PS-700/2500M(3C)
		Screw Diameter	mm	65
INECTION UNIT		Screw L/D Ratio	L/D	23.7
		Shot Size(Theoretical)	cm3	1161
	(Ps)	Injection Weight	g	1057
		Injection Pressure	MPa	219.1
		Injection Rate into Air	cm3/s	561.5
		Injection Stroke	mm	350
		Injection Speed	mm/s	169
	(ACC)	Injection Speed(ACC)	mm/s	300
		Screw Speed	rpm	232
		Clamping Force	KN	7000
CLAMPING UNIT		Clamping Stroke	mm	980
		Space Between Tie Bar	mm	960*960
		Max. Mold Height	mm	980
		Min. Mold Height	mm	400
		Eject Stroke	mm	260
		Eject Force	KN	182
		No. Of Ejector Pins	piece	21
		Max. Pump Pressure	MPa	17.5
OTHERS		Pump Motor Power	KW	74
		Heater Power	KW	32.7
		Hopper Capacity	L	100
		Oil Tank Capacity	L	1050
		Weight	t	30

WUXI POSHSTAR INDUSTRY Co., Ltd. is established in 2003, succeeding blow moulding techniques & experiences accumulated many years by our engineers and technicians in this field.

We have been able to carve a niche in the industry due to the unstinting support of our industrious team; In other words, our team is the backbone of our organization. Our professionals possess vast experience, expertise and extensive knowledge in their respective domain which allows them to utilize their skill and talent wisely. We also can provide all the necessary facilities to our workforce in order make the latest and most advanced technology available to them. We have appointed the following professionals as a part of our team:

(1)Designers

(2)Quality Analysts

(3)Skilled Craftsmen

(4)Machine Operators

(5)Packaging Experts

(6)Sales and Marketing Professionals

Looking forward to cooperating with you in future.

Contact Person: Peter

Tel: 0086-510-82820051

Mobile: 0086-13812175742

Fax: 0086-510-82822112

Add: Times International C, Nanchang Area, Wuxi city, Jiangsu province, China.
