Product Specifications
| Prod Model: |
1092mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Various |
| Operation: |
Automatic |
| Quality: |
High |
| Price: |
Resonable |
| Process: |
Paper Machine |
| Usage: |
Office Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Type: |
Printing |
| Certification: |
ISO |
Product Description

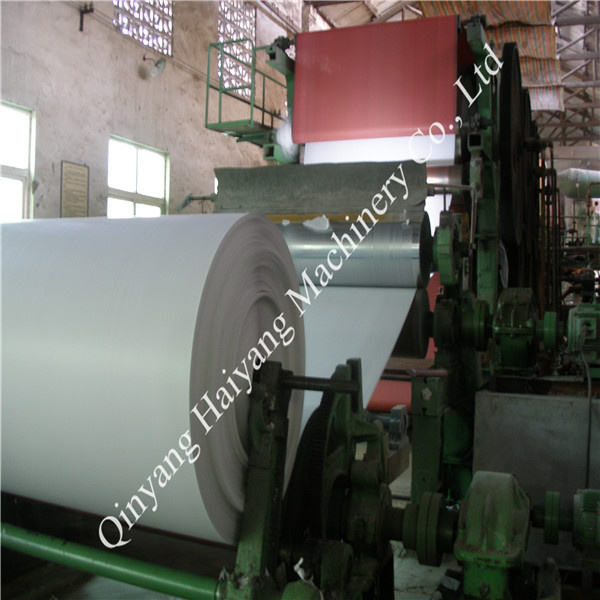

1092mm double-dryer can and double-cylinder mould paper making Machine
I. Technical parameters:
1. Raw material: Wood pulp;
2. Output paper style: A4 paper;
3. Capacity: 4T/D;
4. Output paper weight: 80-140G/M2;
5. Net paper width: 1200mm;
6. Width of copper cylinder: 1450mm
7. Rail gauge: 1800mm;
8. Drive way: AC inverter speed, section drive;
II. Main structure and characteristic of main part:
1. Cylinder section: 1250mm× 1450mm stainless steel cylinder mould 2(PCS), 400mm× 1450mm couch roll 3(PCS), reverse roll 1 (PCS), coated by rubber, rubber hardness HSD 38± 2.
2. Press section: 450mm× 1450mm marble roll 1 PCS, 400mm× 1450mm rubber roll 1 PCS, ccoated by rubber, rubber hardness HSD 90± 2. Pneumatic loading device.
3. Dryer section: 1500mm× 1450mm alloy dryer can 2 PCS, 400mm× 1450mm touch roll 1PCS, coated by rubber, Rubber hardness HSD 90± 2, pneumatic loading device.
4. Drive and control section: AC inverter speed, section drive;
|
NO. |
Item |
qty(set) |
|
1 |
paper making Machine |
1 |
|
2 |
double layer dryer can Exhausted hood |
1 |
|
3 |
axial-flow ventilator |
1 |
|
4 |
Roots vacuum pump |
1 |
|
5 |
Suction box |
2 |
|
6 |
1092mm winding machine |
1 |
|
7 |
1092mm calendar(3 rolls) |
1 |
|
8 |
1092mmrewind machine |
1 |
|
9 |
5m3 High consistency hydrapulper |
1 |
|
10 |
1.8m2 High frequency vibration screen |
1 |
|
11 |
Φ380mm double disc Refiner |
1 |
|
12 |
sand remover(6 set) |
1group |
|
12 |
35m3 bleacher |
1 |
|
13 |
700mm Thruster |
4 |
|
14 |
CX0.9 centrifugal screen |
1 |
|
15 |
4 inch pulp pump |
3 |
|
16 |
6 inch pulp pump |
3 |
|
17 |
air pump cabinet |
1 |
|
18 |
inverter control cabinet |
1 |
|
19 |
work table |
1 |
|
20 |
2ton boiler(burn coal) |
1 |
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
