Product Specifications
| Prod Model: |
FC-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Paper Machine |
| Usage: |
Household Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Certification: |
CE |
| Work Method: |
Flat Knife Slitting |
| Packaging Type: |
Wooden Case/ Pallet |
| Type: |
Slitting Rewinder |
Product Description

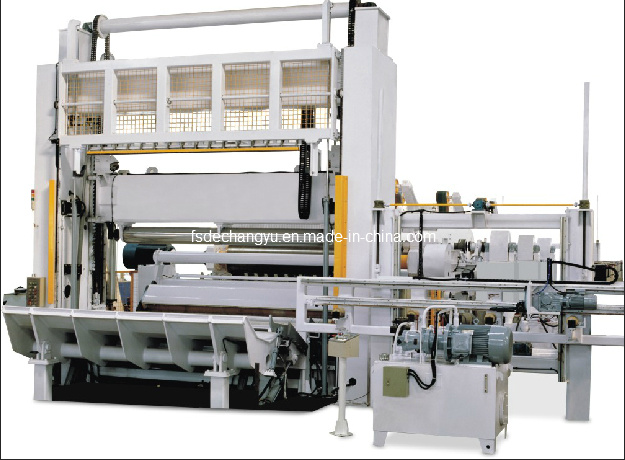

FC-V High speed slitting rewinding machine
1. Rewinding control: Automatic pneumatic proportional valve controls linear slide rail lifting, hydraulic servo system controls riding roller, pneumatic grasping rewinding shaft.
2. Slitting bottom blade: Each bottom blade is driven by independent external rotor motor
3. Rewinding shaft lifting rail: Front&back rewinding rollers speed differential+riding roller control final product tension and neatness of both ends.
4. Shield-blade do tail trimming, and guard while machine is running.
5. Spreading auxiliary roller (optional).
|
Type |
2500 |
2900 |
3600 |
|
Width of raw paper |
2400mm |
2800mm |
3400mm |
|
Max. diameter of raw paper |
3000mm |
to be specified |
to be specified |
|
Inner core diameter of raw paper |
3" (76.2mm)(Other size to be specified) |
|
Max. diameter of finished product |
1200mm(Other size to be specified) |
|
Min. slitting width |
100mm |
|
Inner core diameter of finished product |
3" (76.2mm)(Other size to be specified) |
|
Machine speed |
1000-1500m/min |
|
Driving |
Independent variable frequency drive system |
|
Top Slitter Unit |
Each set of blade equipped with Individual pneumatic transversal-move unit |
|
*Unwind Stand |
1-3 Layer(to beordered)droven By Independent variable frequency drive |
|
*Calender unit |
Steel to steel /steel to rubber(to be order) |
|
Roll-lifting guide |
Linear guide |
|
Roll-kicking |
Pneumatic |
|
Roll-unloading |
Pneumatic |
|
Wasted Edge |
Air absorption |
|
Winding Density |
Automatic system |
|
Control |
PLC |
|
Parameter Setting |
Touch screen |
Foshan Nanhai Dechangyu Paper Machinery Manufacturing Co., Ltd. Was founded in 1988, Its predecessor was Dechang Hardware Machinery Factory. We were one of the pioneer professional tissue converting machinery manufacturer in China. Undergoing 20 years of development, our company has grown as a domestic leader in tissue converting machinery manufacturing industry! We are also honoured to be the unique manufacturer in tissue converting machinery industry being recommended by the Guangdong International Trade Promotion Committee to the European Union Countries! Our company is located in Nanhai, Foshan, Guangdong, near to Guangzhou, with efficient traffic network throughout the country. Moreover, we can enjoy international transportation service attributed to the vicinity to Hong Kong. Our total factory area is more than 40, 000 square meters. Thanks to the scientific and modernized management, we have formed a team of elite as our staff so as to create our unique and effective system on public relationship and the research and development.
Our company endeavours in design, research and development, production and sales of tissue converting machinery. We aim at producing converting machinery for facial tissue, toilet roll, pocket handkerchief, napkin and kitchen towel, by a series of rewinder, facial tissue interfolder, pocket handkerchief folder, napkin folder, slitter rewinder, core winder and non-woven machines. By referring to the international standard as guidance, we have critically up-graded on production and quality control. We have got the ISO9001 certification and CE certificate as well as numerous national patents. Our company specializes in the design and production from low to high end of complete product range, as well as the whole converting production line. We do also provide equipment layout design, flow chart, pre-sale and after-sales services so as to gain every customer's trust and support.
Our sales network covers more than 60 countries and regions of the five continents and keeps growing. We will eventually achieve the first class machine quality and service standard and will lead the industry to become a worldwide brand.
We are looking forward to having your continued support for Dechangyu and cordially welcome your visit and guidance!
