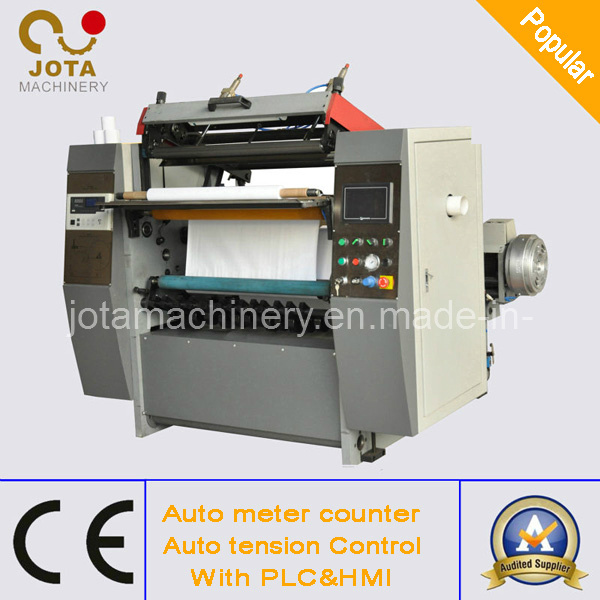

High Speed Thermal Paper Cutting Machines (JT-SLT-900)

Product Specifications

Prod Model:	JT-SLT-900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PLC:	Emerson
Touch Screen:	High Tech From Taiwan
Rewinding Type:	Inverter Motor Drives Magnetic Clutch
Auto Tension:	2 Sets, Inplant The PLC
Synchronic Belt:	From Germany
Speed:	150m/Min
Machine Type:	Slitter Rewinder
Unwinding Type:	Magnetic Brake for Unwinding Tension
Cutting Type:	Disc Blades
Red Line Marker:	Yes, Controlled by PLC
Computerized:	Yes

Product Description

High Speed Thermal Paper Cutting Machines
--Slitting Machine
--Emerson PLC
--Touch Screen Control
--Auto Tension Control System
--Meter Counter
--This Slitting Machine is used for slitting fax paper, cash register paper, film, self-adhesive trade marks, and other paper less than 250GSM. It is advanced equipment at home and abroad.

--This Slitting Machine adopts sureface rewinding system to slit the small roll fax paper or cash register paper.

--We can provide the rewinding shaft in diameter of 12.7mm, 25.4mm and 50.8mm. Some other size is subject to the clients demand.

Max. Unwinding Width 900-1200mm
Max. Unwinding Diameter 1000mm
Max. Rewinding Diameter 200mm
Max. Slitting Speed 120m/min
Frequency inverter motor 2.2Kw
Overall Dimension 2050*1600*1500mm
Weight 1500kg.
