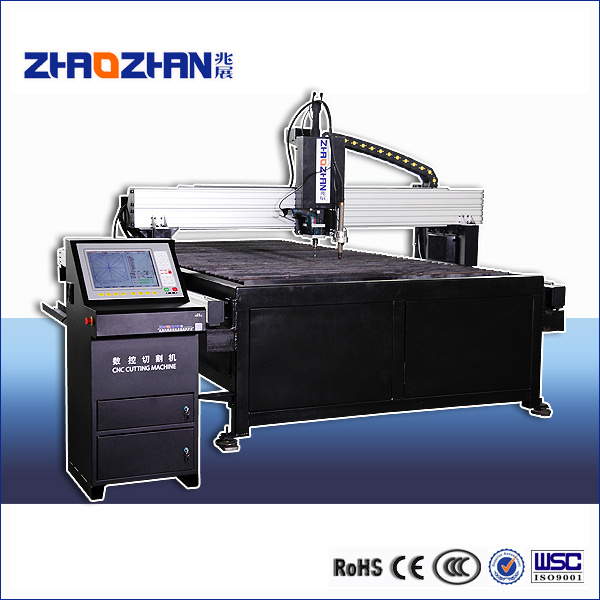

High Structure Cutting Drilling Machine

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Torch Height Control Style:	Flame Thc : Optional / Plasma Thc: Optional
Voltage:	220V 50/60Hz
Cutting Speed:	0-10000mm/Min
Torch Lifting Distance (Z):	≤120mm
Z Axis Lifting Speed:	300-3000mm
Drilling Rotate Speed (Z):	600-1400r/Min
Drilling Size:	Less Than 8mm
Drilling Location Precision:	±0.1mm/ Meter
Working Precision:	± 0.2 Mm / Meter
Flame (Gas) Cutting Thickness:	"Piercing Capacity: 5 - 60 Mm Edge Start: 5 -
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine

Product Description

CNC DRILLING AND FLAME PLASMA CUTTING MACHINE
Cutting Drilling Machine

Introduction
Launched by Shanghai ZHAOZHAN AUTOMATION EQUIPMENT CO. Ltd, CNCUT-D-SE(ST) can solve the existing difficulties and problems which are confronted by other suppliers. It enjoys economical, energy-saving, labor-saving, low-cost and composite working features which further utilizes the performance of the equipment.

1. With the combination of the drilling and cutting functions, CNCUT-D-SE(ST) can solve existing problems left by flame / plasma cutting of big-size plates or uncommon working pieces. It can work with tiny holes (2-5mm), drill with the thin plate (5mm) but cut as well as drill with steel plate (6 mm) but cut.
2. With the advantages of efficiency-improving, quality-guaranteed, labor-saving, consumption-reduced, composite processing-capability as well as cost-saving.
3. The good quality smoke processor (Optional) attached can purify air and reduce gas exhausts which guarantees the hygiene of the working place and does good to the human health.

Product features:
1) Tailored drilling head can work with: For 4mm tiny holes and 6mm steel plate, it can drill and cut; For thick steel plate (6-20mm), it can work with holes of 4mm in diameter and plates of 4mm in depth.
2) The tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.
3) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
4) The tailored exhaust system is easy to handle and yield prominent results.
5) The good quality materials make the cutting table durable and sturdy which is convenient and easy to handle.
6) The same function of CNC table cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
7) With the function of cutting metal plates into any shapes.
8) Chinese, English, French, and Portuguese are ready to use.
9) Can automatically memorize and restore when power is off.
10) Can choose Plasma THC ( torch height control) device.
11) Plasma high frequency proofed which guarantees the safety of the plasma cutting.
