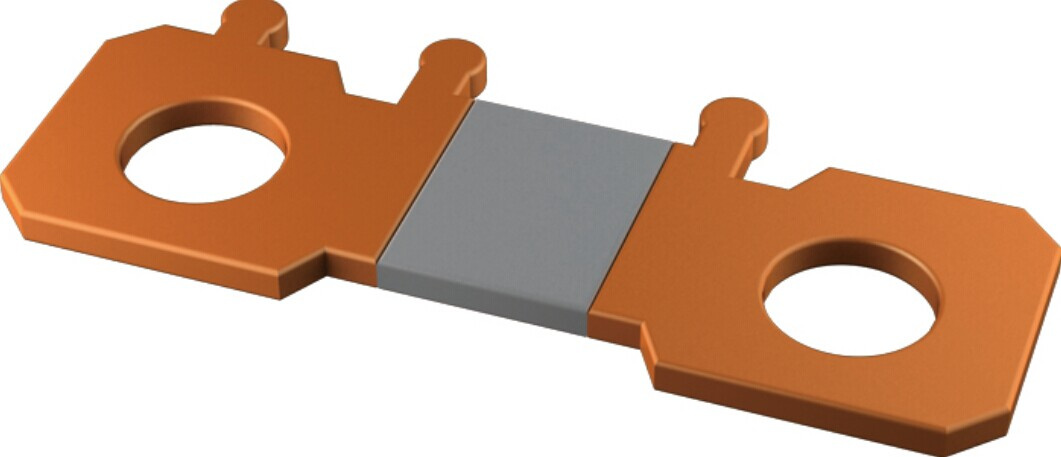

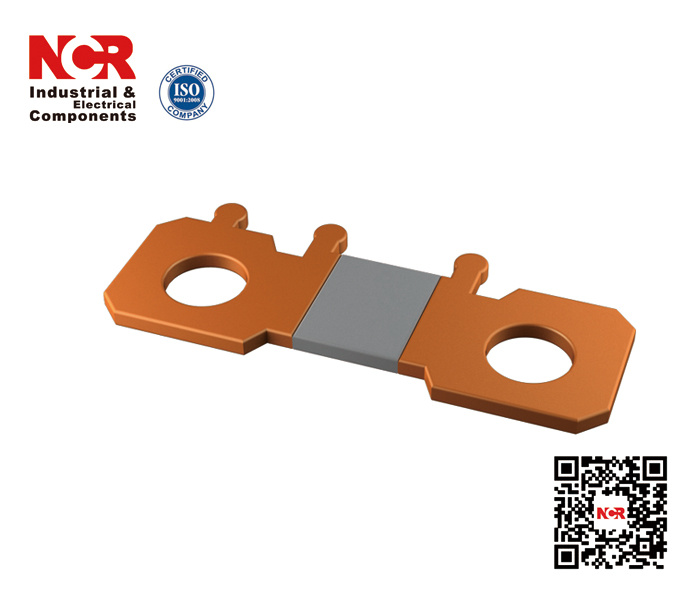

High Technology Copper Manganin Shunt Resistor for Kwh Meter( FL-187)
General:
SHUNT is precision element for the energy meter, adopts the advance technical of plane jointing.
A. Application
Serving in all kinds of electrical meters/ energy meters/ measurement instruments as power measurer.
Manganin Shunt in Energy Meter, Shunt Resistor For Watt-hour Meter, Electrical Meters, KWH Meter component, EBW Shunt.
B. Feature
1. Material: F2 or 6J13 Manganin and pure copper.
2. Welding mode: Braze welding with Ag-based alloy as solder.
3. Resistance value: 200, 250, 300, 350, 400, 500, 600, 700, 800, 1000, 1200, 1600μ Ω .
4. Tolerance standard: ± 5%
5. Shunt type: The shunt should be mountable type with holes for screw fixing
6. Termination: Integrated lead wires are available.
7. Temperature: Independent from temperature variation with low TCR value.
8. Characteristics TC < 50PPM/K
9. Power loss: < 50 milli watt
10. Aging: 10 hours under 120 degrees Celsius
11. Customized designs are available against customer's drawings/samples.
Service Advantage:
1. Design by customer's dimensions
2. ALL kinds of Manganin Shunts
3. High welding technology
4. OEM
5. Favorable price
