Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Diode |
Product Description

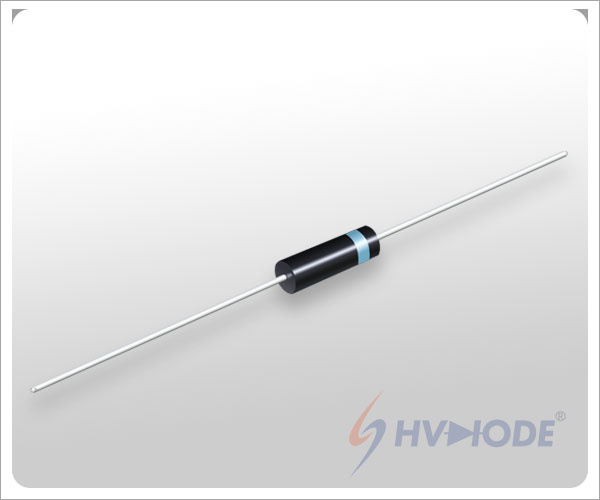

2CL15KV/20mA 100nS Φ 3x12mm
2CL18KV/20mA 100nS Φ 3x12mm
2CL20KV/20mA 100nS Φ 3x12mm
2CL25KV/20mA 100nS Φ 3x12mm
2CL15KV/30mA 100nS Φ 3x12mm
2CL18KV/30mA 100nS Φ 3x12mm
2CL20KV/30mA 100nS Φ 3x12mm
2CL25KV/30mA 100nS Φ 3x12mm
2CL30KV/30mA 100nS Φ 3x12mm
Features:
High reliability, Low leakage current, Anti surge, Impact resistance, Avalanche breakdown protection, High heat resistance
Applications:
Medical Machinery Equipments, X-ray Machines, High Frequency Machines, Laser Equipments, Radar Radio Transmitter, Electrostatic Precipitation, High Voltage Testing Equipments.
The specifications of our HV rectifiers are as follows:
- Voltage range: 15KV to 25KV
- Current range: 20mA to 30mA
- Reverse recovery time: 100nS
If your company is interested in any of our product or order intention, please feel free to contact us.
Anshan SULY Electronics Co., Ltd established in 2008, located in economic& technical development zone, Anshan City, Liaoning province, China, convenient transportation. Our company is key enterprises and research institutions of the State and the pointed producing site for High Voltage Device.
Our company is mainly engaged in X-ray machine with high voltage silicon stack, Pulse power with high pressure of silicon, Power supply of laser with high voltage silicon stack and the whole series of Kenotron, High voltage silicon rectifier stack, High voltage rectifier bridge, High voltage rectification components. Our company is the collection product research and development, the production, the sale in a body.
• The voltage range is from 2KV to 1000KV
• The current range is from 1mA to 100A
• The working efficiency is from 50Hz to 100kHz
Our all products adopt international quality standard, sold in the United States, Russia, Japan, Korea and southeast Asia, and well received by customers.
If your company is interested in any of our product or order intention, please feel free to contact us. We look forward to working with customers around the world to work together to create a better future.
