Product Specifications
| Prod Model: |
2CL70-2CL82 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Diode |
Product Description

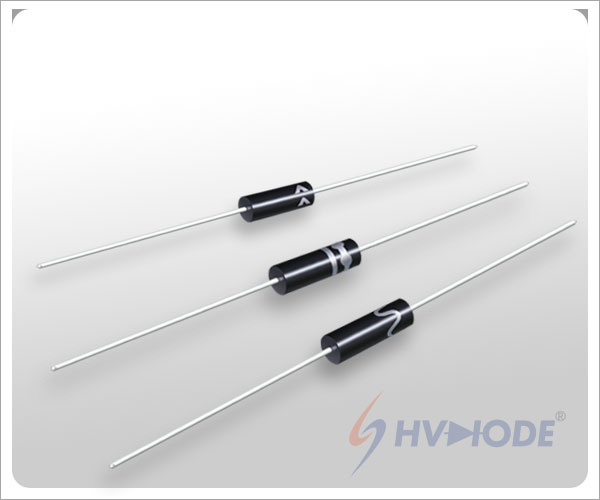

2CL70 6KV/5mA 100nS 3x8mm
2CL71 8KV/5mA 100nS 3x8mm
2CL72 10KV/5mA 100nS 3x10mm
2CL73 12KV/5mA 100nS 3x10mm
2CL74 14KV/5mA 100nS 3x10mm
2CL75 16KV/5mA 100nS 3x12mm
2CL77 20KV/5mA 100nS 3x12mm
2CL79 25KV/5mA 100nS 3x12mm
2CL82 30KV/5mA 100nS 3x12mm
Features:
High reliability, Low leakage current, Anti surge, Impact resistance, Avalanche breakdown protection, High heat resistance
Applications:
Medical Machinery Equipments, X-ray Machines, High Frequency Machines, Laser Equipments, Radar Radio Transmitter, Electrostatic Precipitation, High Voltage Testing Equipments.
The specifications of our HV rectifiers are as follows:
- Voltage range: 6KV to 30KV
- Current range: 5mA
- Reverse recovery time: 100nS
If your company is interested in any of our product or order intention, please feel free to contact us.
Anshan SULY Electronics Co., Ltd established in 2008, located in economic& technical development zone, Anshan City, Liaoning province, China, convenient transportation. Our company is key enterprises and research institutions of the State and the pointed producing site for High Voltage Device.
Our company is mainly engaged in X-ray machine with high voltage silicon stack, Pulse power with high pressure of silicon, Power supply of laser with high voltage silicon stack and the whole series of Kenotron, High voltage silicon rectifier stack, High voltage rectifier bridge, High voltage rectification components. Our company is the collection product research and development, the production, the sale in a body.
• The voltage range is from 2KV to 1000KV
• The current range is from 1mA to 100A
• The working efficiency is from 50Hz to 100kHz
Our all products adopt international quality standard, sold in the United States, Russia, Japan, Korea and southeast Asia, and well received by customers.
If your company is interested in any of our product or order intention, please feel free to contact us. We look forward to working with customers around the world to work together to create a better future.
