Product Specifications
| Prod Model: |
Y30-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Haracteristic

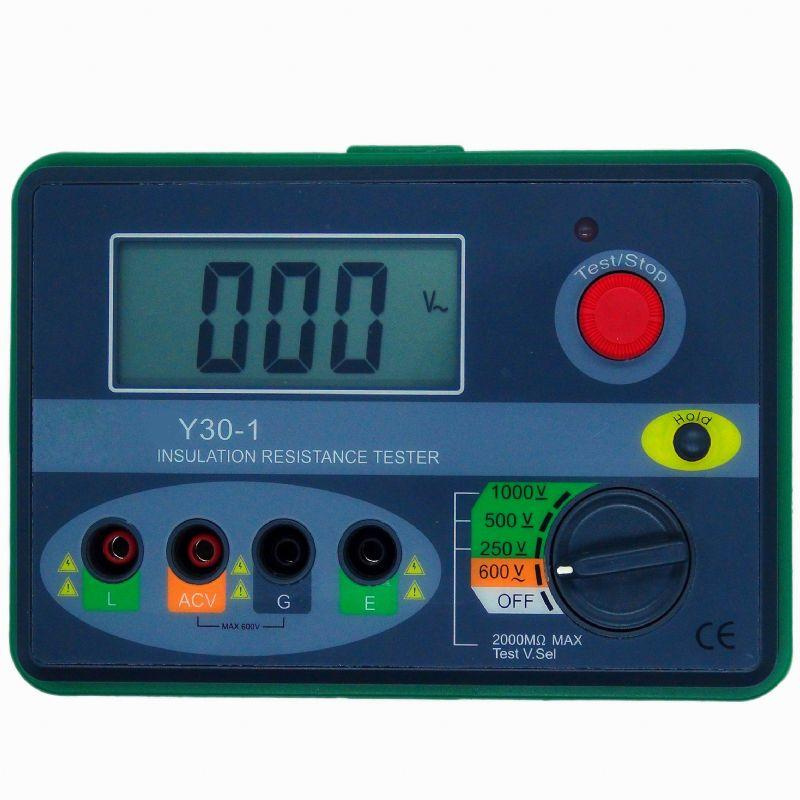

Y30 Intelligent Analogue Display Insulation Resistance Tester adopts embedded industrial single-chip Real Time Operating System, adopts extra-thin tensile-spring header perfect assembled with LCD. It with various output voltage (500V, 1000V, ), high capacity, strong anti-interference ability, pointer display synchronously with data, applies to DC and AC, easy to operate, calculates the insulating index ( absorptance, polarization index), results automatically, without power failure, etc. It is the ideal equipment to test large-capacity transformer, mutual inductor, generator, HV electric motor, power capacitor, cable, lightning arrester and so on.
Technology features
Description:
Rated voltage: 500V/1000V
Testing range: 500V: 0.0~999MΩ , 1000V: 0.0~1.99GΩ ,
Accurcy: ± 5% + 5dgt
DC/AC testing 30-600V
Resolution: 1.0V
Overload Protestion AC 1200V/10second
Withstand Voltage AC8320V/5second
Insulation Resistance 1000MΩ /DC1000V
Line probe: Yes
Usb Trasmission: Yes
Short circuit current: 1.4mA
Polarization Index: Yes
Dar: Yes
Operation Voltage: 12V
Power suply: 8 PCS alkaline battery
Product size: 153*96*220mm
