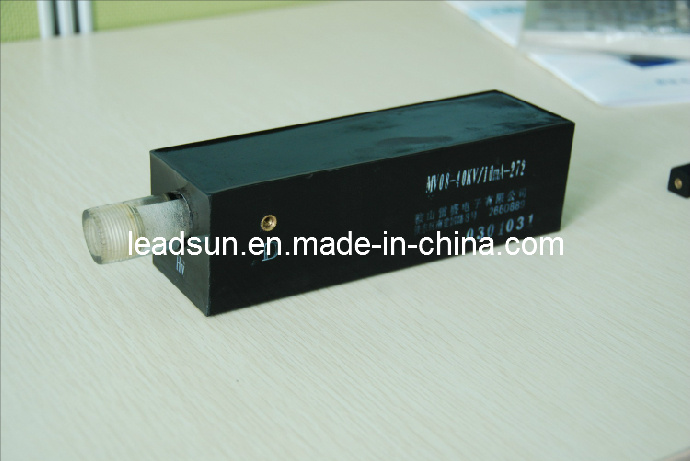

High Voltage Modular

Name: High Voltage Modular
Brand: China-Manufacturer-Directory.com
SKU: 691843642
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 10-15/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MV10-10KV-100KV/0.5mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Surface Molding

Product Description

Leadsun Electronics is a professional manufacturer of HV rectifiers and HV power supplies. As for the HV multiplier, we adopt the high insulated epoxy resin, which can assure the high reliability, the integrated structure is not effected by temperature or shock, which is flexible for connecting to the equips; According to your special requirements, our engineers can supply you proper solutions.

The main specifications are as followings:

AC inputting can over 20KV.
Ultra fast recovery HV diode, working frequency can reach 200KHZ.
DC output can reach 400KV.
High surge current, make sure working in tough conditions.

Type	Multiplications (N)	Max input voltage (KV)	Output voltage (KV)	Max output current (mA)	Max working frequency (KHZ)	Outline dimension LBH mm	Mode of output
MV24-AC12V-80KV/0.1mA	24	12V AC	80	0.1	40		HV cable
MV08-10KV-80KV/0.5mA	8	10	80	0.5	40	1406060	HV cable
MV10-10KV-100KV/0.5mA	10	10	100	0.5	40	1406060	HV cable
MV08-6.5KV-50KV/1mA	8	6.5	50	1	50	Customize	HV terminal
MV16-6.5KV-100KV/1mA	16	6.5	100	1	50	Customize	HV terminal
MV08-6.5KV-50KV/5mA	8	6.5	50	5	50	Customize	HV terminal
MV16-6.5KV-100KV/5mA	16	6.5	100	5	50	Customize	HV terminal
MV08-6.5KV-50KV/10mA	8	6.5	50	10	50	Customize	HV terminal
MV16-6.5KV-100KV/10mA	16	6.5	100	10	50	Customize	HV terminal
MV06-8.5KV-50KV/20mA	6	8.5	50	20	50	Customize	HV terminal
MV12-8.5KV-100KV/20mA	12	8.5	100	20	50	Customize	HV terminal

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
