High Voltage Switch Cabinet, Power Distribution Panel

Name: High Voltage Switch Cabinet, Power Distribution Panel
Brand: china-manufacturer-directory.com
SKU: 767998575
Availability: InStock
Rating: 4.7 (40 reviews)

Supplier:	WORLDWIDE ELECTRIC STOCK CO., LTD.
Price:	US $ 5000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	XGN2-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Altutude:	Below 1000m
Earthquake Intensity:	Lower Than 8 Degrees
Task:	Program
Structure:	Combination
Signal:	Continuous
Function:	Automatic Control
Certification:	CE
Condition:	New
Customized:	Customized

Product Description

Generalization

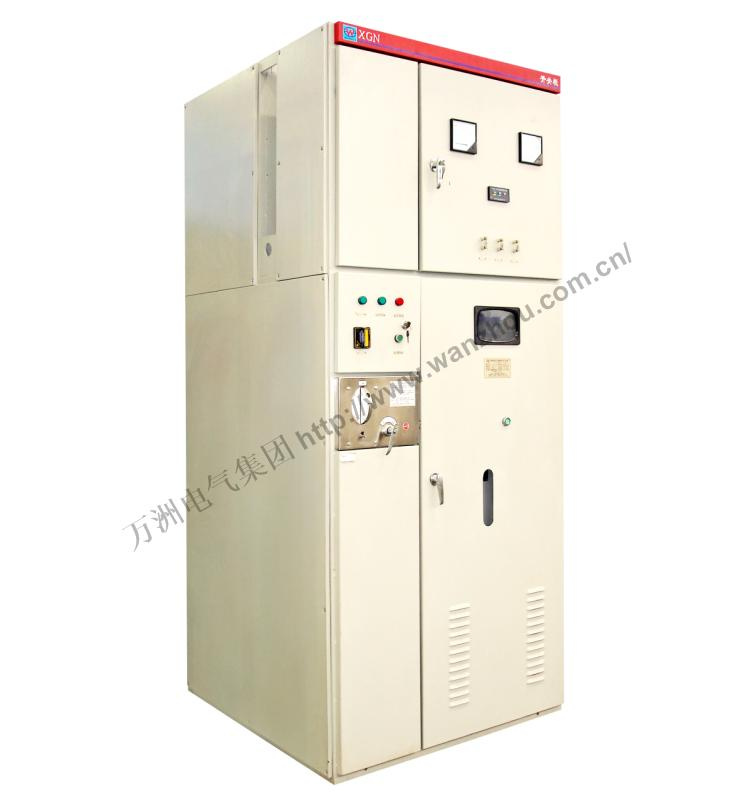

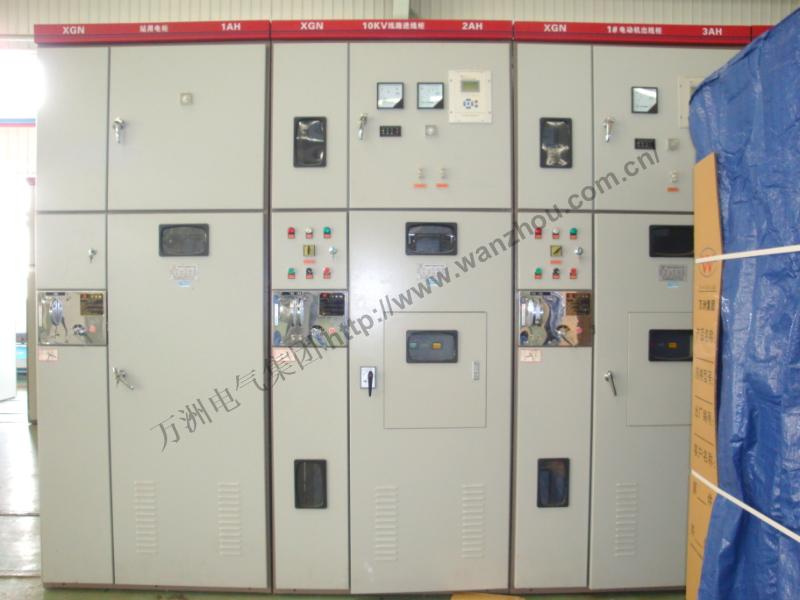

XGN2-12 cabinet style Fixed Metal-Enclosed Switchgear (Switchgear) is mainly used as reception and

distribution of power supply of 3.6, 7.2 and 12KV, 3Phase AC, 50Hz in indoor system. It is specially applied to cases where frequent operations are needed.

The switchgear goes in accordance with State Standard GB3906 and International Standard IEC298 and has strict "five prevention" lock function.

The main switch applies ZN28A-12 segmental type vacuum breaker with Cd10 electromagnetic operational mechanics,

CT8/CT19A (B) spring operational mechanics, ZN28A-12 series integral vacuum breaker

(with CD17 Electromagnetic Operational mechanics, CT17/CT19 spring operational mechanics) or applies ZN63-12(VS1) vacuum circuit breaker. Isolation switch applies GN30-10 rotating style and

GN22-10 high current isolation switch.

Major technical parameters

Major technical parameters of Switchgear (table 1)

No.	Name		Unit	Data
1	Rated Voltage		KV	3,6,10
2	Rated Current		A	630,1000,1250,1600, 2000,2500,3150
3	Rated Frequency		Hz	50
4	Rated short-circuit current(valid value)		kA	20, 25	31.5	40
5	Rated ripe stable current (peak value)		kA	20, 25	31.5	40
6	Rated dynamic stable current(peak value)		kA	40	80	100
7	Rated power frequency tolerant voltage	Inter-polar /polar to ground	kV	42
		Inter-fracture	kV	48
8	Rated lightening shock tolerance voltage	Inter-polar /polar to ground	kV	75
		Inter-fracture	kV	85
9	Rated thermal time		s	4
10	Protection degree			1P2X
11	Outline dimensions		mm	110012002650 (see the note)

Major parameters of vacuum breakers (table2)

No.	Name	Unit	Data
1	Rated voltage	kV	12
2	Rated current	A	630,1000,1250,2500,3150
3	Rated frequency	Hz	50
4	Rated short-circuit switch off current(valid value)	kA	20,25,31.5,40
5	Rated ripe stable current (peak value)	kA	20,25,31.5,40
6	Rated short-circuit switch on current (peak value)	kA	40,50,80,100
7	Rated peak value tolerance current (peak value)	kA	40,50,80,100
8	Rated power frequency tolerance voltage	kV	42/1min-Inter-polar polar to ground; 48/1min-Inter-fracture
9	Rated lightening shock tolerance voltage	kV	75-Inter-polar polar to ground; 85-Inter-fracture
10	Rated short-circuit last time	S	4
13	Rated capacitance groups switch off current	A	630
14	Rated back to back capacitance group switch off current	A	400
15	Times of rated short-circuit switch off current	time	30
16	Mechanical life	time	10000

Conditions for use

Environment temperature: -25ºC to +40ºC

Relative humidity: daily average ≤95% monthly average≤90%

Height above sea level: ≤1000m

No fire, explosion danger, serious pollution, chemical erosion or severe quake.

Earthquake magnitude ≤8
