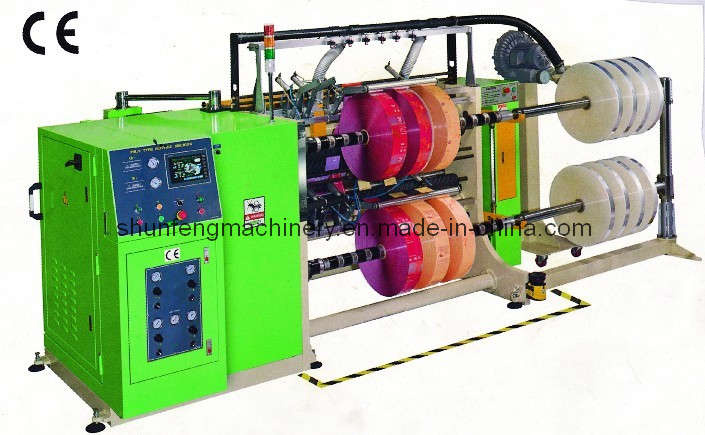

Hight Speed Slitting Machine Rewinding Machine (CE) (GFQ-1300B)
Features
1. The electrical control system is controlled centralizedly by imported PLC. It has touch screen. It can set and show different work parameters in accordance with different products.
2. The transmission of unwinder/winder adopts vector converter, realizing automatic tension control through PLC automatically calculating reel diameter.
3. Unwinding loading and unloading adopts shaftless top type.
4. The system is equipped with automatic stroboscopic instrument for observing printed pattern. If defective pattern is observed, it can be turned back automatically by pressing the defect button. (----this is optional )
5. Unwinding automatic correction
6. Waste air-conveying device
Hight Speed Slitting Machine, Rewinding Machine Technical Parameter
1. Applied substrate: Thin film and composite membrane 12-180UM, PE and PVC for 40-150UM
2. Maximum mechanical speed: 320m/min
3. Maximum checking speed: 300 m/min
4. Maximum cutting speed: 300 m/min
5. Width range of unwinding: 500-1300 mm
6. Maximum width: 1, 300 mm
7. Cutting width: 50-1300 mm
8. Maximum diameter of unwinding/winding: 600 mm
9. Maximum load of unwinding: 500 kg
10. Maximum load of winding: 300 kg
11. Width of machinery inner cavity of machine: 1540 mm
12. Internal diameter of substrate paper core: 3-inch (internal diameter 76 mm external diameter 92 mm)
13. Corrective accuracy: 0.4mm
14. Tension setting: 2 -30 kg
15. Power of unwinding motor: 4kw
16. Power of winding motor: 7.5kw (single motor)
17. Total power: 13 kw
18. Weight of machine: About 3000 kg
19. Dimension: 3300 (L) X 2400 (W) X 2000 (H) mm
20. Color: Milky white (other colors available)
PLC High Speed Slitting Machine
PLC Controlled High Speed Slitting and Rewinding Machine(Please see the Video of this machine in My Video Menu on the Left)
Uses:
The machine applies to cellophane. PET. OPP. CPP. PE. PS. PVC and computer security labels. Electronic computers. Optical materials. Film roll. Foil roll. All kinds of paper rolls. Film and printing of various materials to slitting.
Features:
1. Unwinding unit: It adopt non-axial Air pressure and get way with Air Chuck. Who is caught taking raw materials fast. Easy loading. Single-person operation.
EPC (Edge position control) use imported LPC corrective device. It can achieve guide function by material edge as well as printed mark.
Unwinding tension through an independent vector variable frequency electrical parameters of the original pre-computing to achieve a constant tension.
2. Slitting Unit: This machine equipped with two kinds of slitting method: Flat knife slit and circular knife slit
3. Winding Unit: It use of three motor winding way. Rewinding shaft is import slip shaft that 's pressure in center by pneumatic; With automatic tension compensation system. So that rewinding tension is steady. Don't adjust tension in accordance with the speed and diameter increases.
4. Winding sticks pressure unit: The machine is equipped with two sets of pneumatic pressure automatic lifting sticks. Tension automatic control by computer.
5. Waste edge processing section: This model is equipped with a vacuum-type waste edge exclusion system. Use the strong force adsorb the waste edge out away
6. Electrostatic elimination Unit: The machine equipped a group of static brush apart on up and down rewinding shaft. Which can effectively eliminate the static between slitting and rewinding.
7. Finished Produce unloading Unit:
It is a discharge rack can provide a larger diameter of the finished product is simple and efficient to operate and save time for the next feed.
8. PLC control system: Adopt imported PLC to achieve accurate and stable control. True color touch screen display to enable simple and beautiful images.
Optional:
1. Discharge hydraulic lift structure
2. Static elimination brush
3. Servo motors
4. Laser tube function on paper
Jumbo roll width |
1000mm |
1300mm |
Diameter of roll |
1000mm |
1000mm |
Diameter of rewinding |
600mm |
600mm |
Inner dia. of paper core |
3' ' or 76mm(optional: 6' ' or 152mm) |
3' ' or 76mm(optional 6' ' or 152mm) |
Slitting speed |
10-400m/min |
10-400 m/min |
Tolerance of EPC |
≤ 0.1mm |
≤ 0.1mm |
Min. width of produce |
30mm |
30mm |
Total power |
20KW |
20KW |
Weight |
3800Kg |
4500kg |
overall dimension (L X W X H) |
2400mmX4200mmX1900mm |
2700mmX4500mmX1900mm |
