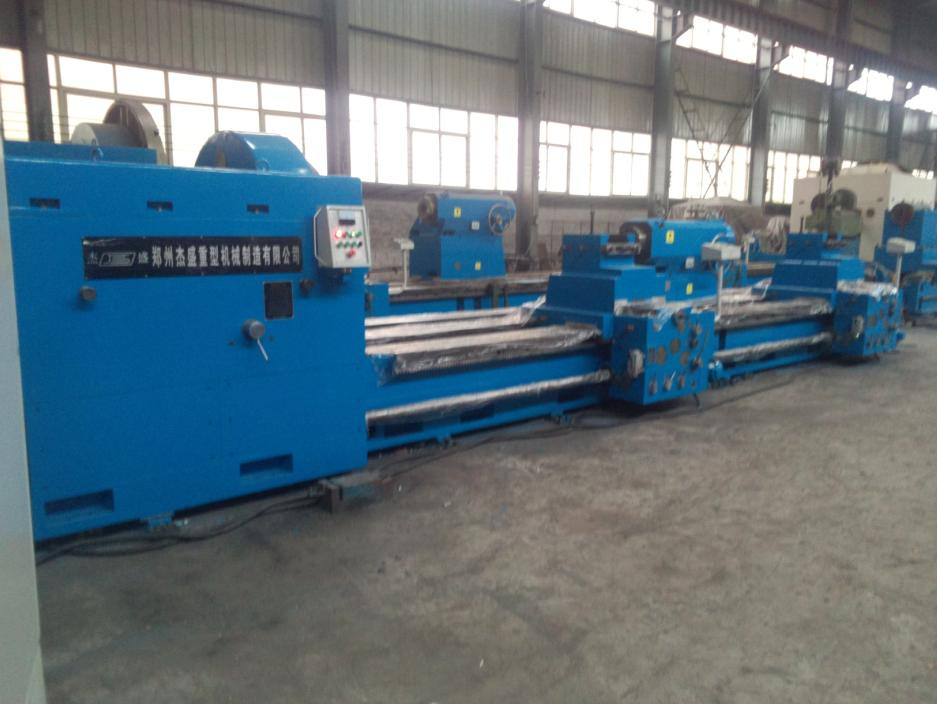

Horizontal Bench Lathe Machine Tool Manufacturing C61250

Product Specifications

Prod Model:	C61250
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Diameter Over Bed:	2500mm
Max Swing Diameter Over Carriage:	2000mm
Max Length Of Workpiece:	3-20m
Max Weight Of Workpiece:	32t
Type:	Horizontal Lathe
Tool Holder:	Double-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Manual
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Normal Lathe Machine

Product Description


Specifications
heavy duty horizontal lathe machine C61250
Max.length of workpiece :6-20M;
Max.weight of workpiece 32T;


Horizontal Lathe (C61140,C61160,C611200,C61240) Main Feature:
1. This series lathes are chiefly suitable for various cutting jobs,such as internal and external cylindrical surfaces turning,fachingand varopis lomds pf tjreads cittomg.The compound rest slide can be used individually by power for cutting a 300mm taper surface,or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.They can also be used for drilling ,boring trepanningHorizontal Lathe Horizontal Lathe Horizontal Lathe.
2. This machine is equipped with an oil pump,forced lubrication as well as rapid traverse ,terminal end insurance.
3. Cutting of size control by travel stop power,latch hook of tailstock and safeguard against excess load etc.
4. The power,speed and rigidity of the machines can fairly meet the needs of both heavy and finish machining.
5. These machines have features of fine appearance,concentrated control arrangment for easy operating and convenient maintenance.
Horizontal Lathe (C61140,C61160,C611200,C61240) Usage range:
a. Turning the internal and external cylindrical surface and plane
b. Turning internal and external conical surface,
c. Grooving
d. Head face
e. Severance
Horizontal Lathe Export Market:
Malaysia, Brazil, Vietnam, Iran, India, Indonesia, Qatar, Poland, South Korea, Korea, Mexico, Saudi Arabia, etc.
Certificate:
a.European CE certificate
b. ISO9001:2008 quality management system
Horizontal Lathe Horizontal Lathe Horizontal Lathe




Lathe Machine FEATURE: This is type of universal lathe which bearing thirty-two Ton, it is applicable to turning external and internal cylindrical surface, oil grooves, cutting off, boring hole, turning inside and outside conical, cylindrical and discoid parts to axes parts of different materials with high-speed steel and hard alloy steel cutters, and it can turn different kinds of screw thread which length short of 600 mill metric with top knife carrier.This machine tool bed structure is integral BOX-shaped and three strip rectangle guide way, and it is found once by high quality cast iron(HT300), through two-aged processing , stability is good; Width guide way suiface (1250mm),good rigidity ,strong anti-vibraton ability;it is accurate ground by import guide way grinder.





MODEL	Unit	C61250/32T
Max. swing dia over bed	mm	2500
Max. weight of workpiece	ton	32
Max.workpiece  length	mm	3000-18000(according to the customers' needs)
Swing over carriage	mm	2100
Form of bed guide way		3 slideway
Span of guideway	mm	1600
Spindle speed		steplessspeedregulation
Spindle speed and range	r/min	0.8-160
Taper hole of spindle		120(tapered  1-7)
Face chuck diameter	mm	1600/1800(special)
Feed moton level	mm/r	18 step
Range of lonitudinal feed		0.125-48
Range of cross feed and feed range of tool slede compound	mm	0.063-24
Metric thread	mm	2-40
Inch thread		1~14
Moudle thread		1.5-20
Max.travel of cross slide	mm	800
Max.travel of top slide	mm	600
Diameter of tailstock quill	mm	300
Travel of tailstock quill	mm	300
Taper hole of tailstock quill	mm	100(tapered  1-7)
Length	mm
Width	mm	2500
Hight	mm	2300
Weight	kg	45000-60000
