Product Specifications
| Prod Model: |
c61315 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Swing Diameter Over Bed: |
3150mm |
| Max Swing Diameter Over Carriage: |
2500mm |
| Max Length Of Workpiece: |
3-20m |
| Max Weight Of Workpiece: |
32t |
| Type: |
Horizontal Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Normal Lathe Machine |
Product Description
Specifications

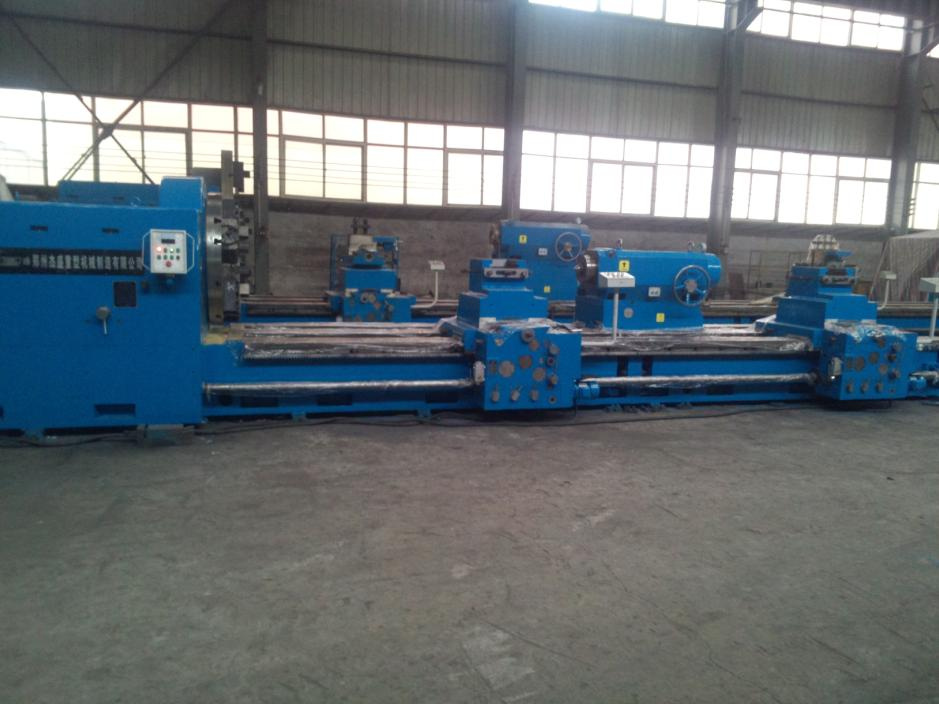

heavy duty horizontal lathe machine C61315
Max.length of workpiece :5-20M;
Max.weight of workpiece 75t;
Width of bed: 2500mm
1,Features
This series of machines are universal engine lathes, they are suitable for cutting swing work pieces, such as external cylindrical surfaces turning, internal hole, taper and thread machining etc.
Three guide ways have been adopted; it has features of strong rigidity, heavily loading capacity and good accuracy.
DC driving is used by main driving of the machine, full digital DC variable speed, 3 grade mechanical or hydraulic speed change has been equipped, spindle speed range1:200 may be got.
Feed driving is connected with the main driving; the carriage has function of rapid traverse and combining feed.
Built-in living center has been selected by the tailstock; it has characters of heavily loading capacity, 2grade manual traversing functions, traversing of tailstock is motorized, easy for operating.
Double-row short cylinder roller bearing is used by spindle bearing, it has high accuracy, and radial clearance may be adjusted by it.
Steady test, supporter, grinding head, milling head and other accessories all can be provided according to customers requirement.
technical parameter
Specifications |
Mode- C61315 |
Unit |
Max. swing diameter over bed |
3150 |
mm |
Max. turning diameter over carriage |
2500 |
mm |
Max. length of workpiece |
5-20 |
m |
Max. weight of core clamper workpiece |
32/40/63/80/120/160/200 |
t |
Faceplate diameter |
3150 |
mm |
Max. torque of faceplate |
160 |
KN.m |
Range of spindle speeds |
0.5-100
0.4-80 |
r/min |
Max. cutting force of knife rest |
160 |
KN |
Feed range of knife rest (Vertical) |
2-4500 |
mm/min |
Feed range of knife rest (Horizontal) |
2-4500 |
mm/min |
Quice travel of knife rest (Vertical) |
4500 |
mm/min |
Quice travel of knife rest (Horizontal) |
4500 |
mm/min |
Lateral movement distance of knife rest |
1250 |
mm |
Travel of tailstock tube |
300 |
mm |
Power of main motor |
55/75/90/110/125/132/160 |
Kw |
