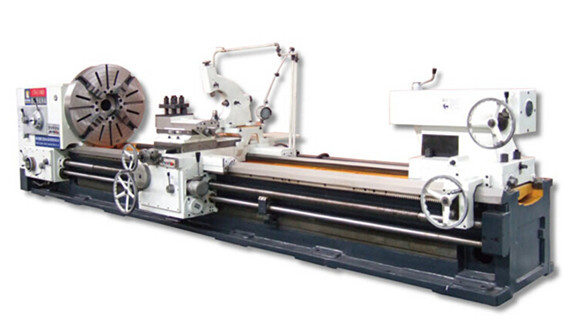

Horizontal Heavy-Duty Lathe Machine (Heavy duty lathe Cw61100d Cw62100d Cw61125D Cw62140d Cw62160d)

Horizontal Heavy-Duty Lathe Machine (Heavy duty lathe Cw61100d Cw62100d Cw61125D Cw62140d Cw62160d)
Supplier: Tengzhou L&T Machine Tool Co., Ltd.
Price: US $ 1/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: CW61100D CW61125D CW61140D CW61160D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore: 130mm
Max.Swing Diameter Over Bed: 1040 1290 1440mm
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision
Tool Holder: 4 Way Tool Post

Product Description

These lathes can perform to turn end-faces,cylindricle surfaces and internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Stand Accessories
1. four-jaw chuck F 1000mm 1set 2. steady rest F70--480mm(for more than 2m) 1set 3. follow rest (for more than 2m) 1set 4. Morse 6# centers 1set 5. center sleeve 1set 6. tools 1set 7. foundation screws 1set 8. steady restF 400--700mm 9. four-jaw chuck F 1250mm
Special Accessories
1. Taper-turning device 2. Metric chasing dial device 3. Inch chasing dial device 4. Inch lead screw 7. T-type tool post
MODELCW61100D CW62100DCW61125D CW62125DCW61140D CW62140DCW61160D CW62160D
Max.swing diameter over bed1040mm1290mm1440mm1640mm
Max.swing diameter over carriage650mm900mm1030mm1030mm
Max.swing diameter on gap1500mm1750mm1900mm2100mm
Width of bed755mm
Max.length of workpiece1000mm 1500mm 2000-12000mm
The top two largest bearing6t
Spindle noseA15(1:30)
Sindle bore diameter130mm
Taper of spindle boreMetric No.140#
Range of spindle speed3.15-315r/min 21kinds 3.5-290r/min 12kinds
Spindle front bearing inner diameter200mm
Longitudinal feeds range0.1-12r/min 56 kinds
Transversal feeds range0.05-6mm/r 56kinds
Rapid speedZ-axis3740mm/min
X-axis1870mm/min
upper toolpost935mm/min
Metrec threads range1-120mm 44kinds
Inch threads range3/8-28 TPI 31kinds
Module threads range0.5-60mm 45kinds
Pitch threads range1-56TPI 25kinds
Taper of tailstock sleeveMorse NO.80
Diameter of tailstock sleeve160mm
Travel of tailstock sleeve300mm
Main motor power22kW
Rapid motor power1.5kW
Coolant pump power0.125kW

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
