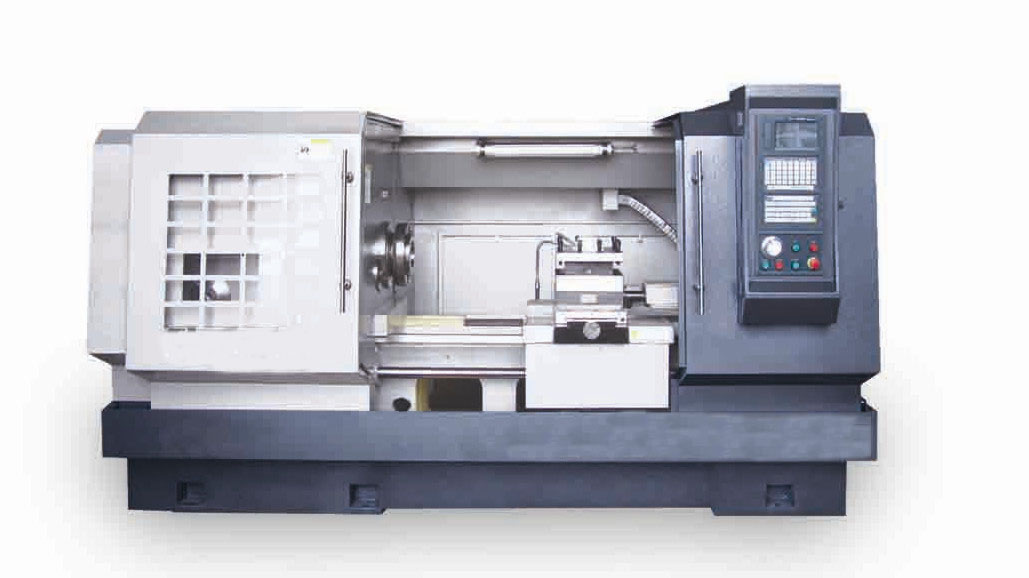

One -Piece Casting Hard Guide Way CNC Lathe Machine Ck6185e 61100e

Product Specifications

Prod Model:	CK6185E CK61100E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed:	850/1000 mm
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools

Product Description

This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous  metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
FEATURES
1.guide width 600mm
2.higher stability one-piece machine bed
3.3 gear spindle speed, stepless in gear
4.higher rigidity pedestal
5.wider layer board
6.integrated automatic lubrication system


Standard Accessories	Optional Accessories
GSK980TDC or Siemens 808d NC system 11kw inventer main motor 4 station electric turret 400mm manual chuck manual tailstock automatic integrated lubrication system coolant system lighten system	Fanuc 0I mate TD NC system 6 station or 8 station electric turret steady rest follow rest 11/15 kw servo motor 15 kw inverter motor 15" domestic  thru-hole hydraulic chuck 15" Taiwan  thru-hole hydraulic chuck Full enclosed cover



PECIFICATION


Specification	CK6185E	CK61100E
Max. swing over bed	850mm	1000mm
Max. swing  over cross slide	480mm	660mm
Max. processing length	1000/1500//2000/3000/4000mm	1500//2000/3000/4000/5000mm
Spindle transmission type	three-gear, step-less in gear	three-gear, step-less in gear
Spindle speed steep	step-less	step-less
Spindle nose	C11	C11
Spindle bore	Φ105mm	Φ130mm
Spindle taper	120 1:20	140 1: 20
Spindle motor	11KW	15KW
Max. tool-post travel	X:500mm	X:530  mm
Ball screw dia. and pitch	X:Φ32*5 Z:Φ50*10	X:Φ32*5 Z:Φ63*10
Rapid feed speed	X:4000mm/min  Z:5000mm/min	X:4000mm/min   Z:5000mm/min
Position accuracy	X:0.025mm Z:0.03mm	X:0.025 mm  Z:0.03mm
X,Z axes repeatability	X:0.01 mm Z:0.015mm	X:0.01mm Z:0.015mm
Processing accuracy	IT6-IT7	IT6-IT7
Workpiece surface roughness	Ra1.6	Ra1.6
Tailstock sleeve dia.	Φ100mm	Φ100mm
Tailstock sleeve travel	250mm	250mm
Tailstock sleeve taper	MT6#	MT6#
Tool-post	4 station electric turret	4-statin electric turret
Tool-post at optional	6 station or 8 station electric turret	6-station or 8-station electric turret
Toolbar section size	32*32mm	40*40mm
Controller	GSK980TDC	GSK980TDC
Controller at optional	KND, FANUC, Siemens	KND,FANUC,Siemens
