| Supplier: | Qingdao Shengtuo Jichuang Co., Ltd. |
|---|---|
| Price: | US $ 22000-23000/Set |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

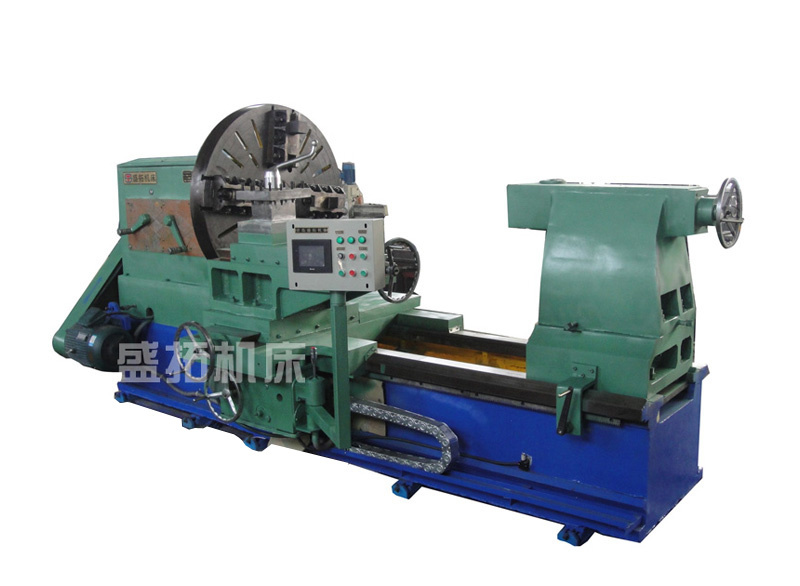

| Prod Model: | ST-CW61180 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stype: | Horizontal Lathe |
| Color: | Yellow and Bule |
| Processing Diameter: | 1800mm |
| Packaging: | by Customer Require |
| Freight: | by Customer Require |
| Type: | Floor Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Semiautomatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
| Processing Accessory: | Chuck Lathe |
| Item | ST-CW61180 | Unit |
| Max.swing diameter of workpiece | 1800 | mm |
| The cross-feed travel of slide carriage | 1400 | mm |
| The longitude-feed travel of slide carriage | 5000 | mm |
| Maximum swing of work piece over bed | 1400 | mm |
| Maximum swing over slide carriage | 1000 | mm |
| Max.length of workpiece | 5000 | mm |
| Max.weight of workpiece | 2500 | kg |
| Chuck diameter | 1500 | mm |
| The quantity of the chunk jaws | 4 | set |
| Number of spindle speeds | 6 | level |
| The spindle diameter | 190 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 13~103 | r/min |
| Guideway width | 850 | mm |
| Power of main motor | 11 | KW |
| Power of feed motor:1.1kw | 1.1 | KW |
| Adjusting mode of feed motor | stepless | |
| Machine power supply | 380v,50HZ,3P | |
| Overall dimensions | 7700×1800×1800 | mm |
| Lathe weight | abouit 8 | t |
| Standard configuration: 1 set of headstock,1 bed and 1 set of carriage, 1 piece of chuckΦ1200mm with 4 jaws(350mm-long per jaw),1 tailstock,1pieces of chuck wrenche. | ||
| Optional Configuration:1 piece of chuck Φ1000mmwiht 3 jaws or 4 jaws,1 main motor(11kw level6), 1 extended bed,Digital display system. | ||
| Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). | ||
