| Supplier: | Qingdao Shengtuo Jichuang Co., Ltd. |
|---|---|
| Price: | US $ 23000-25000set |
| Min Order: | 1set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

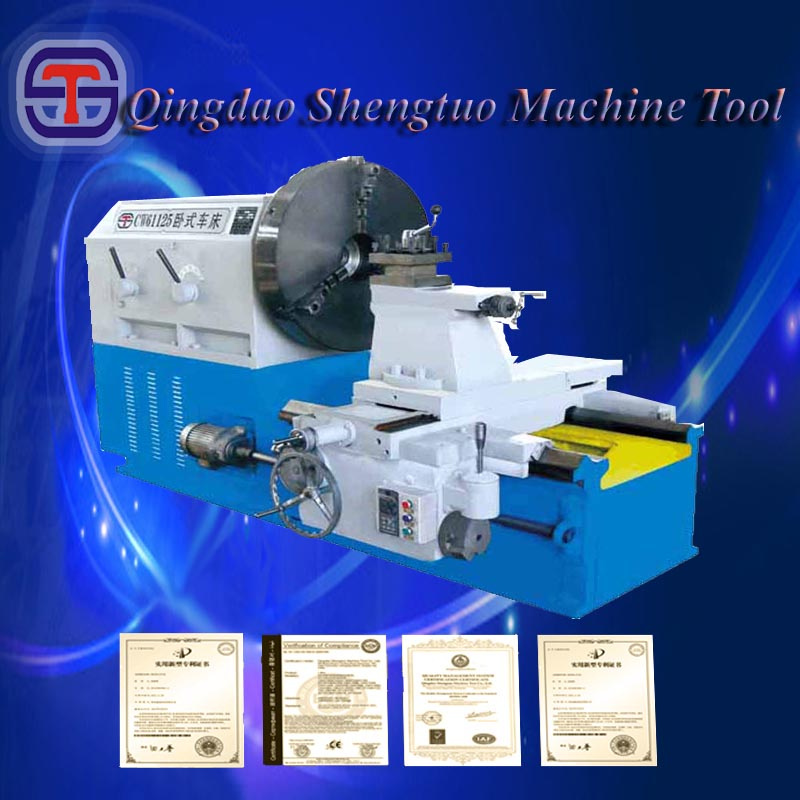

| Prod Model: | ST-CW61125 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Diameter: | 1600mm |
| Max. Length Of Processing: | 400mm |
| Max. Weight Of Machining: | 3000kg |
| Freight: | by Customer Require |
| Packaging: | by Sea |
| Type: | Floor Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Automatic Grade: | Semiautomatic |
| Setting Mode: | Floor-type |
| Precision: | Precision |
| Controlling Mode: | Hand / Auto |
| Item | ST-C6016 | Unit |
| Type of machine | Facing Lathe | |
| Max. swing diameter of workpiece | 1600 | mm |
| The cross-feed travel of slide carriage | 800 | mm |
| The longitude-feed travel of slide carriage | 400 | mm |
| Max. length of workpiece | 400 | mm |
| Max. weight of workpiece | 3000 | kg |
| Chuck diameter | 1200 | mm |
| The quantity of the steel jaws | 4 | set |
| Number of spindle speeds | 6 | level |
| Spindle diameter | 190 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 21~216 | r/min |
| Power of main motor | 11 | KW |
| Power of feed motor | 1.1 | KW |
| Adjusting mode of feed motor | stepless | |
| Machine power supply | 380v,50HZ,3P | |
| Overall dimensions | 2800× 2000× 1800 | mm |
| Lathe weight | about 5 | t |
| Standard configuration:1 headstock, 1piece of 4-jaw(350 mm-long per jaw) chuck Φ 1200mm, 1 piece of chuck wrench, 1 bed(1.36m-long), 1 base, 1 main motor(11kw), 1 feed motor. | ||
| Optional configuration: Extended bed and floor,chuckΦ1400mm,1600mm and 500mm-long jaws. | ||
| Specific Notice: Customers can customize the lathes according to their workpieces. | ||
