Product Specifications
| Prod Model: |
MSQ30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| -: |
- |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HUYU
Model Number:
MSQ
Usage:
Current
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
Autotransformer
Packaging & Delivery
Packaging Details:
standard export cartons
Delivery Detail:
within 20 days
Specifications

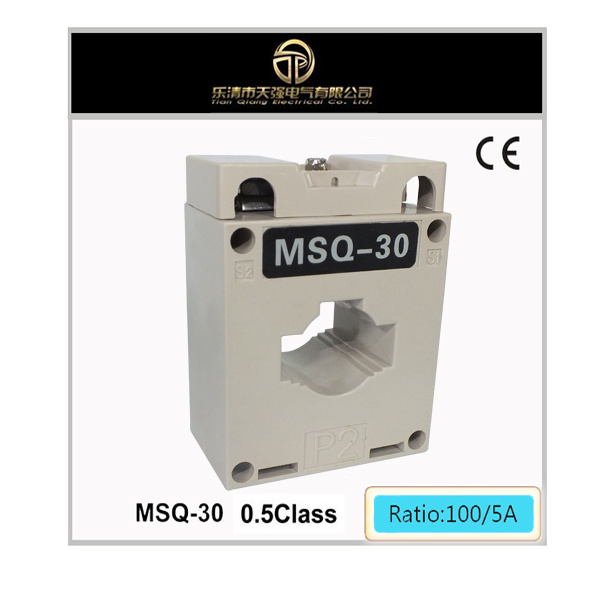

MSQ series current transformer
1.CCC,ISO,CE approved
2 Frequency: 50Hz/60Hz
3.OEM allowed...
Model Number: MSQ-30
Technical data:
1 The current transformers are made according to IEC-185 standard
2 Class of accuracy:1.0(see table)
3 Rated voltage:600V(see table)
4 Rated sec:current 5A(or 1A on request)
5 Security factor:FS5
6 Working temperature range: -20°C-+45°C
7 ABS plastic case, toally enclosed, built-in cover, and several ampere outputs at secondary side iron plate for fixing metal housing-2pieces -1,iron bar and screw for fixing copper bar-3 pieces
Outline drawing of MSQ Unit:mm
Model A B C D E F G H
MSQ-30(small) 60 36 67 17 60 31 10 59
MSQ-30 75 43 82 17 60 31 10 71
MSQ-40 75 43 82 17 60 31 10 71
MSQ-60 101 44 111 17 60 31 10 71
MSQ-100 145 45 139 17 60 31 10 72
MSQ-130 196 46 210 17 60 31 11 72
