Product Specifications
Prod Model: |
CJK6150B-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Cast Iron |
Place Of Origin: |
China |
Processing Type: |
Metal |
X,Z Motor Type: |
Servo Motor |
Power Supply: |
Three Phase 380V/50Hz |
Warranty: |
1 Year |
Type: |
Horizontal Lathe |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Power Source: |
Electric |
Setting Mode: |
Floor-type |
Controlling Mode: |
CNC |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description

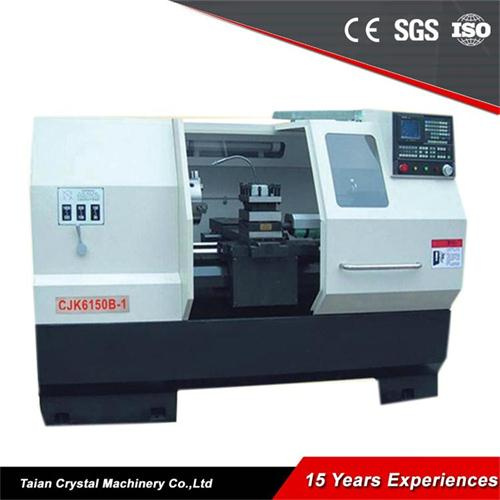

CJK6150B-1 CNC LATHE MACHINE
A. Main features
1. after the lead rail of the machine is treated by super audio quenching and
finish grinding and plastic coating, it is of good rigidity and stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower
noise and high standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with
smooth surface. The extra size diameter of the spindle bore isφ82mm while the
diameter of chuck is φ250mm.
B. Standard Configuration and Specifications
1. GSK-928TDL
2. Three-jaw Chuck
3. 4-Station Electric Turret
4. Manual Tailstock
5. Automatic Lubrication System; Cooling System; Lighting System
ITEMS | Specifications |
Max. swim over bed | Φ500mm |
Max. swim over carriage | Φ280mm |
Max. length of work piece | 1000mm |
Width of the machine | 390mm |
Size of the three-jaw chuck | 250mm |
Range of spindle speed | 20-100,100-550,400-1600rpm |
Spindle bore | Φ82mm |
Taper of spindle bore | 1:20/ Φ 90 |
Max. size of tool post | 25×25mm |
Stations of tool carrier | 4/6/8/or gang-type tool carrier |
Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill | MT5 |
Max. range of tailstock quill | 150mm |
Motor power | 7.5KW |
Packing size(length×width×height) | 2400 mm×1400 mm×1740mm |
Net weight | 2600/2700kg |
C. Instructions of other devices
Brands of standard configuration of CNC | GSK and KND |
Structure style of spindle | Three gear by one handle, step-less speed regulation |
Protective cover and door | metal plate cover and double protective door |
Position of CNC system | on the right side, right-left move |
lighting system | standard T8 fluorescent lamp |
Cooling system | water cooling |
Lubrication system | automatic lubrication controlled by microcomputer |
Brands of motor-driven tool carrier | Hongda and Sanhe |
Type of cabinet base | separated type |
D. Peculiar setup
Optional brands of CNC systems | SIEMENS,FANUC |
Optional types of the tool post | horizontal 6-station, horizontal 8-station |
Optional types of the workpiece clamping | hydraulic chuck,pneumatic chuck,spring chuck |
Optional types of the tailstock | Hydraulic tailstock,pneumatic tailstock |
Optional patterns of feeding | Automatic Bar feeding(Customized programs alone) |
