Product Specifications
Prod Model: |
DM7641R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Transfer Rate: |
150Mbps |
Ports: |
≤4 |
Firewall: |
Firewall |
Application: |
SOHO |
Type: |
Wireless |
Network: |
WCDMA/UMTS/HSDPA/HSUPA, GSM/GPRS |
Product Description

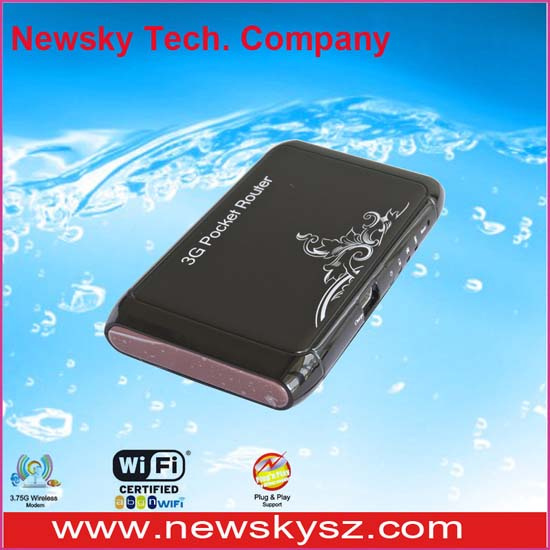

1. 3G pocket router
2. Built-in 3G HSUPA
3. Fast speed wireless-N 802.11b/g/n
4. Lithium Battery (1500mA)
5. Worked with SIM card inserted
Product Name: 3G HSUPA USB Wireless WiFi router
Model No: DM7641R
Features
1. Fast speed Wireless-N 802.11b/g/n
2. 3G Mobile Broadband to Wireless(Buitl-in HSUPA module)
3. Call by PSTN Phone
4. UMTS Band: Tri-band HSUPA 850/1900/2100MHz
5. GPRS/EDGE Band: 850/900/1800/1900MHz
6. HSPA/WCDMA Data Rate: 7.2Mbps downlink and 5.76Mbps uplink
7. WLAN: 802.11b/g/n
8. LAN: Eternet 10/100Mbps
9. PSTN Phone: RJ11
10. Standard: IEEE802.11b, IEEE802.11g, IEEE802.11n
11. Lithium Battery: 5V1A, USB-powered, 1500mAh
12. Networking: WCDMA/UMTS/HSDPA/HSUPA, GSM/GPRS,
13. 3G Card: Built-in 3G module
Specifications
1. Working frequency:
WCDMA/UMTS/HSDPA/HSUPA: 850/900/1900/2100MHz, 7.2Mbps/5.76Mbps
GSM/GPRS/EDGE: 850/900/1800/1900MHz
EVDO: 800/1900MHz, Release A, 3.1Mbps/1.8Mbps
HSDPA: 2100MHz, up to 2.8Mbps, GSM/GPRS/EDGE 900/1800MHz
WLAN: IEEE802.11b/g/n, Speed up to 150Mbps(upgrade to 300Mbps in the future)
2. Ports:
Internet Settings: WAN(Configure parameters automatically according to relative Networks), LAN, DHCP Clients, Advanced Routing, Qos
Wireless Settings: Basic Settings, Advanced Settings, Security Settings, WDS, Station List
Firewall: MAC/IP/Port Filtering, Port Forwarding, DMZ, System Security, Content Filtering
Interface: One power switch button, One reset button, One mini USB port(to charge the Battery), One SIM card slot
3. Power Consumption:
Indicator: One power status LED, One charge status LED, One WiFi network status LED, One 3G network status LED
Power Supply: Lithium Battery (1500mA)
4. Dimension and Weight
Dimension: 94mm× 54mm× 13mm
Weight: About 100g
Temperature: Work Temperature -10° C ~ +55° C,
Storage Temperature -20° C ~ +70° C
Humidity: 5% ~ 95%
