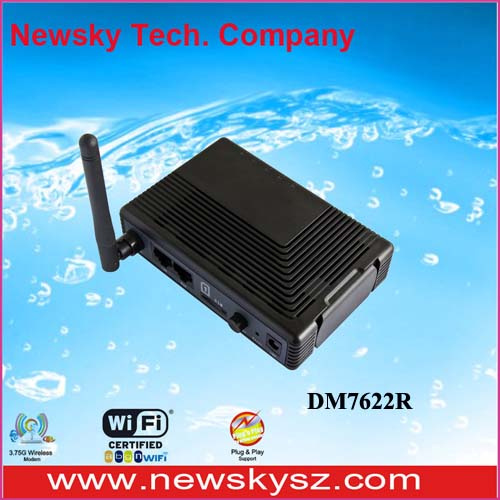

Strong Signals 3G Wireless Router with SIM Card Slot, Support ADSL (DM7622R)
Product Specifications
| Prod Model: |
DM7622R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Port Structure: |
Modular |
| Network: |
WCDMA |
| Transfer Rate: |
150Mbps |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Type: |
Wireless |
| Ports: |
1 |
Product Description
Product Name: HSUPA wireless 3G WiFi Router with SIM Card Slot
Model No: DM7622R
Features:
1. Built-in HSUPA wireless module, just insert the service provider SIM card
2. HSUPA Tri-band: 850/1900/2100MHz for 7.2Mbps downlink and 5.76Mbps uplink
3. EDGE quad-band: 850/900/1800/1900MHz for 236.8Kbps downlink
4. Supports WiFi speed rate up to 54Mbps
5. Supports ADSL, static IP, dynamic IP
6. NAT&NAPT with VPN pass-through Virtual Server
7. Automatic receipt of IP address with DHCP Server
8. Supports the high-speed gateway
9. Supports multi-users
10. Simple handling and management over web interface
11. Security through WEP, WPA and build-in firewall
12. No SW installation necessary
13. Supports Routers and Gateway Server Applications, wireless up to 32 PC users
1. Technical Specifications
LED Indicator x 5(PWR, 3G, WiFi, WAN & LAN)
Compliance to 802.11b/g standard with 100mV transmission power
Wireless Access Point &Router
WPS
MAC Clone
WEP 64-bit/128-bit Encryption WPA-PSK/WPS2-PSK
Radius Server
2. Ports:
DC Power Input x 1 9V 1A (12V CAR USE)
10/100 Ethernet RJ-45 x 1
10/100 Wan RJ-45 x 1
SMA Antenna Connector x 2(WiFi, EVDO)
UIM card slot
3. Environment Requirements:
Operating Temperature: -20° C to +70° C
Humidity: 95% (non-condensing)
4. Power Consumption:
Power Supply: 3.4V-4.2V
Output Power:
11n 13dBm
11g 15dBm
5. Standard Package Contents:
DM7622R Router
CD-ROM Containing the User Documentation
AC-DC Power Adapter
RJ45 Ethernet Cable
EVDO External Antenna
WiFi External Antenna
Quick Start Guide
Dimension and weight:
Dimension: 25x11.5x5.5mm
Weight: 0.22KG
Newsky Tech. Company is a high-tech electronics enterprise engaged in designing, manufacturing and marketing wireless communication products, DVB-C Equipments, and PC TV tuner Series. The unwavering mission of the company has always been to produce market industry-leading products that are the most versatile, user-friendly and cost effective in the industry.
At the primary stage, Newsky is specialized in PC TV Tuner & 56K modem. Comply with development of the technology, our company successfully turn to the production of CDMA/GPRS wireless modem. Now the products line is extended to the following 2 classifications,
GSM/GPRS/EDGE USB wireless modem, 3G HSDPA/HSUPA wireless modem, 3G CDMA/EVDO wireless modem; 3G Wireless Router;
DVB-C Equipments
PC TV Tuner, (Analog/DVB-T/ISDB-T/ATSC PC TV Tuner), Video Capture devices and Video Converter
Newsky has a 4000 square-meter factory with SMT production lines. We have been certified by ISO9001: 2000 Quality Management System. Our products meet CE, FCC and RoHS standard. As soon as the production is finished, our products will be inspected by 22QC inspectors with rigorous tests.
OEM Service Offered, Design Service Offered, Buyer Label Offered.
Our products have been sold in commercial quantities in the following countries:
North America: Canada, Mexico, USA
Latin America (Central & South): Argentina, Bolivia, Brazil, Chile, Peru, etc.
Caribbean: Dominican Rep, Haiti, Puerto Rico, etc.
Middle East/Africa: Egypt, Ghana, Israel, Kenya, Kuwait, Nigeria, Oman, Saudi Arabia, South Africa, Turkey, Yemen, Zimbabwe, etc.
Asia Pacific: Australia, Bangladesh, India, Indonesia, Japan, Malaysia, New Zealand, Philippines, Singapore, South Korea, Sri Lanka, Thailand, etc.
*31 x EU R&TTE Countries: Czech Rep, Denmark, France, Germany, Greece, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, etc.
OUR QUALITY ASSURANCE
Continually expanding our technical ability, our name has become synonymous with quality with most of our customers worldwide. Our management system is more than a set of process, it ensure products quality and on time delivery.
Benefits to our customers:
*More efficient operations
*Process transparency and predictability
*Improved quality of services
*Commitment to process enhancement
