Ht-225D/Ht-75D/Ht-20d Pen Type Concrete Test Hammer

Name: Ht-225D/Ht-75D/Ht-20d Pen Type Concrete Test Hammer
Brand: china-manufacturer-directory.com
SKU: 689572542
Availability: InStock
Rating: 4.6 (36 reviews)

Supplier:	Sino Age Development Technology
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HT-225D/HT-75D/HT-20D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Dimension (Mm):	280X75X60
Port:	Beijing
Delivery:	Within 3 Workdays Upon Receipt of Full Payment

Product Description

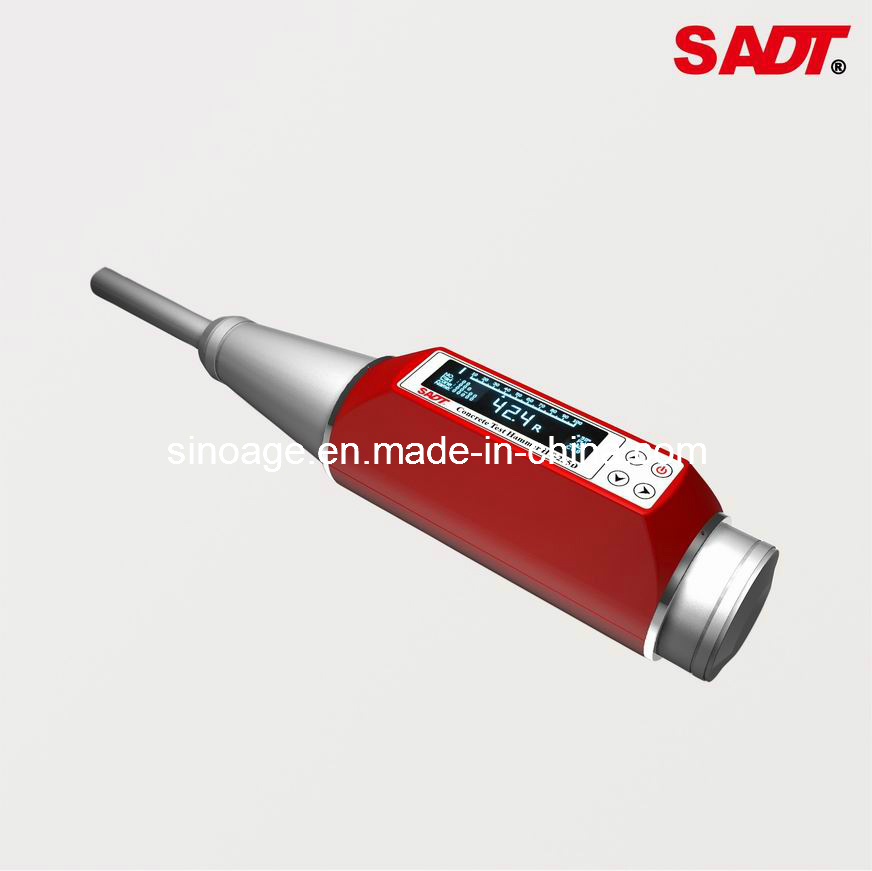

Portable Digital Concrete Test Hammer HT-225D/HT-75D/HT-20D
HT-225D/HT-75D/HT-20D Pen type Concrete Test Hammer

HT-225D concrete test hammer/HT-75D concrete test hammer/HT-20D concrete test hammer is an integrated digital concrete test hammer which combines data processor and concrete test hammer into one unit. It is widely used for non destructive testing quality of concrete testing and building materials testing in finished concrete structure or prefabricated blocks. From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.

KEY FEATURES
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or blue tooth(optional)
Dual display for analogue ruler and digital value

Model	HT-225D	HT-75D	HT-20D
Display	OLED digital
Measuring range	10-100N/mm²		1-25N/mm²
Accuracy	±0.1R
Impact energy	0.225kgm (2.207Nm)for testing ordinary building and bridge construction	0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick	0.020kgm (0.196Nm)for testing mortal or clay of products
Communication	USB2.0 or Bluetooth(optional)
Repeatability	±1R
Storage	data for 4000 concrete structures
Operating temperature	40º~60ºC
Power supply	3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm)	280x75x60
Net weight	1.1kg
