Product Specifications
| Prod Model: |
HVS-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Beijing |
| Delivery: |
Within 10 Workdays Upon Receipt of Full Payment |
| Standard: |
ASTM |
| Application: |
Metal |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HV |
Product Description

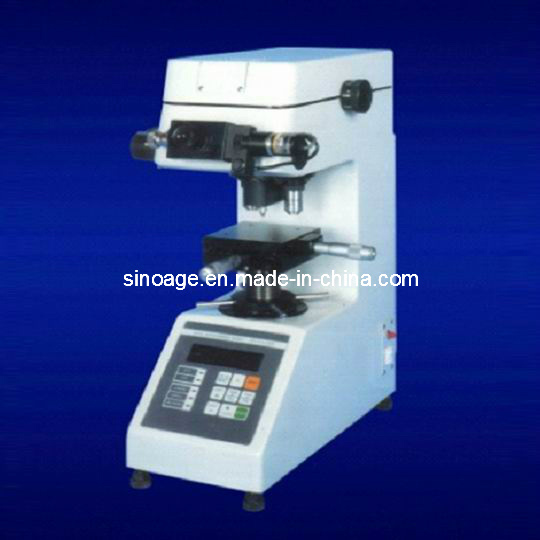

Vickers Bench Hardness Tester HVS-1000
HVS-1000 Digital Vickers bench Hardness Tester
HVS-1000 Vickers Hardness Tester, Hardness meter, Durometer, Sclerometer
HVS-1000 Micro Vickers Hardness Tester
HVS-1000 Digital Micro Vickers Hardness Tester
Bench Digital Hardness Tester
Bench Hardness Tester
Vickers Hardness Tester
Micro Vickers Hardness Tester
Digital Hardness Tester
Metal Hardness Tester
Hardness Tester, Hardness meter, Durometer, Sclerometer
The micro-Vickers hardness tester HVS1000 is especially well suited for high precision hardness testing of small and/or thin specimens such as sheet, foil, coatings, ceramic products, and hardened layers. To ensure a satisfactory indentation, the HVS1000 features automatic loading and unloading operations, a very precise loading mechanism and a robust lever system. The micro-computer controlled system ensures an absolutely precise hardness measurement with adjustable dwell time.
Applications:
Easy operating system
Fully automatic load control
Hardness computation and statistics
Integral priner
Two optical paths
XY stage with minimum reading of 0.01mm
Specifications:
Test force (N): 0.098N (10gf), 0.246N (25gf), 0.490N (50gf), 0.980N (100gf), 1.961N (200gf),
2.941N (300gf), 4.903N (500gf), 9.806N (1000gf)
Test force selection: Dial
Loading accuarcy: +/-1%
Loading control: Fully automatic (loading/dwell/unloading)
Loading duration: 5 to 60 sec(5 sec increments)
Microscope
Objectives: 10x, 40x
Total magnification: 100x (observation), 400x (measurement)
Measuring range: 300x300um
Resolution: 0.025um
XY stage
Dimensions: 100x100mm
Travel range: 25x25mm
Resolution: 0.01mm (micrometers)
Specimen:
Maximum height: 65mm (2.55")
Maximum depth: 85mm (3.35") from the center of indenter
Optical path: 2-way switchable (microscope/photographic device)
Display
Hardness value: 5-digit
Diagonal length: 4-digit (D1, D2)
Output: Integral printer/including statistics program
Power supply: 220v AC (+/-10%) 50/60Hz
Power consumption: 20VA
Dimensions: 290x405x480mm
Mass: 25kg
