Product Specifications
| Prod Model: |
1575mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Engineers Will Be Sent to Install |
| Plant Design: |
Free |
| Test Run: |
Free |
| Training: |
Free |
| Type: |
Paperboard |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thick Paper |
| Condition: |
New |
| Certification: |
ISO |
Product Description
contact & negotiate!!! John:8615638823327
company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company

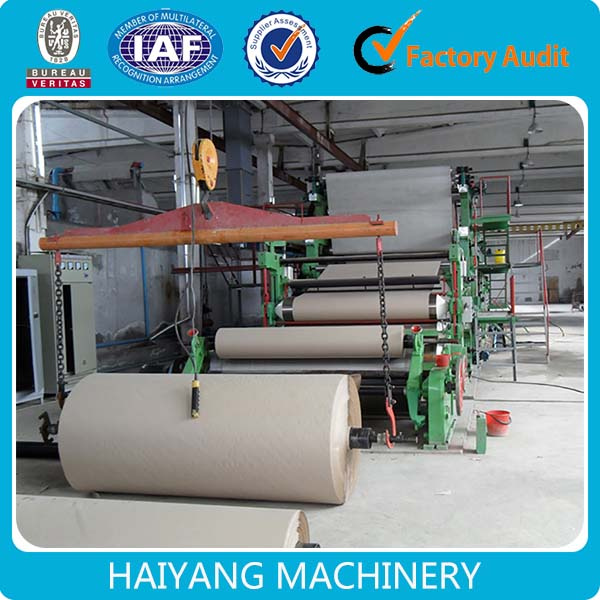

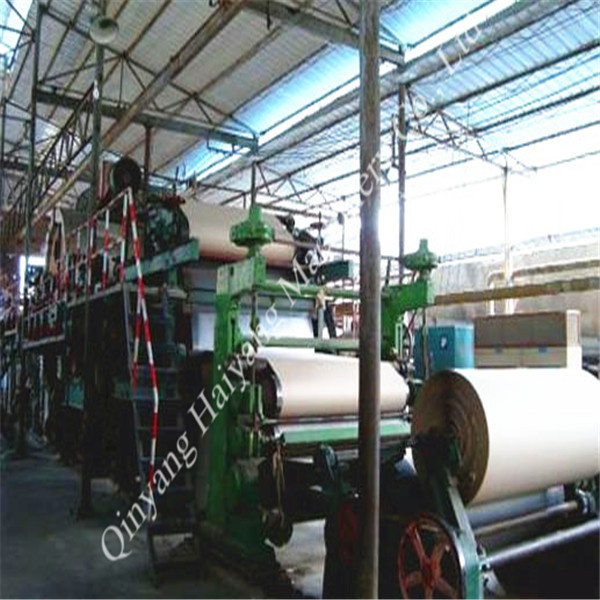

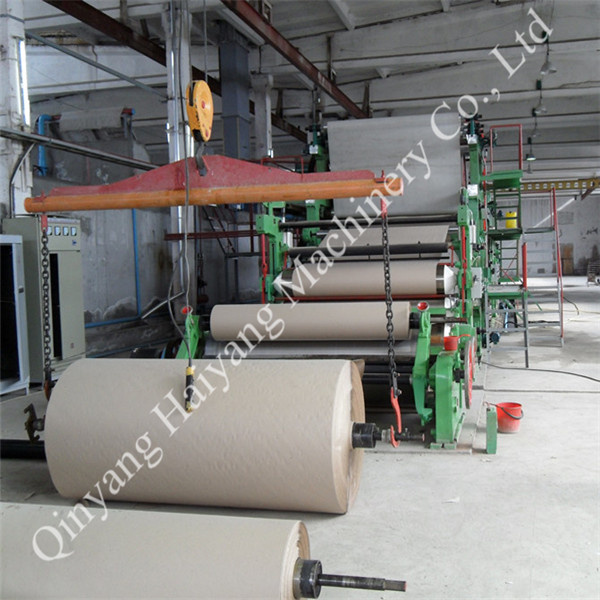

1575mm double-dryer can and double-cylinder mould kraft paper machine
I. Technical parameter:
1. Raw material: Recycled paper(newspaper, used box);
2. Output paper style: Corrugating paper;
3. Output paper weight: 110-240G/M2;
4. Net paper width: 1600mm;
5. Capacity: 10T/D;
6. Width of cylinder mould: 1950 mm;
7. Rail gauge: 2400 mm;
8. Drive way: AC inverter speed, section drive;
II. Structure and characteristic of main part:
1. Cylinder section: 1500mm×1950mm stainless steel cylinder mould 2 sets, 450mm×1950mm couch roll 2 set, 400×1950mm reverse roll 1set, coated by rubber, rubber shore hardness 38±2.
2. Press section: 500mm×1950mm marble roll 1 set, 450mm×1950mm rubber roll 1 set, coated by rubber, rubber shore hardness 90±2.
3. Dryer section: 2500mm×1950mm cast iron dryer can 2 set, 500mm×1950mm touch roll 1 set, coated by rubber, rubber shore hardness 90, ±2.
4. Drive way: AC inverter speed, section drive.
5. Pneumatic compression device.
| NO. | Item | Qty(set) |
| 1 | 1575mm Kraft paper machine | 1 |
| 2 | exhaust hood of dryer can(double layer) | 1 |
| 3 | Φ700mm axial-flow ventilator | 1 |
| 4 | 15 type roots vacuum pump | 1 |
| 5 | 1575mm winding machine | 1 |
| 6 | 1575mm calendar | 1 |
| 7 | 1575mm rewinding machine | 1 |
| 8 | 5 m3high consistency hydrapulper | 1 |
| 9 | 2 m2high frequency vibrating screen | 1 |
| 10 | 8 m2cylinder pulp thickner | 1 |
| 11 | 0.6 m2pressure screen | 1 |
| 12 | Φ380mm double disc pulp refiner | 2 |
| 13 | 600 low consistency sand remover | 1 |
| 14 | Φ700mm thruster | 4 |
| 15 | 4inch pulp pump | 4 |
| 16 | 6inch pulp pump | 4 |
| 17 | 2ton boiler(burn coal) | 1 |

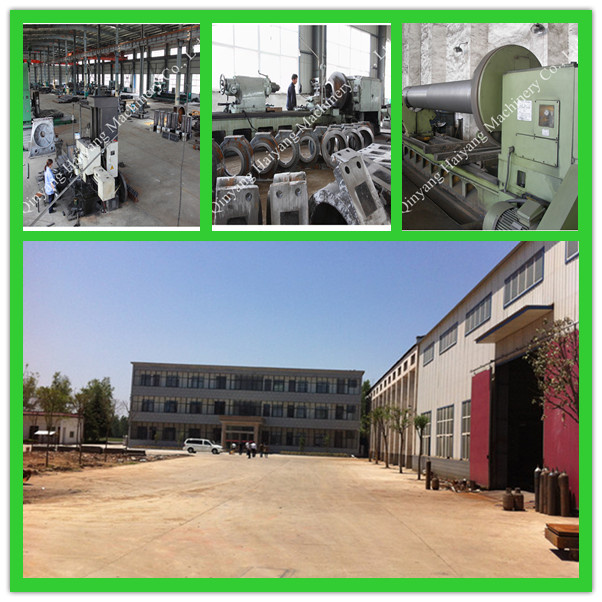

Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
