I. Technical parameter
1. Raw materials: recycled paper
2. Output paper:corrugated paper
3. Output paper weight: 115-170gm2
4. Capacity: 70 TD
5. Net paper width: 2400mm
6. Cylinder mold width: 2950mm
7. Working speed: 130-180mmin
8. Designing speed: 200m/min
9. Rail gauge: 3400mm
10. Drive way: A/C converter speed controlling, sectional drive.
II.The main structure with spec
1. Cylinder mold part
3 pcs of Φ1500mm×2950mm×3400mm stainless steel cylinder mold, 4 pcs of Φ450mm×2950mm×3400mm couch roll, including 1 pc of returning roll, rubber shore hardness 38ºC±2, with pneumatic pressure device. Pulp feeding mode: multi-pipe feeding by stainless steel step diffusion pipes. ,
2. Squeeze part
2 sets of Φ400mm×2950mm×3400mm water squeezing rolls, rubber shore hardness 90ºC±2, with pneumatic pressure device
3. Pre-press part
Top roll: 1 pc of Φ550mm×2950mm×3400mm natural marble roll;
Bottom rolls: 1 pc of Φ500mm×2950mm×3400mm rubber roll, rubber shore hardness 95ºC±2, with pneumatic pressure device.
4. Press part
Top roll: 2 pcs of Φ850mm×2950mm×3400mm natural marble roll;
Bottom rolls: 2 pcs of Φ800mm×2950mm×3400mm rubber roll, rubber shore hardness 97ºC±2, with pneumatic pressure device.
:Φ850mm×2950mm×3400mm2, Φ800mm×2950mm×3400mm2,97ºC±2, .
5. Dryer part

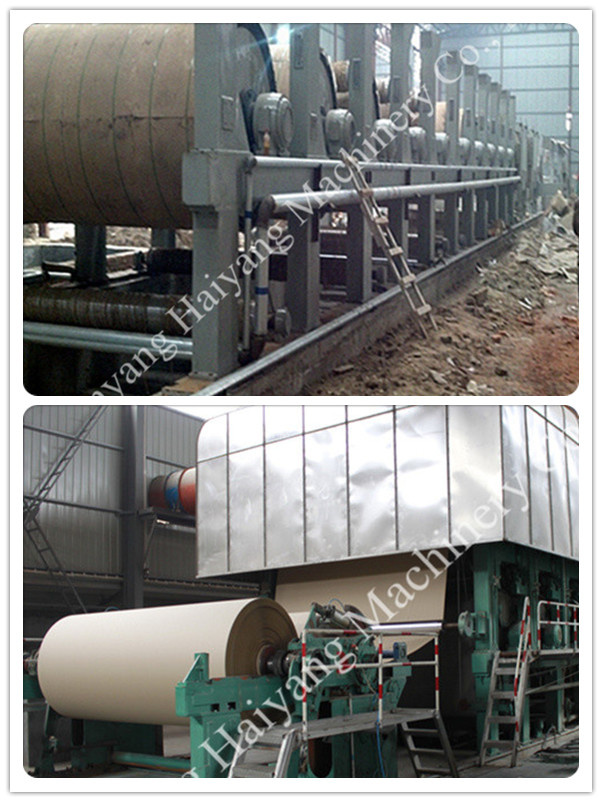

28 pcs of Φ1500mm×2950mm×3400mm alloy dryer cylinder (1st and 2nd Chrome coated.), with 28 sets of blade. The dryer cylinders arrayed in 18 +sizing machine+10
6. Sizing part: top roll:Φ900mm×2950mm×3400mm imitation stone roll;bottom roll:Φ905mm×2950mm×3400mm rubber roll,rubber shore hardness 97ºC±2
7. Winding part: 1 set of 2400mm horizontal pneumatic winding machine with winding cylinder Φ1100mm×2950mm×3400mm.
8. Rewinding part: 1 set of 2400mm high duty frame-type rewinding machine.
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
