Product Specifications
| Prod Model: |
2880mm |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Lavatory Paper |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thin Paper |
| Certification: |
UL |
| Condition: |
New |
Product Description
company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
contact & negotiate!!!
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation

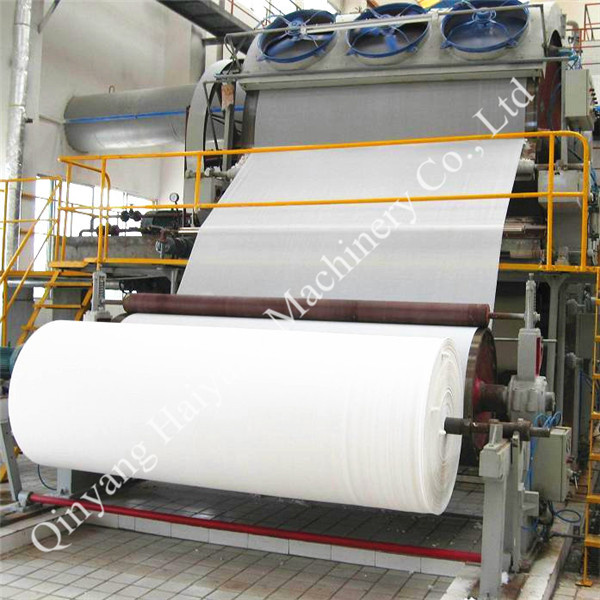

2880mm 12-16T/D high speed toilet paper making machine
I. Technical parameters
| 1. Raw material | white waste paper, wood pulp |
| 2. Output paper | tissue paper and poster paper |
| 3. Paper weight | 17-40g/m2 |
| 4. Net paper width | 2880mm |
| 5. Wire width | 3300mm |
| 6. Capacity | 12-16 T/D |
| 7. Working speed | 100-180m/min |
| 8. Design speed | 200m/min |
| 9. Rail gauge | 3900mm |
| 10. Drive way | Alternating current frequency conversion adjustable speed, sectional drive |
II. Main structure and characteristic of main part
1. Cylinder section: Φ1800mm×3300mm stainless-steel plate cylinder mould 1set. Φ600mm×3300mm couch roll 1 set, coated by rubber, rubber shore hardness 38ºC±2.
2. Dryer section: Φ3000mm×3300mm alloy cylinder 1 set, with double-deck breath exhaust hood, Φ700mm×3300mm touch roll 1 set, rubber shore hardness 95ºC±2, pneumatic pressure device, with pneumatic blade 2 sets.
3. Winding section: Φ1000mm×3000mm reeling sweat cylinder 1set, winding paper on sweat cylinder.
4. Drive & control section: Alternating current frequency conversion adjustable speed, sectional drive
III. Main equipment
| NO. | Equipment | Qty(set) |
| 1 | 2880mm high speed toilet paper machine | 1 |
| 2 | Exhaust hood | 1 |
| 3 | Φ1000mm axial-flow ventilator | 1 |
| 4 | Type 15 roots vacuum pump | 1 |
| 5 | Suction box | 3 |
| 6 | Moving water spray | 2 |
| 7 | Air pump | 1 |
| 8 | Air tank | 1 |
| 9 | Frequency conversion controlling cabinet | 1 |
| 10 | Working table | 1 |
| 11 | 2880mm automatic rewinding, perforating and embossing machine | 1 |
| 12 | Φ450 cutting machine | 1 |
| 13 | Plastic bag sealing machine | 1 |
| 14 | Electrical control cabinet | 8 |
IV. Pulp making equipment
| NO. | Equipment | Qty(set) |
| 1 | 10m conveyor | 1 |
| 2 | 8m3 high consistency hydrapulper | 1 |
| 3 | 1.2m2 pressure screen | 1 |
| 4 | Φ700mm thruster | 6 |
| 5 | 606 desander (12pcs) | 12 |
| 6 | -150 pulp pump | 6 |
| 7 | -150 water pump | 2 |
| 8 | -200 water pump | 2 |
| 9 | Φ380mm refiner | 2 |
| 10 | Pulp concentration controller | 1 |
| 11 | 2T boiler | 1 |
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
