Hydraulic Tire Shaping and Curing Press Lly-B1220 X 2 (48")

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 245000-295000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	LLY-B1220 x 2(48")
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Tire Shaping and Curing Press
Max. Mould Closing Force:	1715kn
Mould Adjusting Height:	200~490mm
Internal Diameter Of Shield:	1220mm
Applicable Bead Specification:	13"-20"
Weight:	50~300 tons, 23t
Hydraulic Key Components:	Import
Motor:	ABB
PCI:	with PCI
Warranty:	One Year, 1 Year
Certification:	CE, ISO

Product Description

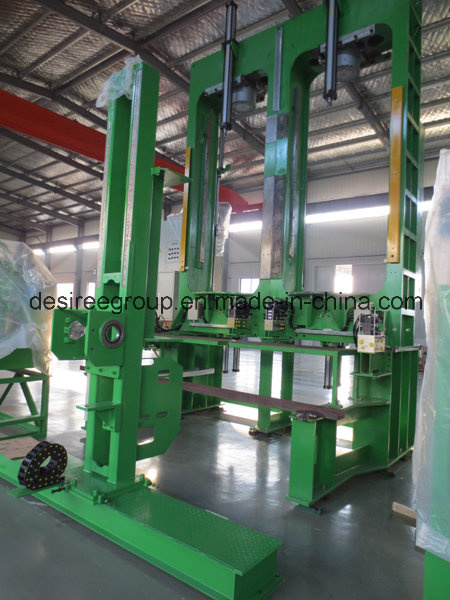

Hydraulic Tire Shaping and Curing Press
Function:
This press is used for vulcanization of high grade semi-steel passenger car/light truck tire with double half-moulds and segmented moulds, which can meet tire loading, shaping, vulcanizing and unloading automatically. This press can be cooled automatically with post cure inflator.

Features:
1. Frame mechanism enable separate vulcanization for the left and right mould.
2. Overhead type single-driving cylinders provide pressure to make even force and effective protection of segmented mould.
3. Bracing sidewall type tire holder prevents deformation of tire blank.
4. Tire grabbing and extracting mechanism adopts linear guide with stable performance.
5. The cylinders adopt imported world-famous brand products,which can work safely, Parker type sealing.

Our Service:

1. One year warranty.
2. Engineers available to service machinery overseas.

3. If there is problem, we will give feedback within 24hours.

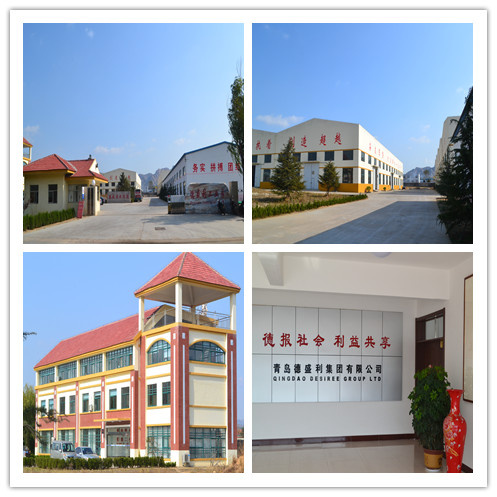

Factory Show:

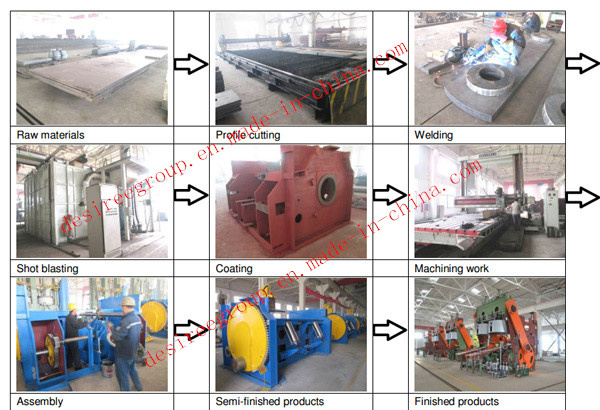

Workshop Show:

Certificate Show:

If you have any question about our products, please feel free to contact with me.

Hydraulic Tire Shaping and Curing Press Model No.	LLY-B1220×2(48'')	LLY-B1300×2(51'')	LLY-B1620×2(65.5'')
Mould opening way	Vertical lifting	Vertical lifting	Vertical lifting
Center mechanism mode	B.AB.RIB	B.AB.RIB	B.AB.RIB
Mould heating	Heating by platen	Heating by platen	Heating by platen
Mould quantity	2	2	2
Max mould closing force(kN)	1715	1810	3920
Mould adjusting height (mm)	200-490	250-540	400-650
Internal diameter of shield (mm)	1220	1300	1620
Available bead specification	13''-20''	14''-19.5''	20''-25''
Weight	23t	25t	48t

About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.
