Jiangsu Bronx Machinery Co., Ltd. >> Hydraulic Upper Roller Universal Plate Rolling Machine (large size 3)

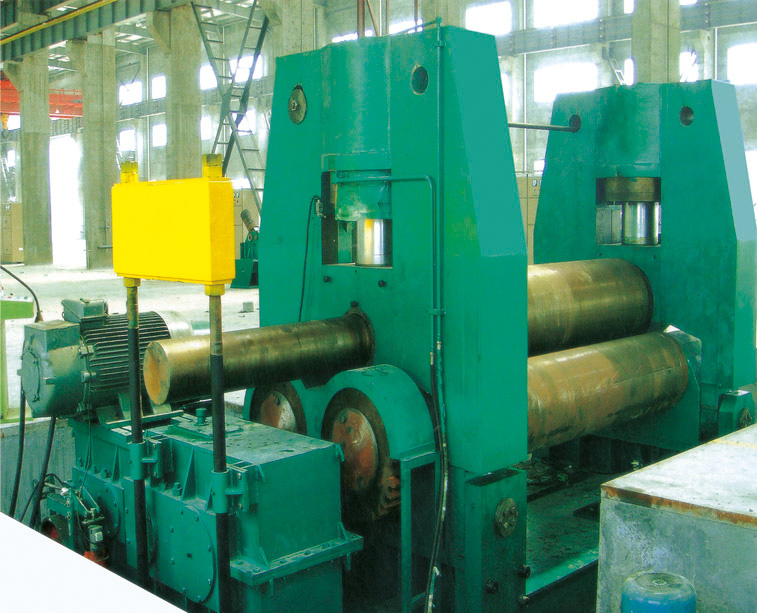

Hydraulic Upper Roller Universal Plate Rolling Machine (large size 3)

Name: Hydraulic Upper Roller Universal Plate Rolling Machine (large size 3)
Brand: china-manufacturer-directory.com
SKU: 619286094
Availability: InStock
Rating: 4.5 (58 reviews)

Supplier:	Jiangsu Bronx Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1 /Piece
Quantity::

Product Specifications

Prod Model:	large size 3
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware
Type:	Pipe and Tube Bending Machine

Product Description

Precision of the superior products Unique crooked craft, the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control. Man-machine dialogue controls the high-efficient intelligence of interfaces to operate Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient! Abundant crooked form Have rolls of form to make O type, U type, many sections of R, etc. Different forms. Choice of many models According to the use or users' enquiry, count and show the model economily, TC numerical control model chooses.

Specification	Max. thickness (mm)	max.width (mm)	Yield limit (MPa)	Speed (m/min)	Min. Diameter (mm)	Upper roller diameter(mm)	Lower roller diameter(mm)	Lower roller center distance (mm)	Main motor power (kw)	Hydraulic motor power (kw)
W11-30×2000	30	2000	245	4	1200	360	290	480	22	7.5
W11-25×2500	25	2500	245	4	1200	370	300	480	22	7.5
W11-30×2500	30	2500	245	4	1200	420	360	550	30	11
W11-25×3000	25	3000	245	4	1200	430	370	550	30	11
W11-30×3000	30	3000	245	4	1200	450	390	600	30	11
W11-40×2500	40	2500	245	3.5	1400	500	400	600	37	15
W11-40×3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11-50×3000	50	3000	245	3.5	2000	580	480	750	55	22
W11-60×3000	60	3000	245	3.5	2400	660	560	800	75	30
W11-70×3000	70	3000	245	3.5	2800	710	620	850	90	37
W11-80×3000	80	3000	245	3.5	3200	770	680	900	90	37
W11-90×3000	90	3000	245	3.5	3600	820	730	950	110	45
W11-100×3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11-110×3000	110	3000	245	3.5	4400	900	810	1080	132	55
W11-120×3000	120	3000	245	3.5	4800	950	860	1160	132	55

Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.

This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
