Product Specifications
| Prod Model: |
FT24C04A/08A/16A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial Operating Temperature: |
-40 to 85 |
| Storage Temperature: |
-50 to 125 |
| Input Voltage On Any Pin Relative To Gro: |
-0.3 to Vcc + 0.3V |
| Maximum Voltage: |
8V |
| ESD Protection On All Pins: |
>2000V |
| Interface: |
Serial Peripheral Interface (Spi) Compatible |
| Supports: |
Supports Spi Modes 0 (0,0) and 3 (1,1) |
| Low Voltage And Low Power Operations: |
Low Voltage and Low Power Operations |
| Partial Page Write Operation: |
Partial Page Write Operation Allowed |
| Self-Timed Programming Cycle: |
Self-Timed Programming Cycle (5 Ms Max) |
| Type: |
Triode |
Product Description
FT24C04A/08A/16A
FEATURES
Low voltage and low power operations:
FT24C04A/08A/16A: V
CC
= 1.8V to 5.5V
Maximum Standby current \< 1¦ÌA (typically 0.02¦ÌA and 0.06¦ÌA
@
1.8V and 5.5V respectively).
16 bytes page write mode.
Partial page write operation allowed.
Internally organized: 512 x 8 (4K), 1024 x 8 (8K), 2048 x 8 (16K).
Standard 2-wire bi-directional serial interface.
Schmitt trigger, filtered inputs for noise protection.
Self-timed Write Cycle (5ms maximum).
1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility.
Automatic erase before write operation.
Write protect pin for hardware data protection.
High reliability: typically 1, 000,000 cycles endurance.
100 years data retention.
Industrial temperature range (-40
o
C to 85
o
C).
Standard 8-lead DIP/SOP/MSOP/TSSOP/DFN and 5-lead SOT-23/TSOT-23 Pb-free packages.
DESCRIPTION
The FT24C04A/08A/16A series are 4,096/8,192/16,384 bits of serial Electrical Erasable and
Programmable Read Only Memory, commonly known as EEPROM. They are organized as
512/1,024/2,048 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced
CMOS process for low power and low voltage applications. These devices are available in standard 8-lead
DIP, 8-lead SOP, 8-lead TSSOP, 8-lead DFN, 8-lead MSOP, and 5-lead SOT-23/TSOT-23
packages. A
standard 2-wire serial interface is used to address all read and write functions. Our extended V
CC
range
(1.8V to 5.5V)
devices enables wide spectrum of applications.
|

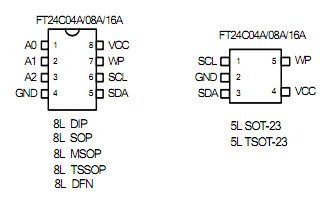

Pin Name |
Pin Function |
|
CS |
Chip Select |
|
SCL |
Serial Clock |
